Extron electronics CCD 220 Installation Manual page 7

Cable Cubby Drawer CCD 220 and CCD 320
NOTE: The diagram below is not drawn to scale.
Dimensions and templates are available online at
www.extron.com.
TABLE
EDGE
7
•
Installation Guide (Continued)

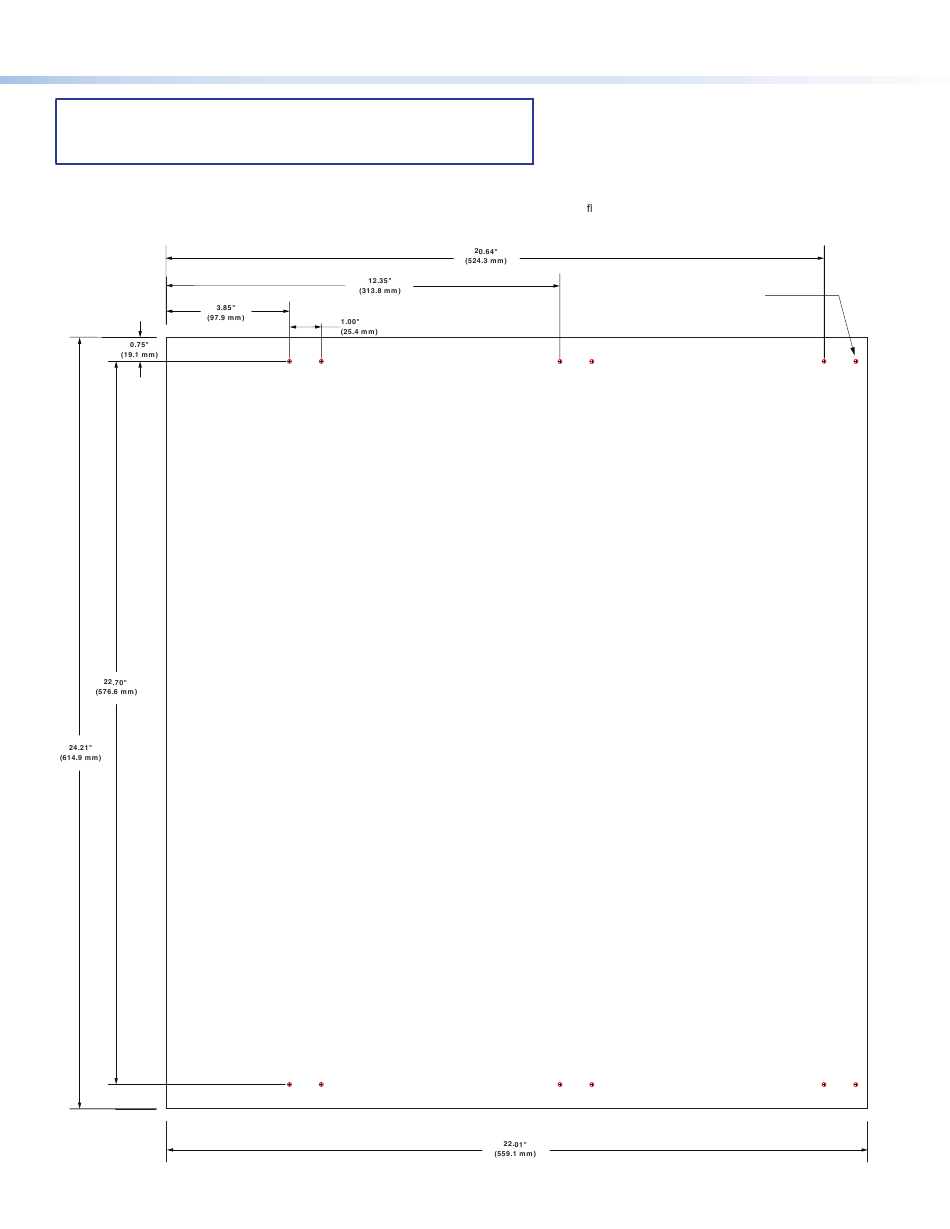

CCD 320
Mounting Template
Instructions
1. Align the template so that the "Table Edge"of the template
is ushed with the edge of the mounting surface.
2. Mark the center of the holes and drill pilot holes 3/32
1/2 (12.7 mm) inch deep.
"
Pilot drill 3/32" (2.4 mm) diameter holes,
1/2" (12.7 mm) inch deep
(12 places).
(2.38 mm) diameter,
"
