SMB 110 Series • Installation Guide

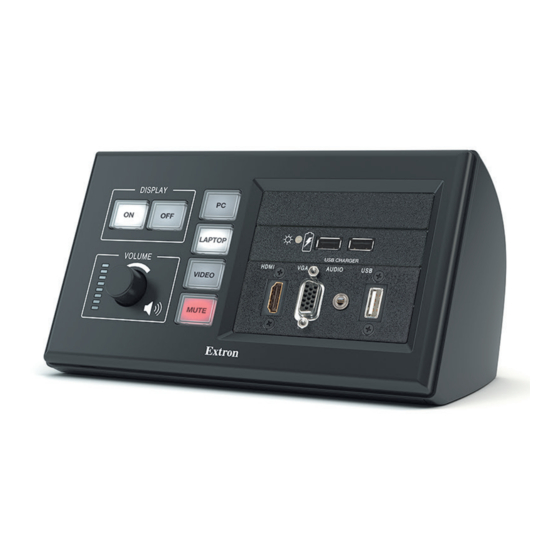

The Extron SMB 110 Series Surface Mount Boxes are
designed for mounting various Extron architectural
products, including standard gang-size plates, AAP
Mounting Frames, and MediaLink
SMB 110 Series is available in one- to five-gang sizes.
This guide provides information for an experienced
installer.
NOTE:
Ensure that the installation meets the national, local, and
state regulatory requirements, including building, electrical,
and safety codes, and ADA accessibility requirements.
The SMB 110 Series enclosure can be mounted to provide access for under-table cabling or rear
cabling. Mounting the enclosure is the same for both access methods.
Locate a Suitable Mounting Location, Mark and Drill Pilot Holes
The mounting hole pattern for the SMB 110 enclosures fit US standard gang-sized devices.
Find a suitable location and position the enclosure.
1.
Mark pilot hole locations for the desired mounting holes.
2.
For under-table cable access, mark the bottom cutout locations.
3.
Remove the enclosure.
4.
Drill 3/32 inch (2.4 mm) pilot holes for the mounting holes marked in step 2.
5.
Mount the SMB Enclosure
For through-table cable access, cut the cable access holes marked in step 3 above.
1.
Fasten the enclosure to the table with the supplied #8 wood screws.
2.
rd mounting, route the
m under the table.
For through-table cable access see
Through-table Cable Access
Route cables from under the table as necessary.
1.
If necessary, the bottom plate of each SMB enclosure includes a #6-32 stud insert and nut for grounding.
2.
Controllers. The
®
Moun Mounting Screws
#8 Wo #8 Wood (2)
Through-table Cable Access
For standard mounting, route the
cables from under the table.
Alternate
Mounting Hole
Top View - 3 Gang
Rear Cabling
below. For rear cabling see
Moun Mounting Screws
#8 Wo #8 Wood (2)
Mounting Holes (2)
Grounding
Stud
on page 2
1
