Cable Cubby Drawer CCD 220 and CCD 320 • Installation Guide (Continued)
Preparing the Table
Determine the best location to install the Cable Cubby Drawer
… Ensure that the location where the Cable Cubby Drawer will be installed is convenient for the user.
… Ensure that there is ample space under the table to allow for cable management. Reposition the cable track if
space is limited (see
12.21"
(310.4 mm)

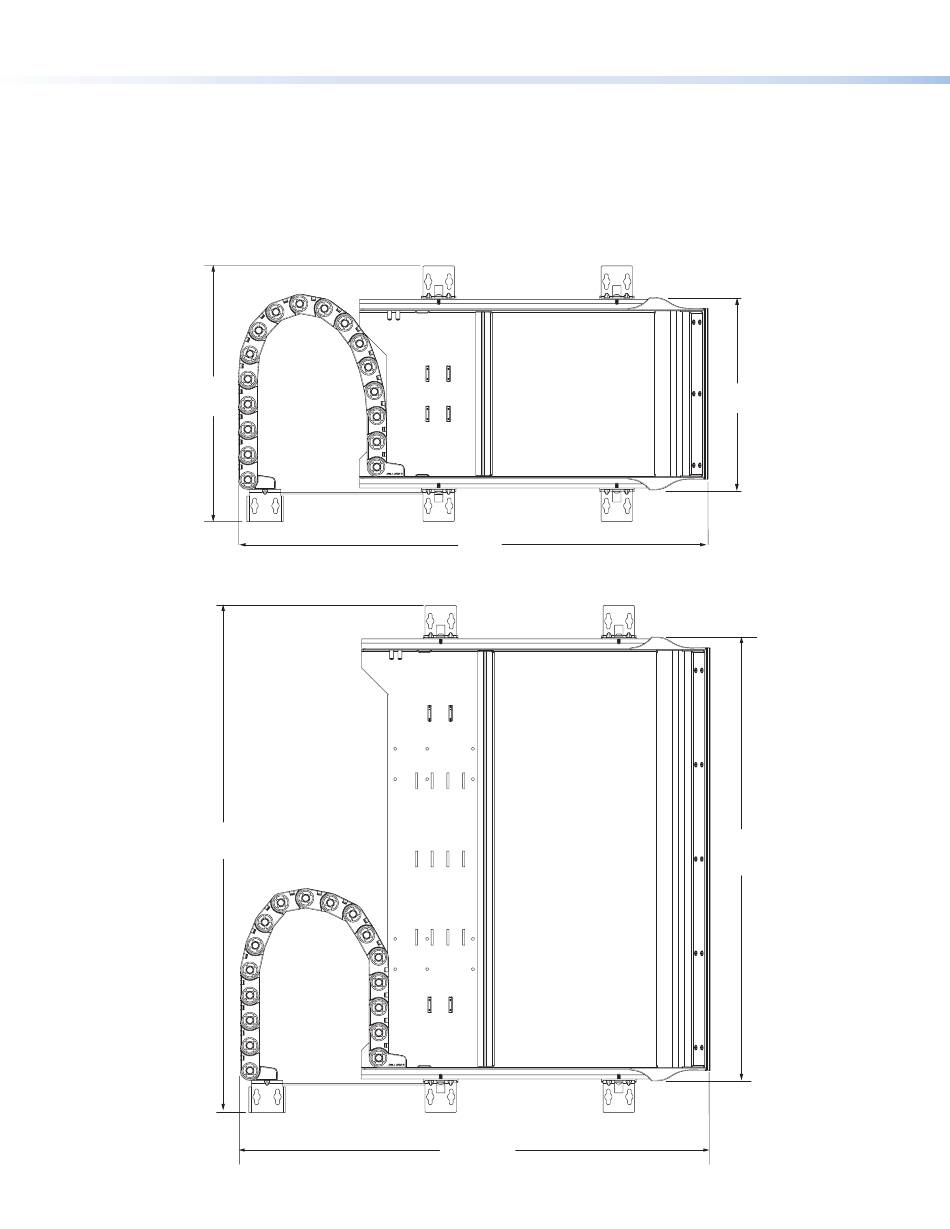

CCD 220 Top View
24.21"
(614.9 mm)
CCD 320 Top View
3
Reposition Cable Track on the next page for instructions).
