Cable Cubby Drawer CCD 220 and CCD 320

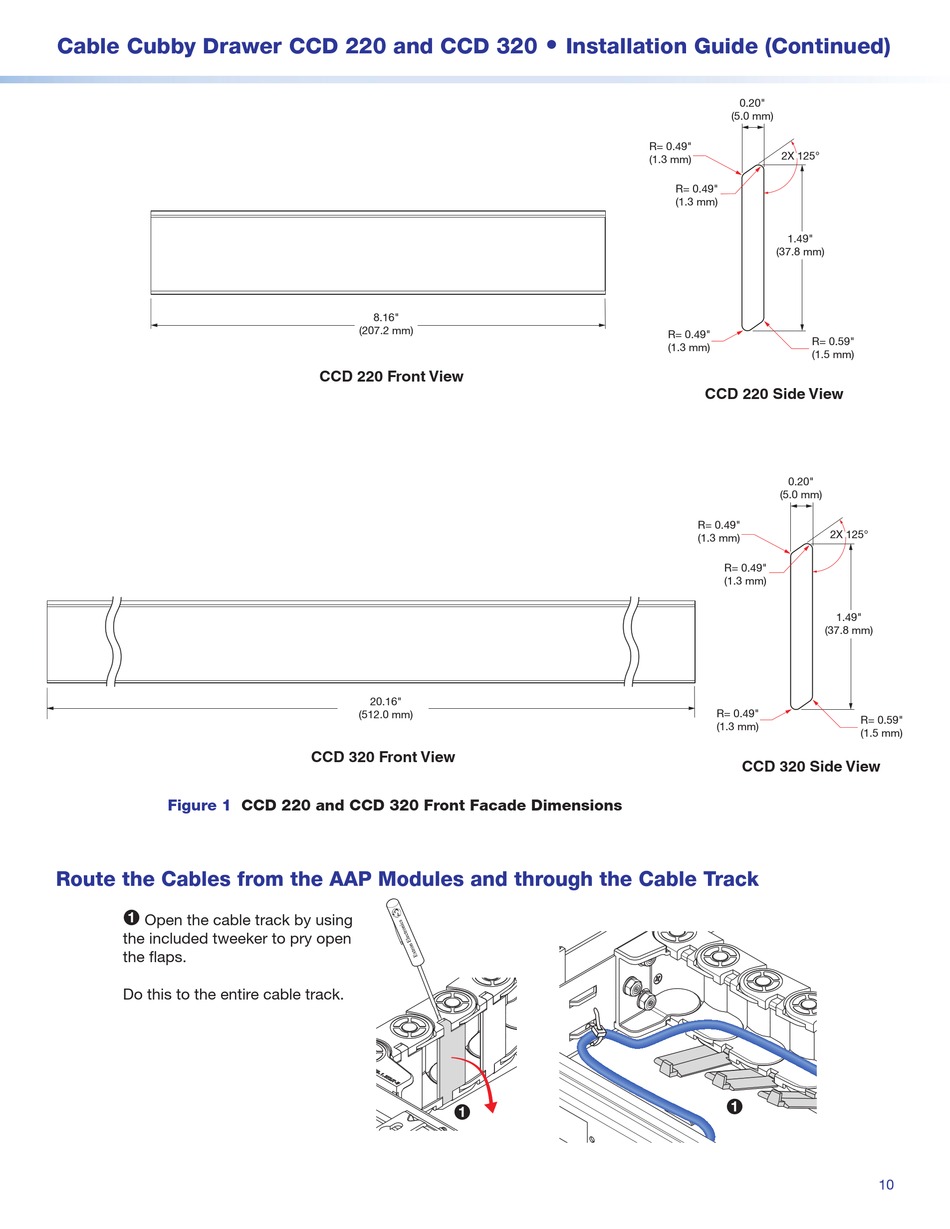

Figure 1
Route the Cables from the AAP Modules and through the Cable Track
1 Open the cable track by using
the included tweeker to pry open
the aps.
Do this to the entire cable track.
8.16"
(207.2 mm)
CCD 220 Front View
20.16"
(512.0 mm)
CCD 320 Front View
CCD 220 and CCD 320 Front Facade Dimensions
•
Installation Guide (Continued)
1
0.20"
(5.0 mm)
R= 0.49"
2X 125°
(1.3 mm)
R= 0.49"
(1.3 mm)
1.49"
(37.8 mm)
R= 0.49"
R= 0.59"
(1.3 mm)
(1.5 mm)
CCD 220 Side View
0.20"
(5.0 mm)
R= 0.49"
(1.3 mm)
R= 0.49"
(1.3 mm)
(37.8 mm)
R= 0.49"
(1.3 mm)
CCD 320 Side View
1
2X 125°
1.49"
R= 0.59"
(1.5 mm)
