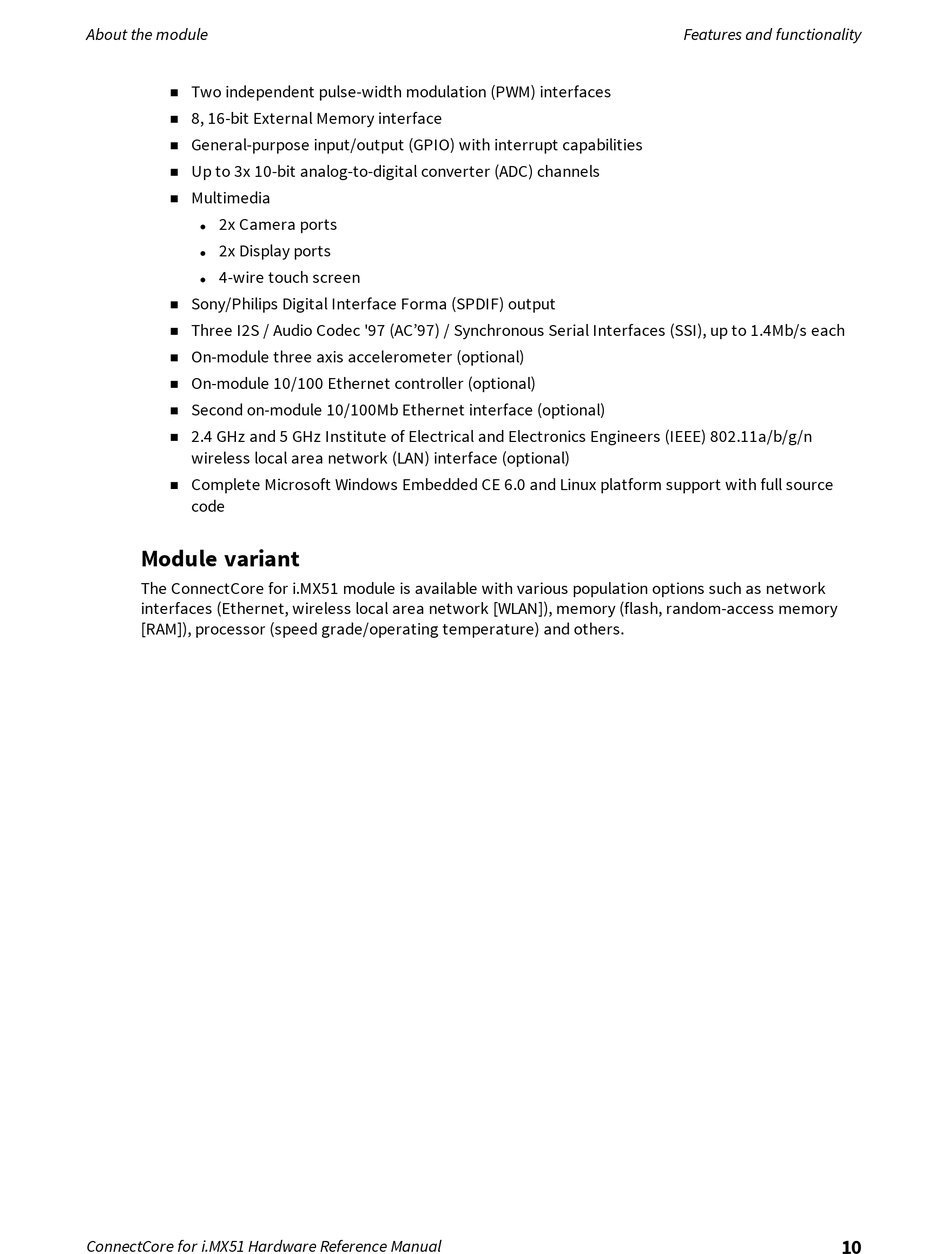

About the module
Two independent pulse-width modulation (PWM) interfaces
n
8, 16-bit External Memory interface
n
General-purpose input/output (GPIO) with interrupt capabilities
n
Up to 3x 10-bit analog-to-digital converter (ADC) channels
n
Multimedia
n
2x Camera ports
l
2x Display ports
l
4-wire touch screen
l
Sony/Philips Digital Interface Forma (SPDIF) output
n
Three I2S / Audio Codec '97 (AC'97) / Synchronous Serial Interfaces (SSI), up to 1.4Mb/s each
n
On-module three axis accelerometer (optional)
n
On-module 10/100 Ethernet controller (optional)
n
Second on-module 10/100Mb Ethernet interface (optional)
n
2.4 GHz and 5 GHz Institute of Electrical and Electronics Engineers (IEEE) 802.11a/b/g/n
n
wireless local area network (LAN) interface (optional)
Complete Microsoft Windows Embedded CE 6.0 and Linux platform support with full source
n
code

Module variant

The ConnectCore for i.MX51 module is available with various population options such as network
interfaces (Ethernet, wireless local area network [WLAN]), memory (flash, random-access memory
[RAM]), processor (speed grade/operating temperature) and others.
