About the module
Other features
n
Supports rotating and mirroring simultaneously.
l
Built-in de-ringing filter
l
Built-in de-blocking filter for MPEG-2/MPEG-4/Divx
l
Simultaneous multi-stream and multi-standard processing capability
l
Robust error detection
l

Image Processing Unit (IPU)

Connect relevant devices - cameras, displays, graphics accelerators, TV encoders and decoders
n
Related image processing and manipulation: sensor image signal processing, display
n
processing, image conversions, and so forth.
Synchronization and control capabilities (for example, to avoid tearing artifacts)
n

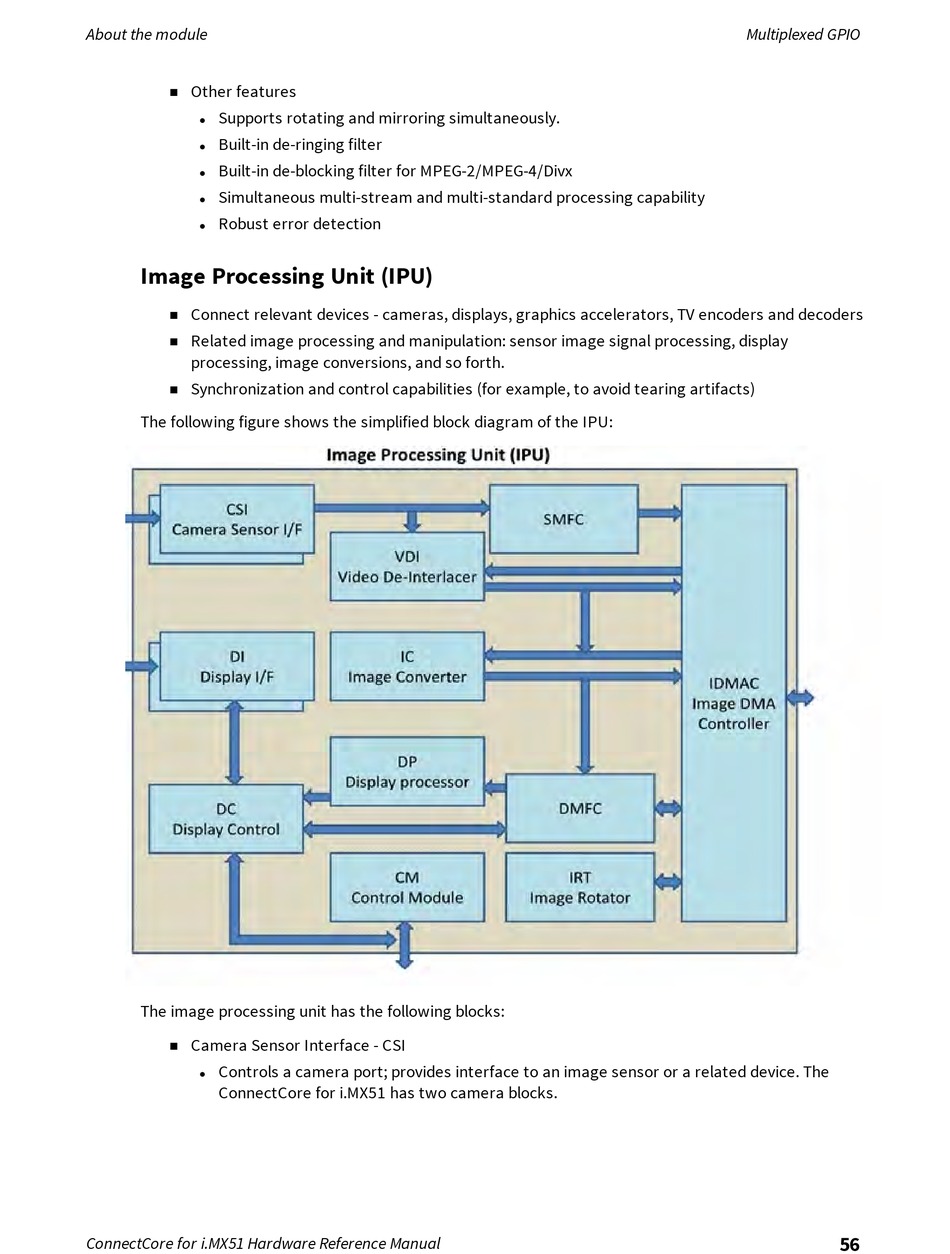

The following figure shows the simplified block diagram of the IPU:
The image processing unit has the following blocks:
Camera Sensor Interface - CSI
n
Controls a camera port; provides interface to an image sensor or a related device. The
l
ConnectCore for i.MX51 has two camera blocks.
