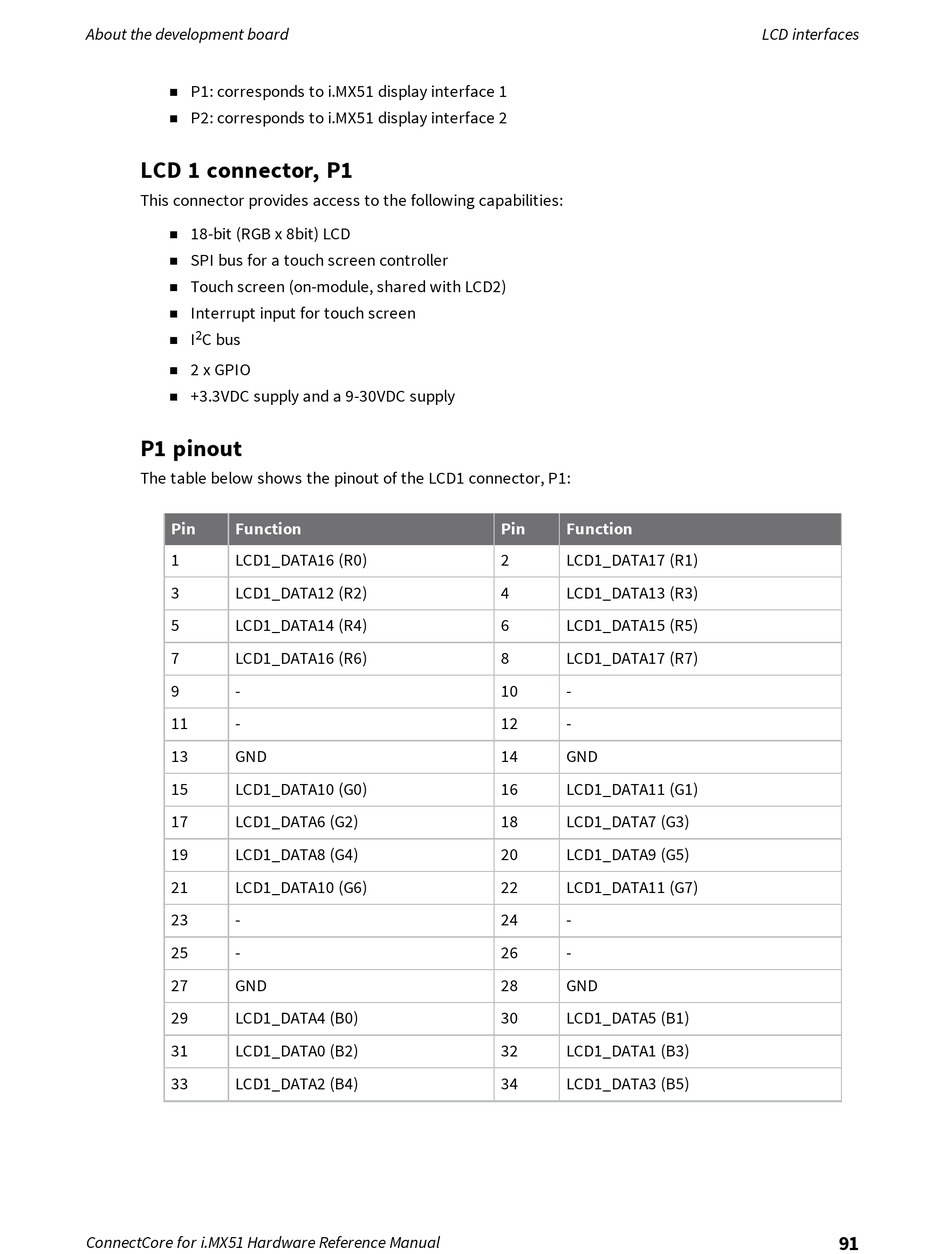

About the development board
P1: corresponds to i.MX51 display interface 1
n
P2: corresponds to i.MX51 display interface 2
n

LCD 1 connector, P1

This connector provides access to the following capabilities:
18-bit (RGB x 8bit) LCD
n
SPI bus for a touch screen controller
n
Touch screen (on-module, shared with LCD2)
n
Interrupt input for touch screen
n
2
I C bus
n
2 x GPIO
n
+3.3VDC supply and a 9-30VDC supply
n

P1 pinout

The table below shows the pinout of the LCD1 connector, P1:
Pin Function
1 LCD1_DATA16 (R0)
3 LCD1_DATA12 (R2)
5 LCD1_DATA14 (R4)
7 LCD1_DATA16 (R6)
9 -
11 -
13 GND
15 LCD1_DATA10 (G0)
17 LCD1_DATA6 (G2)
19 LCD1_DATA8 (G4)
21 LCD1_DATA10 (G6)
23 -
25 -
27 GND
29 LCD1_DATA4 (B0)
31 LCD1_DATA0 (B2)
33 LCD1_DATA2 (B4)
ConnectCore for i.MX51 Hardware Reference Manual
Pin Function
2 LCD1_DATA17 (R1)
4 LCD1_DATA13 (R3)
6 LCD1_DATA15 (R5)
8 LCD1_DATA17 (R7)
10 -
12 -
14 GND
16 LCD1_DATA11 (G1)
18 LCD1_DATA7 (G3)
20 LCD1_DATA9 (G5)
22 LCD1_DATA11 (G7)
24 -
26 -
28 GND
30 LCD1_DATA5 (B1)
32 LCD1_DATA1 (B3)
34 LCD1_DATA3 (B5)
LCD interfaces
