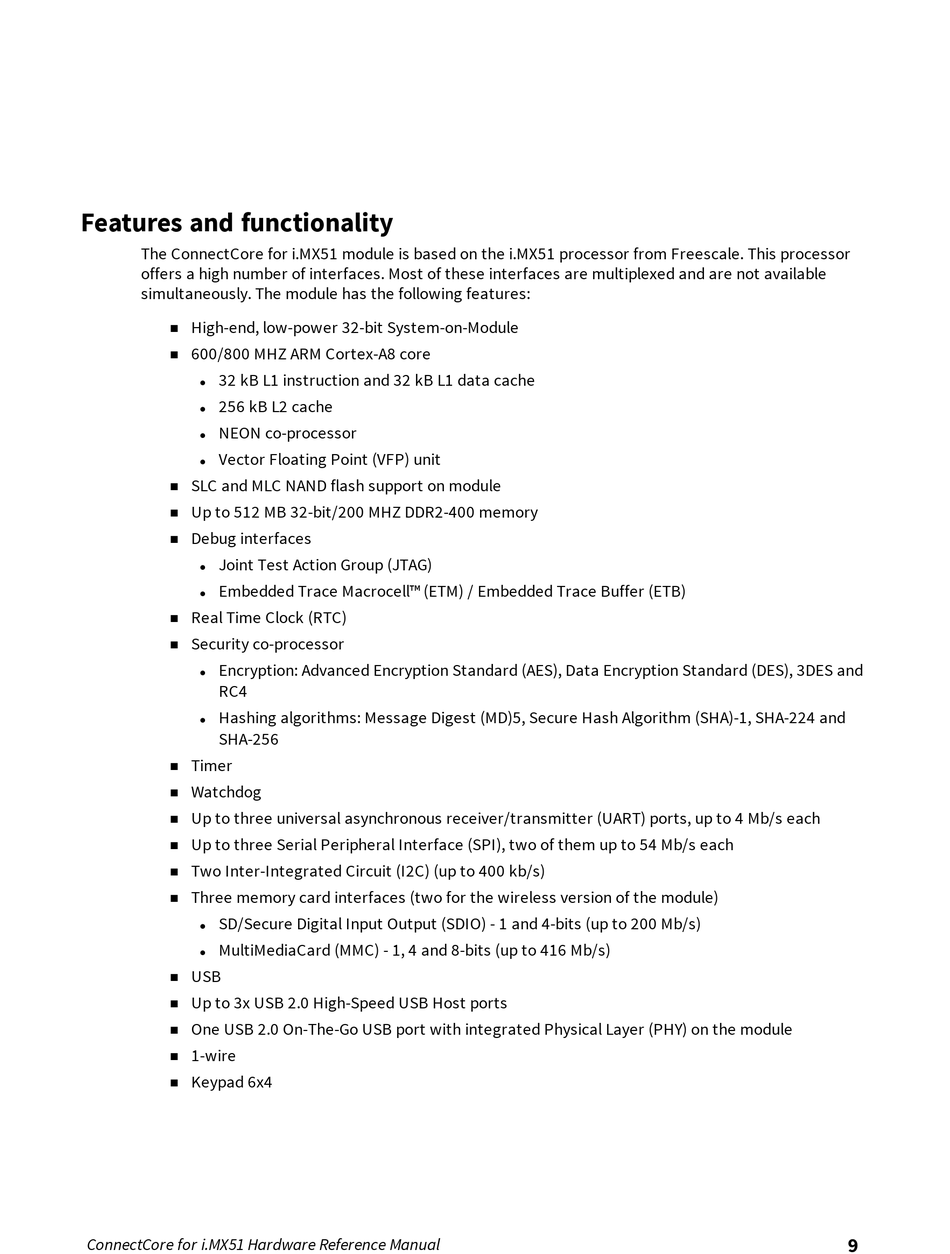

Features and functionality

The ConnectCore for i.MX51 module is based on the i.MX51 processor from Freescale. This processor
offers a high number of interfaces. Most of these interfaces are multiplexed and are not available
simultaneously. The module has the following features:
High-end, low-power 32-bit System-on-Module
n
600/800 MHZ ARM Cortex-A8 core
n
32 kB L1 instruction and 32 kB L1 data cache
l
256 kB L2 cache
l
NEON co-processor
l
Vector Floating Point (VFP) unit
l
SLC and MLC NAND flash support on module
n
Up to 512 MB 32-bit/200 MHZ DDR2-400 memory
n
Debug interfaces
n
Joint Test Action Group (JTAG)
l
Embedded Trace Macrocell™ (ETM) / Embedded Trace Buffer (ETB)
l
Real Time Clock (RTC)
n
Security co-processor
n
Encryption: Advanced Encryption Standard (AES), Data Encryption Standard (DES), 3DES and
l
RC4
Hashing algorithms: Message Digest (MD)5, Secure Hash Algorithm (SHA)-1, SHA-224 and
l
SHA-256
Timer
n
Watchdog
n
Up to three universal asynchronous receiver/transmitter (UART) ports, up to 4 Mb/s each
n
Up to three Serial Peripheral Interface (SPI), two of them up to 54 Mb/s each
n
Two Inter-Integrated Circuit (I2C) (up to 400 kb/s)
n
Three memory card interfaces (two for the wireless version of the module)
n
SD/Secure Digital Input Output (SDIO) - 1 and 4-bits (up to 200 Mb/s)
l
MultiMediaCard (MMC) - 1, 4 and 8-bits (up to 416 Mb/s)
l
USB
n
Up to 3x USB 2.0 High-Speed USB Host ports
n
One USB 2.0 On-The-Go USB port with integrated Physical Layer (PHY) on the module
n
1-wire
n
Keypad 6x4
n
