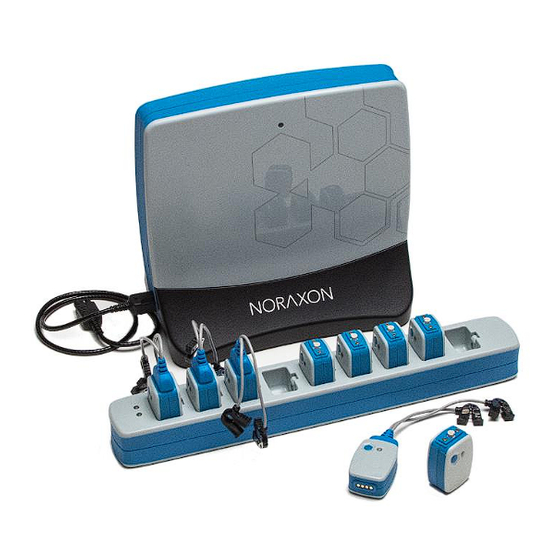

Noraxon Ultium EMG User Manual
Footswitch smartlead
Hide thumbs
Also See for Ultium EMG:
- User manual (51 pages) ,
- Quick start manual (12 pages) ,
- User manual (20 pages)
Related Manuals for Noraxon Ultium EMG
Summary of Contents for Noraxon Ultium EMG
- Page 1 Ultium Footswitch SmartLead User Manual Ultium™ EMG System Footswitch SmartLead User Manual (Rev C May 2019)
-
Page 2: Table Of Contents
Ultium Footswitch SmartLead User Manual 1 Table of Contents Table of Contents ............................... 2 Introduction ................................5 Brief Description ............................5 Contraindications............................5 Definitions ................................6 Graphic Symbols and Meaning ......................6 Glossary of Terms ............................ 6 Identification ................................ 7 Model Designation ............................ - Page 3 Ultium Footswitch SmartLead User Manual 11.2 Maintenance by Qualified Individuals ....................25 11.3 Companion Software Updates ......................25 11.4 Attention ..............................25 Troubleshooting ............................26 12.1 Website Link to FAQ ..........................26 Service and Repair ............................27 13.1 Warranty Information ..........................27 13.2 Submitting Technical Support Requests ....................
- Page 4 Noraxon and myoRESEARCH are registered trademarks and the Noraxon logo, myoANALOG, myoFORCE, myoMETRICS, myoMOTION, myoMUSCLE, myoPRESSURE, myoVIDEO, myoSYNC, NiNOX, TRUsync and Ultium are common-law trademarks of Noraxon U.S.A., Inc. All other trademarks are the property of their respective owners. ©2018, all rights reserved.
-
Page 5: Introduction
It is designed for quick and easy use in clinical gait analysis. The Footswitch SmartLead works with Noraxon Ultium EMG system as an accessory to the Ultium EMG Sensor (#810). The Footswitch SmartLead has universal functionality covering easy and quick to use setups for clinical gait screening, running and jump testing. -
Page 6: Definitions
Ultium Footswitch SmartLead User Manual 3 Definitions 3.1 Graphic Symbols and Meaning The following international icons and symbols may be found on the Footswitch SmartLead enclosures and in this user manual. Their meaning is described below. Read material in the Instruction Manual wherever this symbol appears. -
Page 7: Identification
(right) 4.2 Product Versions and Configurations The model 802 Footswitch SmartLeads must be utilized in conjunction with the Ultium EMG Sensor (Part# 810) and the Ultium Receiver (Part #880). For additional equipment details refer to Section 9 of this manual. -
Page 8: General Warnings And Cautions
Ultium Footswitch SmartLead User Manual 5 General Warnings and Cautions 5.1 Risks and Benefits There is no identified risk of physical harm or injury with use of the Footswitch SmartLead. The benefit provided by use of the device is the provision of objective measures to assess the severity of pathological human movement conditions and gauge any subsequent improvement offered by therapy, training, prosthetic alterations or ergonomic design changes. -
Page 9: Getting Started
Ultium Footswitch SmartLead User Manual 6 Getting Started 6.1 Quick Start Guides Please see the hardware manual for the appropriate EMG system. P-880: Ultium hardware user manual (Rev C May 2019) -
Page 10: Preparing The Product For Use
Ultium Footswitch SmartLead User Manual 7 Preparing the Product for Use 7.1 Unpacking and Component Identification Footswitch SmartLead (Part #802) Footswitch FSR SmartLead Sensor Assembly (Part #FSA1) Footswitch Insole SmartLead (Part #085F_) Force Sensitive Resistors (Part #FSR1) (Rev C May 2019) -
Page 11: Component Inputs, Outputs And Indicators
Ultium Footswitch SmartLead User Manual Strap 18 inch (Part #ES1) Additional contents not illustrated Footswitch User Manual (part #802A) This document If additional accessories have been included please see Section 9, Accessories for component identification. 7.2 Component Inputs, Outputs and Indicators Smart Lead Connector –... -
Page 12: Component Interconnections
Ultium Footswitch SmartLead User Manual 3 Footswitch SmartLead Serial Number: Unique 5-character serial number which identifies each SmartLead. 7.3 Component Interconnections Step 1A Connect the Footswitch connector (Male 5-pin connector) with the FSA1 connector (Female 5-pin connector) Connect the Footswitch connector Step 1B (Male 5-pin connector) with the Ultium Insole connector (Female 5-... -
Page 13: Device Communication (Driver) Software Installation
Ultium Footswitch SmartLead User Manual 7.4 Device Communication (Driver) Software Installation No driver installation is needed. The Ultium Receiver communicates over the USB port. (Rev C May 2019) -
Page 14: Companion Software Installation
MR3 software 7.6 Companion Software Configuration Before the Footswitch can be used with the Noraxon Ultium system, the companion software must be configured to recognize the different components that make up the system. Refer to the Ultium system’s hardware manual for instructions on the software module (MR3 myoMUSCLE) supplied with... - Page 15 Ultium Footswitch SmartLead User Manual 7.6.1 MR3 Configuration Step 1 Enter the Hardware Setup screen and setup the Noraxon EMG system in accordance with its provided hardware manual. Step 2a Click ‘Detect Sensors in Charger’ (All sensors which you would like to use must be in the charger) –...
- Page 16 Ultium Footswitch SmartLead User Manual Step 2b Click on ‘Setup’, next to the Footswitch inside of Hardware Setup. The numerical values correspond to the level of pressure (threshold) needed to activate the Footswitch’s internal pressure sensors. Have the individual wearing the insole stand upright with their feet shoulder-width apart and pointing straight ahead.
- Page 17 Ultium Footswitch SmartLead User Manual sensor (redetection is necessary to revert to the use of the sensor’s EMG functionality). This will prevent configuration errors leading to the inability to collect a measurement. If an error message pops up when starting a measure, and you are using SmartLeads, this is a good first troubleshooting step (1.
- Page 18 Ultium Footswitch SmartLead User Manual (Rev C May 2019)
-
Page 19: Pre-Use Check
Ultium Footswitch SmartLead User Manual 8 Pre-Use Check 8.1 Normal Appearance of Signals The sensor’s STATUS LED provides a means of communicating its operational state. In the idle state, the STATUS LED will flash blue at a low, once per second rate. When the sensor is actively measuring a signal, the STATUS LED will flash recognizably faster (green). - Page 20 Ultium Footswitch SmartLead User Manual A similar protocol can be used when testing the FSRs. This will ensure that each FSR is functioning properly and help identify their corresponding placement on the foot. (Rev C May 2019)
-
Page 21: Operating Instructions
Never use the Noraxon Ultium System on a person with an implanted pacemaker • Never operate the Noraxon Ultium System within 1 meter of any critical medical device 9.2 Attaching the Sensor to a Patient or Subject The Footswitch SmartLeads can be secured in place using Noraxon supplied double-sided adhesive tape and/or elastic straps. - Page 22 Ultium Footswitch SmartLead User Manual 9.2.2 Foot Insole The Foot Insole is convenient to use because it does not require individual sensors to be attached to the foot. The Insole fits inside the shoe which makes it the easiest and fastest method to measure foot pressure.
-
Page 23: Normal Functions With Interface To A Pc
Consult the user manual for the companion software for descriptions of the setup, playback and analysis of the data acquired by the Ultium system. 9.4 Exceptional Functions/Situations (error messages) Please see the appropriate Noraxon system’s hardware manual for possible error messages. 9.5 Shutdown after Use At the end of the day: •... -
Page 24: Cleaning
Ultium Footswitch SmartLead User Manual 10 Cleaning 10.1 Safety Precautions When Cleaning WARNING Only use a damp cloth with mild soap and water or isopropyl alcohol to clean the bottom of the Ultium Sensors. Do not immerse Ultium Sensors in any water or liquid. 10.2 Cleaning by Users The Footswitch FSR’s should be wiped off with a damp cloth between uses. -
Page 25: Maintenance
11.3 Companion Software Updates • Perform a backup of the data folders to a separate drive as a precaution. • Click on the Patch/Update link provided in the email or as given on the Noraxon website. • Download the Patch/Update file. •... -
Page 26: Troubleshooting
MR3 and run a firmware update if needed. 12.1 Website Link to FAQ Answers to common questions can be found at Noraxon’s Frequently Asked Questions (FAQ) website page at this link: https://www.noraxon.com/support-learn/technical-support/faqs/ Other educational material is available at this link: https://www.noraxon.com/support-learn/technical-support/... -
Page 27: Service And Repair
If you are shipping from outside the USA please use UPS, FedEx, DHL, or EMS (US Postal Service) and not a freight-forwarder. Using a freight-forwarder incurs additional brokerage fees. If a package is shipped to Noraxon via a carrier other than the ones listed above, it may be refused. (Rev C May 2019) -
Page 28: Spare Parts And Consumables
Ultium Footswitch SmartLead User Manual 14 Spare Parts and Consumables 14.1 Consumable Items There are no consumable items for this product. 14.2 Replaceable Items Description Part Image Inline Footswitch FSR Sensor FSR1 Foot Insole 085F_ Elastic strap, 36 inches long (cut to length) for securing Ultium sensors (Rev C May 2019) -
Page 29: Specifications Of The Product
Ultium Footswitch SmartLead User Manual 15 Specifications of the Product 15.1 Expected Useful Lifetime The Footswitch SmartLead has a usable life of seven years. 15.2 Technical Specifications SmartLead • 4-zone resistive input with On/Off output. • Supports both individual FSR (Force Sensitive Resistors) and insoles. •... -
Page 30: Appendices
Ultium Footswitch SmartLead User Manual 16 Appendices 16.1 Appendix A – FSR Usage Tips Care and Handling Do’s: Do handle the FSR with care. Do gently bend the FSR in the middle of the tail. Do adjust the sensitivity of the FSRs. Do pull the FSR straight out of the cable. - Page 31 Ultium Footswitch SmartLead User Manual On regular shoe soles ▪ Sometimes research studies require the FSR to be placed on the shoe sole. This method may be used, but it requires careful setup so the FSR is not damaged. ▪ In order to minimize abrasion to the FSR, "tape"...
-
Page 32: Appendix B - Insole Measurements
Ultium Footswitch SmartLead User Manual 16.2 Appendix B – Insole measurements The insoles are worn in the subject's shoes or taped to the bottom of bare feet. The foot insole has 4 zones – toe, metatarsal 1, metatarsal 5, heel. The heel section is separated from the fore foot section so that one pair of insoles can accommodate a range of shoe sizes. -
Page 33: Appendix C -Footswitch Smartlead Sensitivity
Ultium Footswitch SmartLead User Manual 16.3 Appendix C –Footswitch SmartLead Sensitivity Set-Up: Click on ‘Setup’, next to the Footswitch sensor inside of the Ultium Hardware Setup (if the Footswitch is not in this set-up: redetect sensors as described in. The numerical values correspond to the level of pressure (threshold) needed to activate the Footswitch’s internal pressure sensors. - Page 34 Ultium Footswitch SmartLead User Manual Footswitch Translation into Voltages Individual Values Normal Step Sequence Values (in Volts) (in Volts) H = 0.267 Volts = 0.267 5 = 0.533 Volts H, 5 = 0.800 1 = 1.067 Volts H, 5, 1 = 1.867 T = 2.133 Volts H, 5, 1, T...
