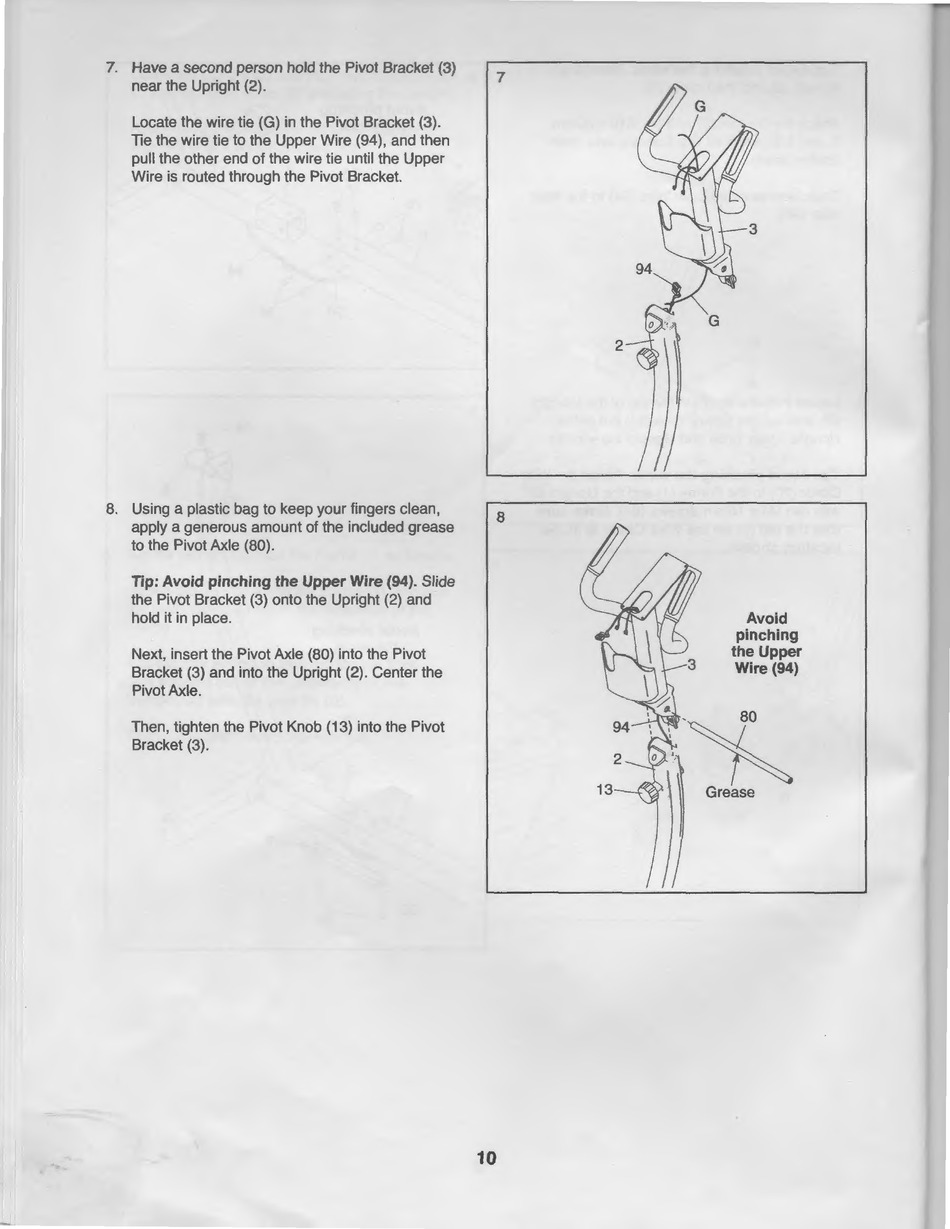

7. Have a second person hold the Pivot Bracket (3)
near the Upright (2).
Locate the wire tie (G) in the Pivot Bracket (3) .
Tie the wire tie to the Upper Wire (94), and then
pull the other end of the wire tie until the Upper
Wire is routed through the Pivot Bracket.
8.
Using a plastic bag to keep your fingers clean,
apply a generous amount of the included grease
to the Pivot Axle (80).
Tip: Avoid pinching the Upper Wire (94). Slide
the Pivot Bracket (3) onto the Upright (2) and
hold it in place.
Next, insert the Pivot Axle (80) into the Pivot
Bracket (3) and into the Upright (2). Center the
PivotAxle.
Then, tighten the Pivot Knob (13) into the Pivot
Bracket (3).
10
7
2
8
Avoid
pinching
the Upper
Wire (94)
-~
1
Gre~e
