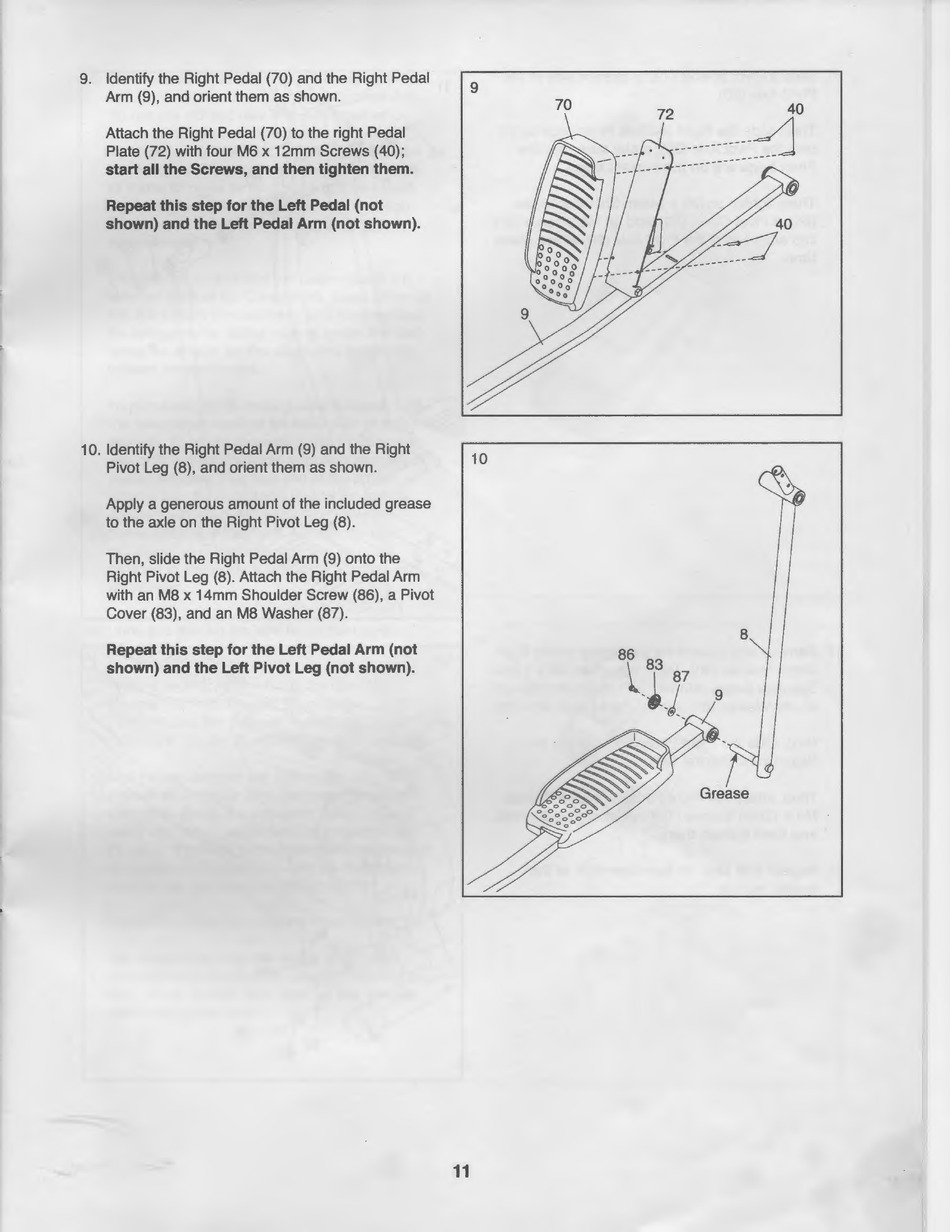

9. ldentify the Right Pedal (70) and the Right Pedal
Arm (9), and orient them as shown.
Attach the Right Pedal (70) to the right Pedal
Plate (72) with four M6 x 12mm Screws (40);
start all the Screws, and then tighten them.
Repeat this step for the Left Pedal (not
shown) and the Left Pedal Arm (not shown).
1 O. ldentify the Right Pedal Arm (9) and the Right
Pivot Leg (8), and orient them as shown.
Apply a generous amount of the included grease
to the axle on the Right Pivot Leg (8).
Then, slide the Right Pedal Arm (9) onto the
Right Pivot Leg (8). Attach the Right Pedal Arm
with an M8 x 14mm Shoulder Screw (86), a Pivot
Cover (83), and an M8 Washer (87).
Repeat this step for the Left Pedal Arm (not
shown) and the Left Pivot Leg (not shown).
