Pro-Form Hybrid Trainer User Manual page 6

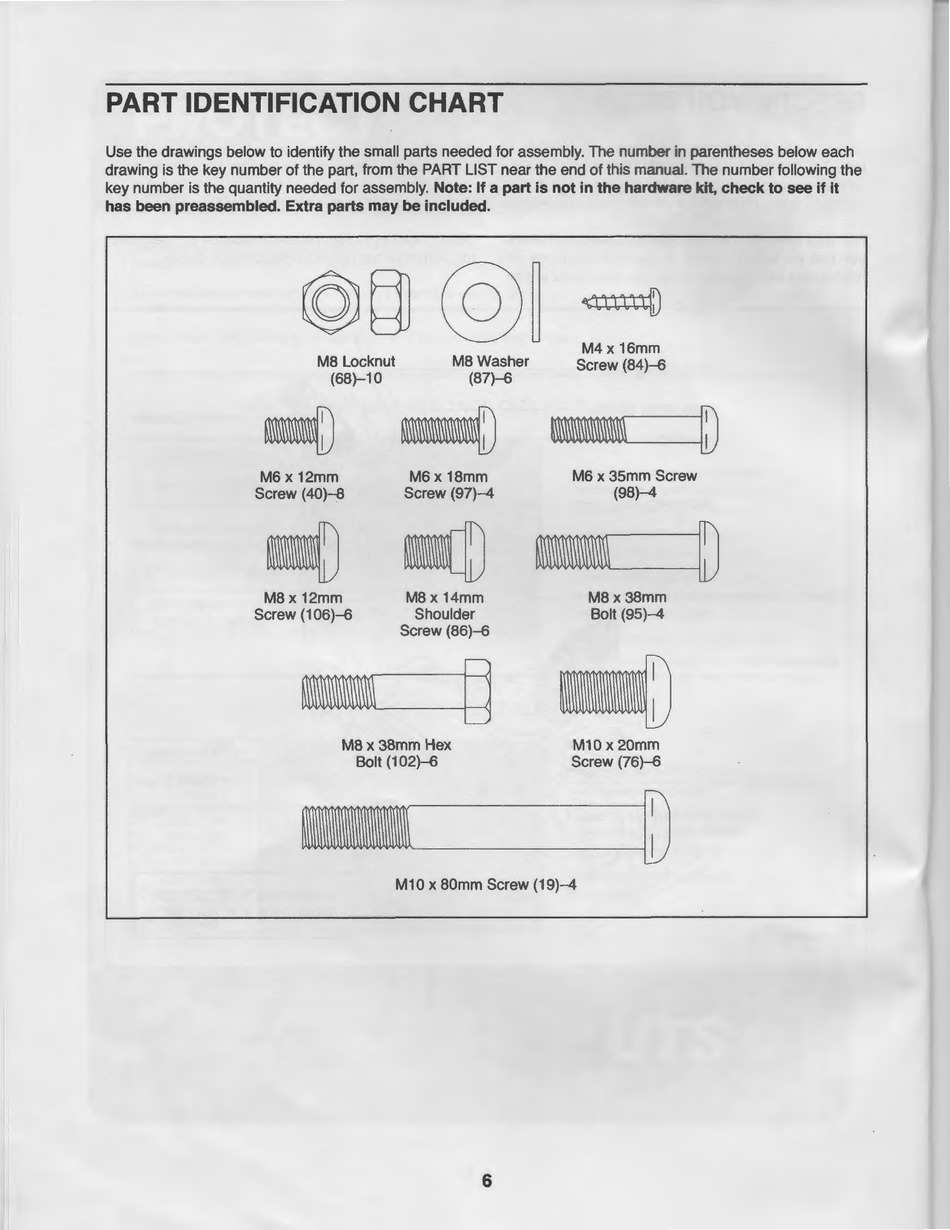

PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: lf a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
@g@íl
M8 Locknut M8 Washer
(68)-10 (87)-6
~ ~
M6 x 12mm M6 x 18mm
Screw (40)-8 Screw (97)-4
li(] li[]]
M8 x 12mm M8 x 14mm
Screw (106)-6 Shoulder
Screw (86)-6
M8x38mm Hex
Bolt (102)-6
M4 x 16mm
Screw (84)-6
M6 x 35mm Screw
(98)-4
M8x38mm
Bolt (95)-4
M10 x 20mm
Screw (76)-6
M1 O x 80mm Screw (19)-4
