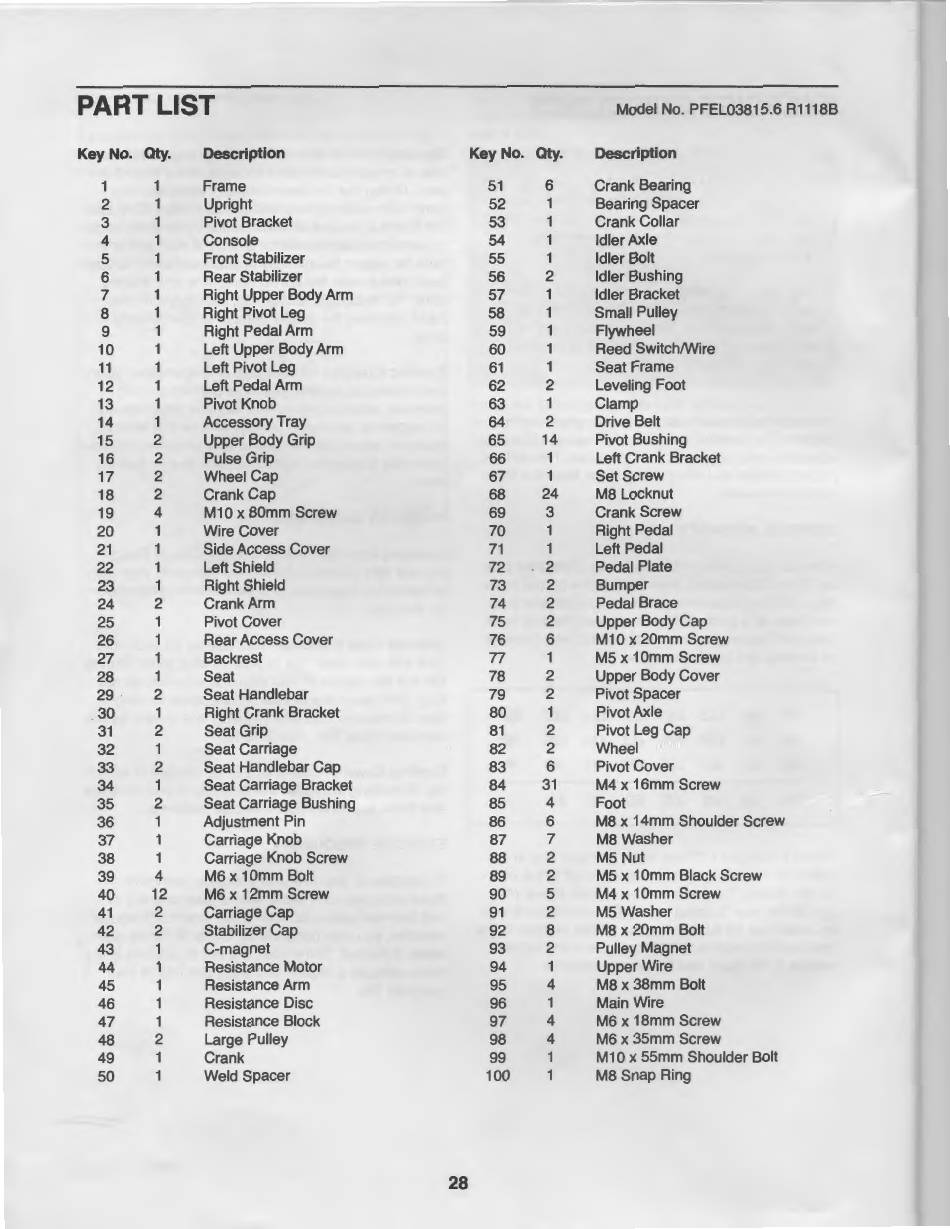

Pro-Form Hybrid Trainer User Manual page 28

PART LIST
Model No. PFEL03815.6 R1118B
Key No. Qty. Description Key No.
Qty.
Description
1 1 Frame 51 6 Crank Bearing
2
1 Upright 52 1 Bearing Spacer
3
1 Pivot Bracket 53 1 Crank Coitar
4
1 Console 54 1 ldler Axle
5 1 Front Stabilizer 55
1 ldler Bolt
6 1 Rear Stabilizer 56
2 ldler Bushing
7 1 Right Upper Body Arm 57
1 ldler Bracket
8
1 Right Pivot Leg 58 1 Small Pulley
9
1 Right Pedal Arm 59
1 Flywheel
10 1 Left Upper Body Arm 60 1 Reed Switch/Wire
11 1
Left Pivot Leg 61 1 Seat Frame
12 1 Left Pedal Arm
62 2 Leveling Foot
13 1 Pivot Knob 63 1 Clamp
14 1 Accessory Tray 64 2
Drive Belt
15 2 Upper Body Grip 65 14 Pivot Bushing
16
2 Pulse Grip 66
1 Left Crank Bracket
17 2 Wheel Cap 67 1 Set Screw
18
2 Crank Cap 68 24 M8 Locknut
19 4 M10 x 80mm Screw 69
3 Crank Screw
20 1 Wire Cover 70
Right Pedal
21
1 Side Access Cover 71
1 Left Pedal
22 1 Left Shield 72 2 Pedal Plate
23
1 Right Shield 73 2 Bum per
24 2 CrankArm
74 2 Pedal Brace
25 1
Pivot Cover 75 2 Upper Body Cap
26 1 Rear Access Cover
76 6 M1 O x 20mm Screw
27 1 Backrest
77 1 M5 x 1 Omm Screw
28
1 Seat
78 2 Upper Body Cover
29
2 Seat Handlebar 79 2 Pivot Spacer
30 1
Right Crank Bracket 80 1 PivotAxle
31 2 Seat Grip
81 2 Pivot Leg Cap
32 1
Seat Carriage 82 2 Wheel
33 2 Seat Handlebar Cap 83
6 Pivot Cover
34 1 Seat Carriage Bracket 84
31 M4 x 16mm Screw
35
2 Seat Carriage Bushing 85 4 Foot
36 1
Adjustment Pin 86 6 M8 x 14mm Shoulder Screw
37 1
Carriage Knob 87 7 M8 Washer
38 1 Carriage Knob Screw 88
2 M5 Nut
39 4 M6 x 1 Omm Bolt 89
2 M5 x 1 Omm Black Screw
40 12 M6 x 12mm Screw
90 5 M4 x 1 Omm Screw
41 2 Carriage Cap 91
2 M5 Washer
42 2 Stabilizer Cap 92 8 M8 x 20mm Bolt
43 1
C-magnet 93 2 Pulley Magnet
44
Resistance Motor 94 1 Upper Wire
45 1 Resistance Arm 95
4 M8 x 38mm Bolt
46 1 Resistance Disc
96 1 Main Wire
47 1 Resistance Block
97 4 M6 x 18mm Screw
48 2 Large Pulley 98 4
M6 x 35mm Screw
49 1 Crank 99 1 M1 O x 55mm Shoulder Bolt
50 1
Weld Spacer 100 1 M8 Snap Ring
28
