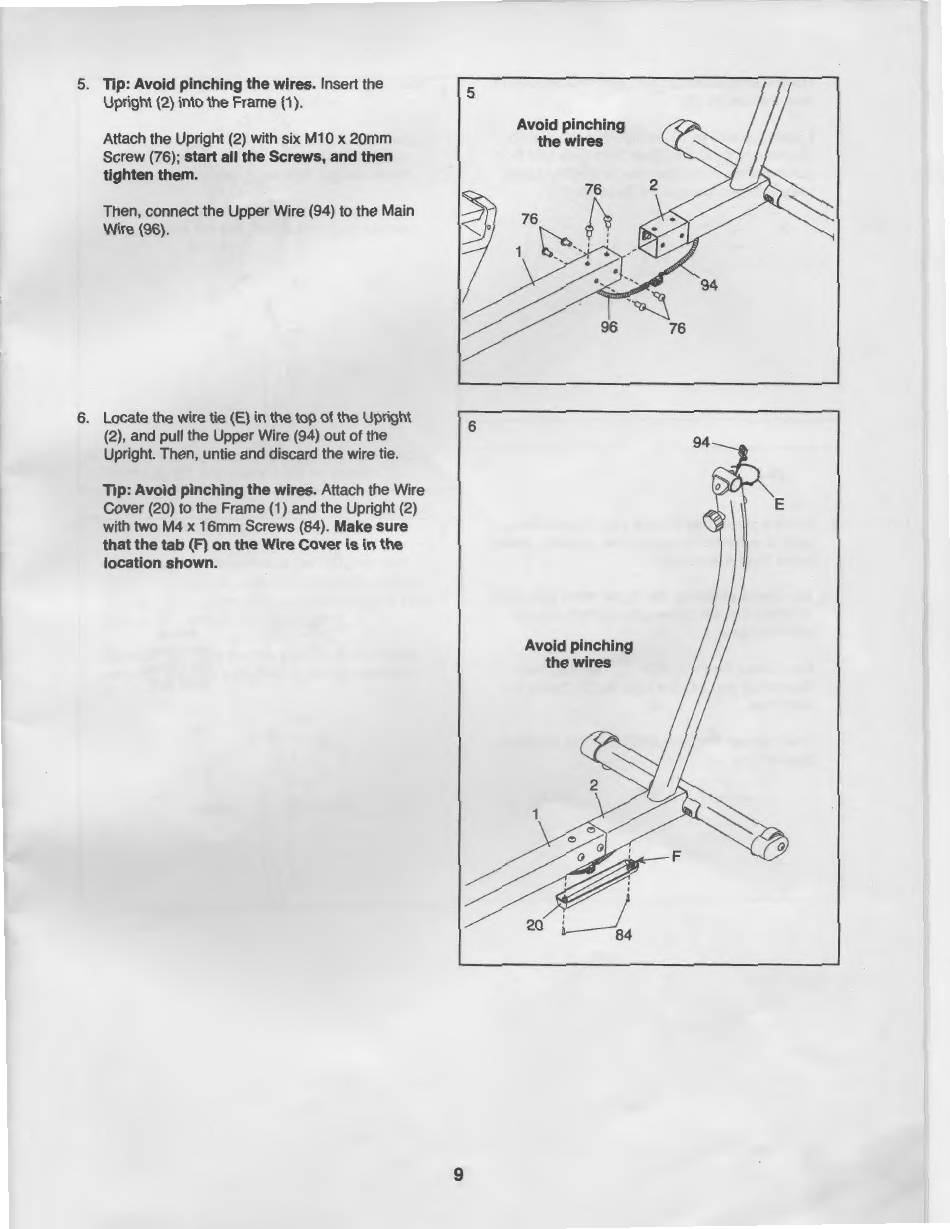

5. Tip: Avoid pinching the wires. lnsert the
Upright (2) into the Frame (1 ).
Attach the Upright (2) with six M10 x 20mm
Screw (76); start all the Screws, and then
tighten them.
Then, connect the Upper Wire (94) to the Main
Wire (96).
6. Locate the wire tie (E) in the top of the Upright
(2), and pull the Upper Wire (94) out of the
Upright. Then, untie and discard the wire tie.
Tip: Avoid pinching the wlres. Attach the Wire
Cover (20) to the Frame (1) and the Upright (2)
with two M4 x 16mm Screws (84). Make sure
that the tab (F) on the Wire Cover is in the
location shown.
9
5
6
Avoid pinching
the wires
Avoid pinching
the wires
E
