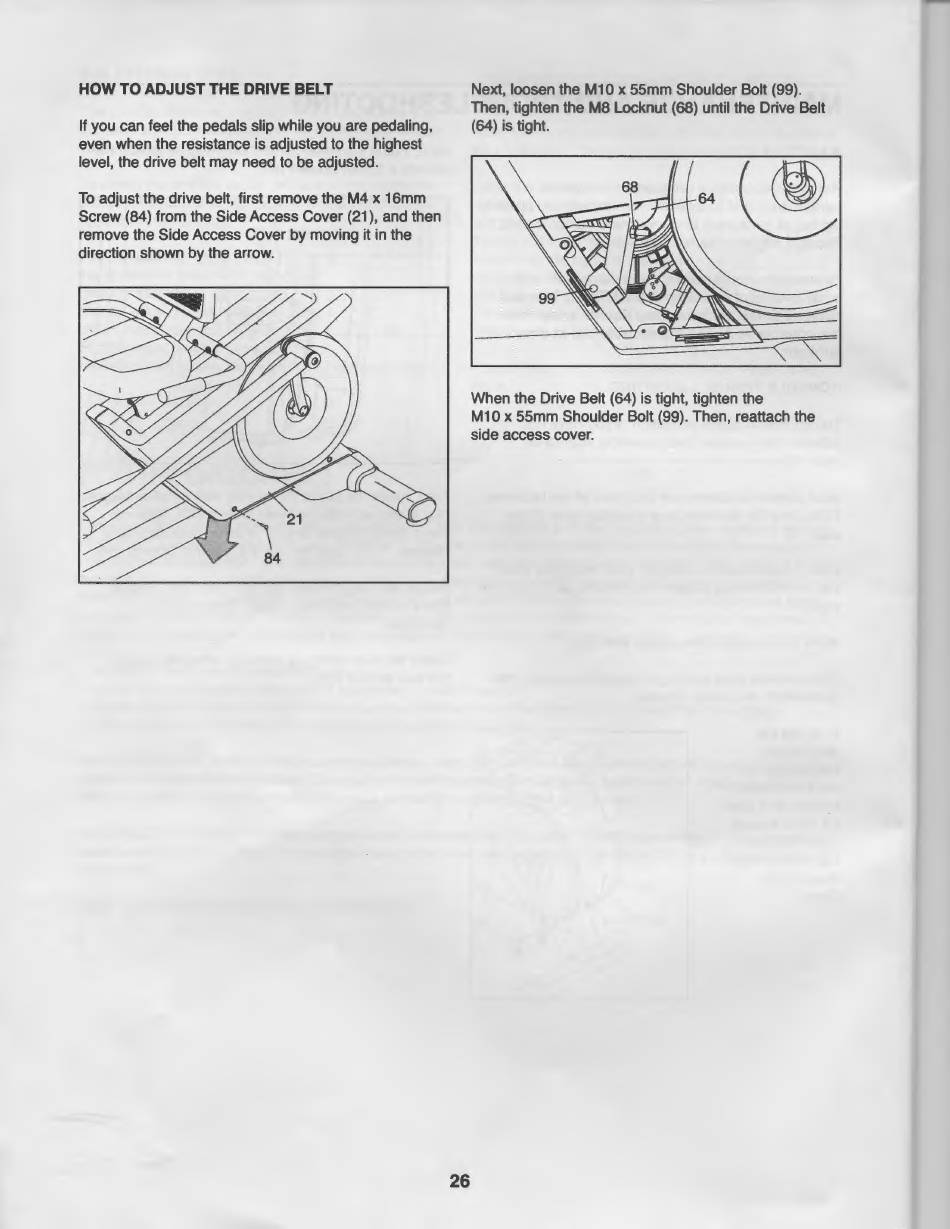

HOW TO ADJUST THE DRIVE BELT
lf you can feel the pedais slip while you are pedaling,
even when the resistance is adjusted to the highest
level, the drive belt may need to be adjusted.
To adjust the drive belt, first remove the M4 x 16mm
Screw (84) from the Side Access Cover (21 ), and then
remove the Side Access Cover by moving it in the
direction shown by the arrow.
26
Next, loosen the M1 O x 55mm Shoulder Bolt (99).
Then, tighten the M8 Locknut (68) until the Drive Belt
(64) is tight.
When the Drive Belt (64) is tight, tighten the
M1 O x 55mm Shoulder Bolt (99). Then, reattach the
side access cover.
