COMBIVERT G6
PROGRAMMING MANUAL | CONTROL G6 ANALOG / DIGITAL
Translation of original manual
Document 20087588 EN 02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMBIVERT G6 and is the answer not in the manual?

Questions and answers

Related Manuals for KEB COMBIVERT G6

Summary of Contents for KEB COMBIVERT G6

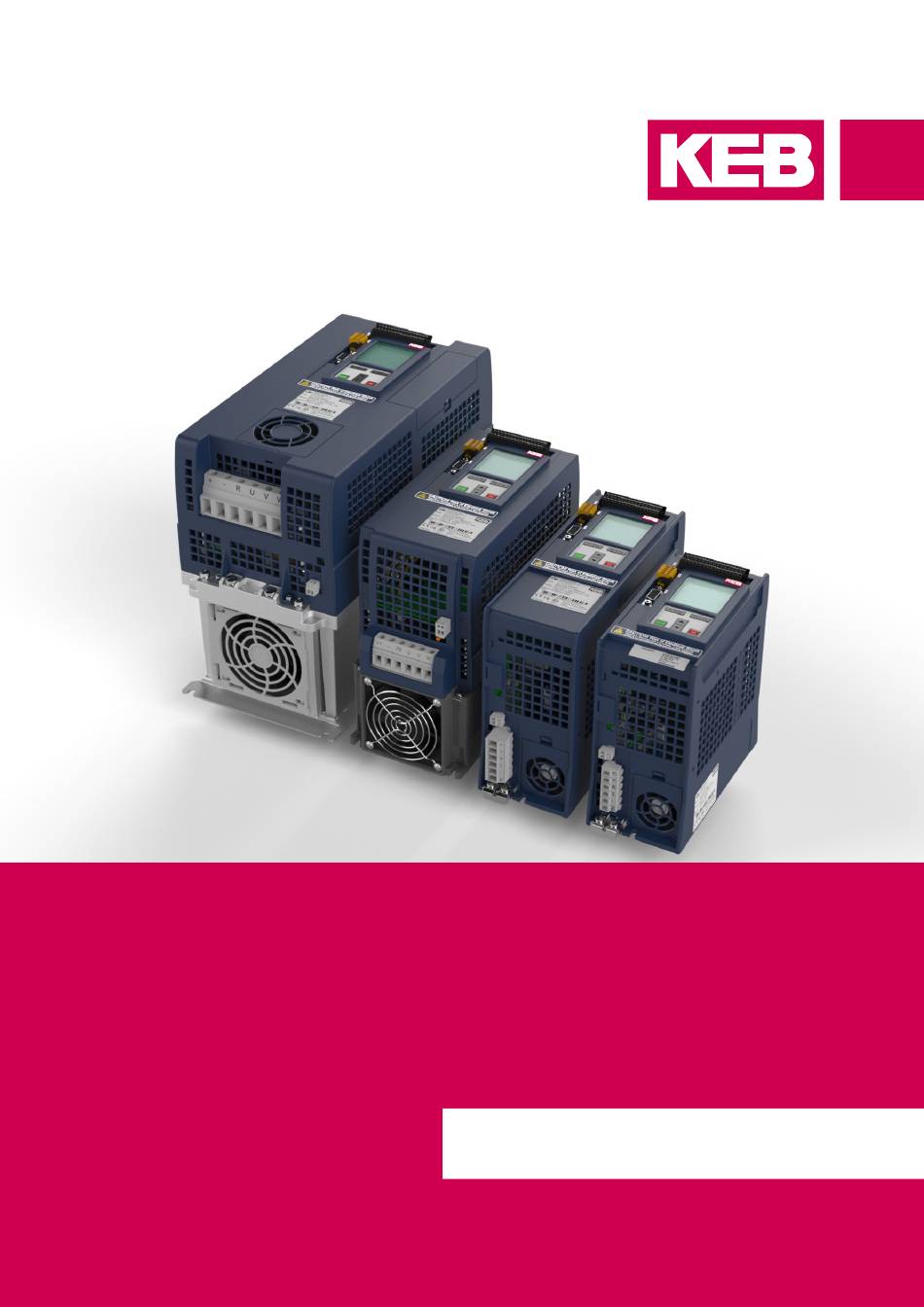

  • Page 1 COMBIVERT G6 PROGRAMMING MANUAL | CONTROL G6 ANALOG / DIGITAL Translation of original manual Document 20087588 EN 02...

  • Page 3: Preface

    PRefACe Preface The described hard- and software are developments of the KEB Automation KG. The enclosed documents correspond to conditions valid at printing. Misprint, mistakes and technical changes reserved. Signal words and symbols Certain operations can cause hazards during the installation, operation or thereafter.

  • Page 4: Laws And Guidelines

    If applicable, the license terms of this software are contained in the instructions for use. The instructions for use are already available to you, can be downloaded free of charge from the KEB website or can be requested from the respec- tive KEB contact person.

  • Page 5: Table Of Contents

    TAbLe Of CONTeNTS Table of Contents Preface ..............................3 Signal words and symbols ......................3 More symbols ..........................3 Laws and guidelines ........................4 Warranty ............................4 Support ............................4 Copyright ............................4 Table of Contents ........................... 5 List of figures ............................6 List of Tables ............................6 1 basic Safety Instructions ..........

  • Page 6: List Of Figures

    LIST Of fIGUReS List of figures Figure 1: Control elements ......................10 Figure 2: Power indicator ........................ 11 Figure 3: Main menu ........................12 Figure 4: Basic settings ........................13 Figure 5: Change language......................13 Figure 6: Set start mode........................14 Figure 7: Set font size ........................14 Figure 8: Set font size 2 ........................15 Figure 9:...

  • Page 7: Basic Safety Instructions

    ► Read the instructions for use ! ► Observe the safety and warning instructions ! ► If anything is unclear, please contact KEB Automation KG ! 1.1 Target group This instruction manual is determined exclusively for electrical personnel. Electrical per- sonnel for the purpose of this instruction manual must have the following qualifications: •...

  • Page 8: Electrical Connection

    bASIC SAfeTy INSTRUCTIONS 1.2 electrical connection DANGeR Voltage at the terminals and in the device ! Danger to life due to electric shock ! ► For any work on the unit switch off the supply voltage and secure it against switching on. ►...

  • Page 9: Product Description

    PRODUCT DeSCRIPTION 2 Product Description 2.1 Product features These instructions for use describe the parameterization of the following devices: Device series: COMBIVERT G6 Hardware: Analog / Digital 2.2 functional overview The control board provides the following functions: • Hardware-installed supply of digital and analog inputs and outputs •...

  • Page 10: Lc Display Operation

    LC DISPLAy OPeRATION 3 LC Display Operation For optional assembly of the LC display. 3.1 Control elements Name function ① Menu bar Inverter parameter ② Function bar ① CP mode Function key 1 Operator parameter Function key 2 Settings Function key 3 Function key 4 ▲...

  • Page 11: Function Keys And Toolbar

    LC DISPLAy OPeRATION 3.1.1.2 Function keys and toolbar The function keys F1...F4 are variable assigned depending on the menu item. The tool- bar displays current assignment of the function keys F1 ... F4. The following assignment may take the keys: Display function DecHex...

  • Page 12: Main Menu

    LC DISPLAy OPeRATION 3.2.2 Main menu The main menu is the top-level menu. With the keys <▲> and <▼> select the desired submenu. Press <ENTER> to Inverter parameter jump to the selected submenu. CP mode Operator parameter Settings Figure 3: Main menu...

  • Page 13: Basic Settings

    bASIC SeTTINGS 4 basic settings To adjust the display to the individual needs select "Settings" in the main menu and confirm with <ENTER>. Language english Start mode CP mode With the keys <▲> and <▼> select the Font size desired function. Font size 2 Contrast 21 Lightning Auto Press <ENTER>...

  • Page 14: Startup Mode

    bASIC SeTTINGS 4.2 Startup mode The startup mode determines which dis- play appears at switch on. Language english Press <ENTER> to switch into the input Start mode CP mode mode to change the parameter value. Font size Font size 2 Contrast 21 With the keys <▲> and <▼> select one Lightning...

  • Page 15: Contrast Settings

    bASIC SeTTINGS The font size 2 determines the display size of the parameter values in CP mode. Language english Press <ENTER> to switch into the input Start mode mode mode to change the parameter value. Font size Font size 2 With the keys <▲> and <▼> select one Contrast Font size 2...

  • Page 16: Setting The Backlight Of The Display

    bASIC SeTTINGS 4.5 Setting the backlight of the display The menu item "Lighting" defines the be- havior of the backlight of the LC Display. Language english Press <ENTER> to switch into the input Start mode mode to change the parameter value. Font size Font size 2 Contrast...

  • Page 17: Parameters For Lc Display Setting

    bASIC SeTTINGS 4.7 Parameters for LC display setting The settings of the LC parameters are completely accepted from the LC display only after restarting the device. Id-Text Name Parameter index dp00 Language 0x2780 Meaning A language is selected for the menu and the parameters. If the selected language is not available the parameters are displayed in English.
  • Page 18 bASIC SeTTINGS Id-Text Name Parameter index dp02 Font size 0x2782 Meaning It can be selected between the font sizes 8,10,13,16 and 24 in the display. Exception: see parameter „font size 2“ Type Variable Data length 8 bit Access read / write Coding 8: 8dpi 10: 10dpi...
  • Page 19 bASIC SeTTINGS Id-Text Name Parameter index dp04 Contrast 0x2784 Meaning The contrast settings of the LC display can be changed to opti- mize readability. Type Variable Data length 8 bit Access read / write Coding 0...50 Standard value: 21 Notice Id-Text Name Parameter index...

  • Page 20: Operator Parameters

    OPeRATOR PARAMeTeRS 5 Operator Parameters Use the operator parameters to configure the control card, the fieldbus (if available) and the display. Inverter parameter CP mode With the keys <▲> and <▼> select Operator parameter Settings "Operator parameter" and confirm with <ENTER>. Figure 12: Operator Parameters The control card parameters are divided into two groups: Operator parameter •...
  • Page 21 OPeRATOR PARAMeTeRS Id-Text Name Parameter index os00 operator identifier 0x2080 Meaning Displays the control card type, as well as the software version. Type Variable Data length 32 bit Access read Coding e.g.: 150508 15xxxx: G6 xx05xx: EtherCAT xxxx08: Version of the parameter configuration Standard value: Device-dependent Notice Id-Text Name...
  • Page 22 OPeRATOR PARAMeTeRS Id-Text Name Parameter index os03 software version 0x2083 Meaning Software version of the control board Type Variable Data length 32 bit Access read Coding 0.0.0.0…255.255.255.255 e.g.: 1.3.0.1 Standard value: 0.0.0.0 Notice Id-Text Name Parameter index os04 diag error count 0x2084 Meaning Specifies the number of errors occurred on the diagnostic inter-...
  • Page 23 OPeRATOR PARAMeTeRS Id-Text Name Parameter index os06 baud rate diag 0x2086 Meaning Default transfer speed on the diagnostic interface. Type Variable Data length 8 bit Access read / write Coding 0: 1.2 kbit/s 1: 2.4 kbit/s 2: 4.8 kbit/s 3: 9.6 kbit/s 4: 19.2 kbit/s 5: 38.4 kbit/s 6: 55.5 kbit/s...
  • Page 24 OPeRATOR PARAMeTeRS Id-Text Name Parameter index os08 operator type 0x2088 Meaning Displaying the implemented control board functions. Type Variable Data length 16 bit Access read Coding Bit 0 Initiator 0: without 1: with initiator Bit 1 Keyboard/dis- 0: without play 1: with keyboard/LCD display Bit 8 PU image...
  • Page 25 OPeRATOR PARAMeTeRS Id-Text Name Parameter index os10 PU tout count 0x208A Meaning Counts the timeout on the internal bus between control and power unit. Type Variable Data length 16 bit Access read / write Coding 0...65535 Standard value: 0 Notice Id-Text Name Parameter index...
  • Page 26 OPeRATOR PARAMeTeRS Id-Text Name Parameter index os13 operator state 0x208D Meaning Shows the state of the power unit and the image of the power unit parameter image of the control board. Type Variable Data length 8 bit Access read Coding Bit 0 reserved Bit 1...2...
  • Page 27 OPeRATOR PARAMeTeRS Id-Text Name Parameter index os15 store mode 0x208F Meaning The memory type of non-volatile parameters must be adjusted with this parameter. The parameters will not be stored if the val- ue is "0", the device automatically changes to value "1" after the next "power-down".
  • Page 28 OPeRATOR PARAMeTeRS Id-Text Name Parameter index os19 safety software version 0x2093 Meaning Display of the safety module software version. Type Variable Data length 32 bit Access read Coding 0.0.0.0...255.255.255.255 If no safety module is installed, the value "0: no safety functional- ity“...
  • Page 29 OPeRATOR PARAMeTeRS Id-Text Name Parameter index os23 current PU ID 0x2097 Meaning Displays the ID of the detected power unit. Is only visible via bus if "invisible parameter" is set in COMBIVIS. Type Variable Data length 32 bit Access read Coding 0 ...65535 Notice...

  • Page 30: Revision History

    ReVISION HISTORy 6 Revision History Version Date Description 2015-07 Completion series 2017-17 Revision to new CI optics, type code adapted, references adapted 2019-05 Update the default pages, insert new parameters...
  • Page 31 Room 1709, 415 Missy 2000 725 Su Seo Dong E-Mail: vb.belgien@keb.de Internet: www.keb.de Gangnam Gu 135- 757 Seoul Republic of Korea Tel: +82 2 6253 6771 Fax: +82 2 6253 6770 E-Mail: vb.korea@keb.de KEB South America - Regional Manager brazil Rua Dr.
  • Page 32 Automation with Drive www.keb.de KEB Automation KG Suedstrasse 38 32683 Barntrup Tel. +49 5263 401-0 E-Mail: info@keb.de...
