Connecting The Cables - ADC MM701F User Manual

C
ONNECTING THE
After you've verified the shipping package contents, follow this procedure to physically set up
your modem:
1 Turn off your computer.

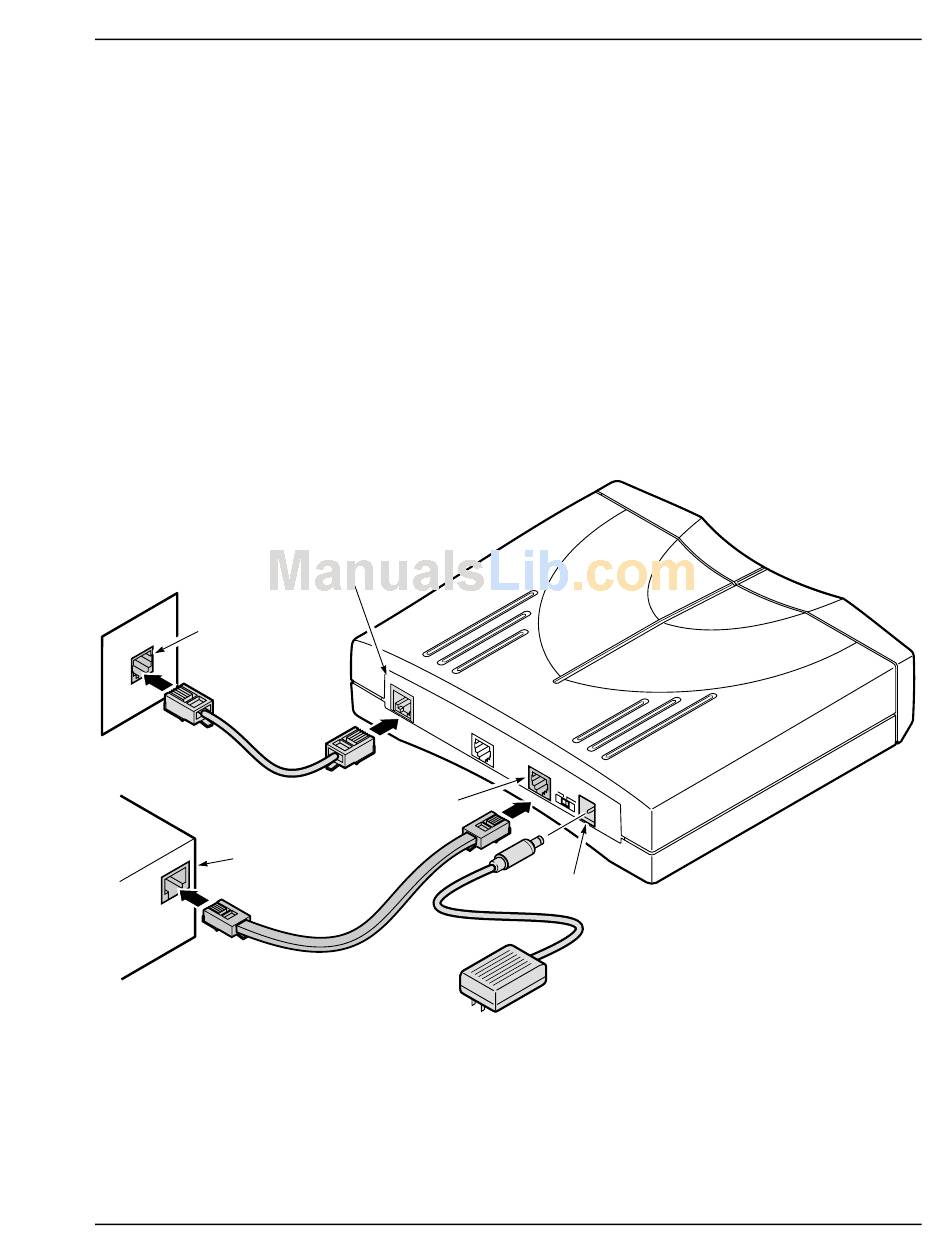

2 Connect the cables to the modem rear panel as shown below.
• grey phone cable for the DSL line port
•
black cable for the 10Base-T port
• power cable for the modem Power connector
See "Connecting to the Console Port" on page 42
Wall jack with
ADSL service
PC, hub or other
network device
MM701F User Manual
C
ABLES
DSL line
port
D S
L L
I N E
C O
10Base-T
port
for connecting the console cabling.
N S
O L
E
1 0
B A
S E
- T
P O
M D W E
I
M D R
I- X
Power
connector
Chapter 2: Installing the Modem
5
