Assemble Sides

Lay out all the parts for the sides in a staging area.
Make sure the pieces are in the correct positions before assembling.
!
Carefully follow the order of assembly to ensure an easy installation.
Wear proper safety gear including work shoes, gloves and goggles.
!
You are assembling both sides in the following steps. Both sides are identical until step 6.1

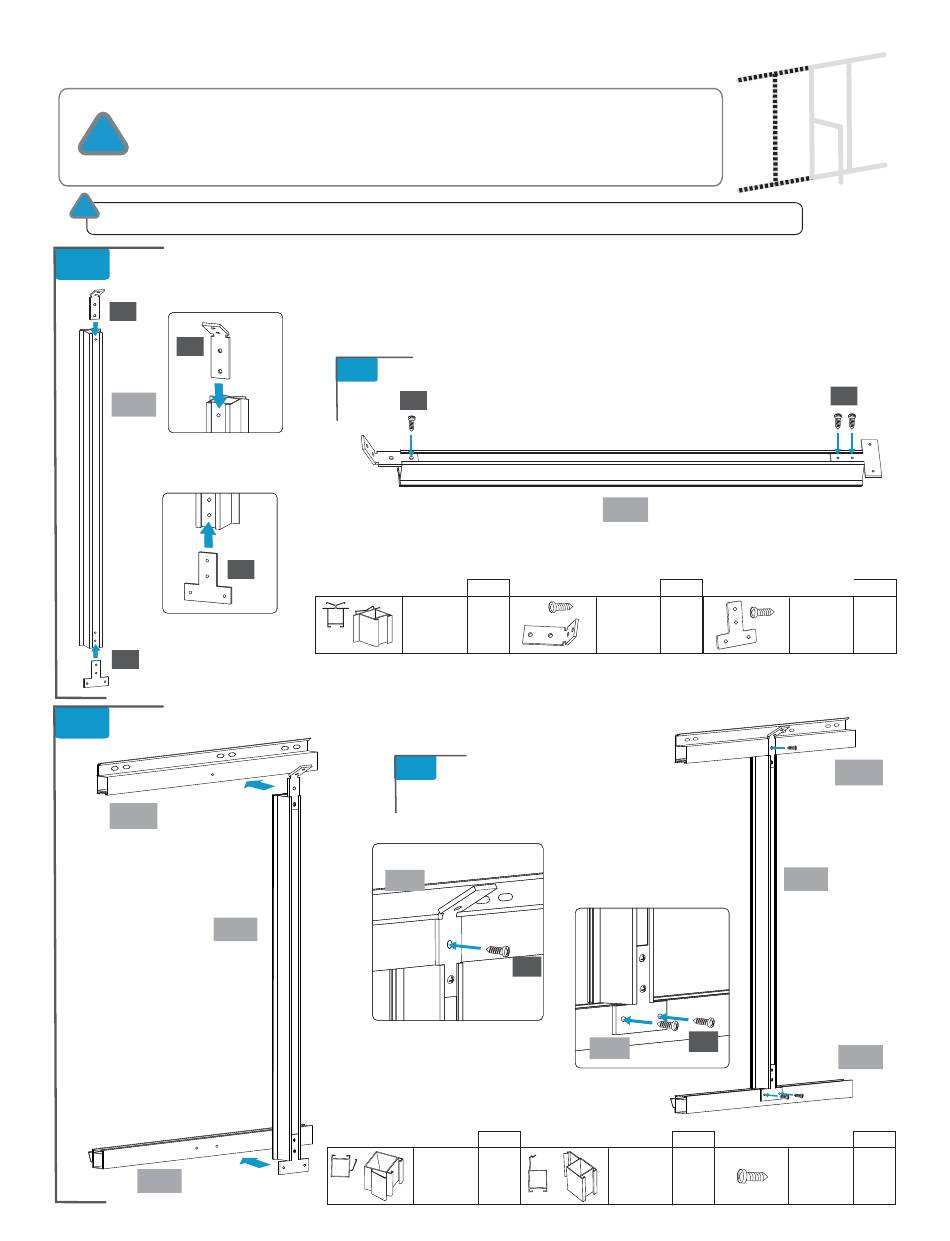

4.1A
Line up the four profiles G03B so the holes are at the same position. Slide long side of connectors
S20 and S08 into channel of profile, lining up holes as shown. Repeat for all four G03B profiles.
S20
S20
G03B
S08
S08
4.2A
Place G03B onto profiles G07A and G01C. Line up holes as shown.
G07A
G03B
G01C
www.stcny.com
4.1B
Secure with three S02 screws.
S02
Profile
QTY
#G03B 4
4.2B
Secure with three S02 screws.
Repeat to make two sets.
G07A
Profile
QTY
#G01C 2
25 of 50
G03B
Connector
QTY
#S02 4
#S20 4
S02
S02
G01C
Profile
QTY
#G07A 2
S02
Connector
QTY
#S02 8
#S08 4
G07A
G03B
G01C
Screw
QTY
#S02 6
