STC Clear View Assembly Instructions Manual page 37

7.3A

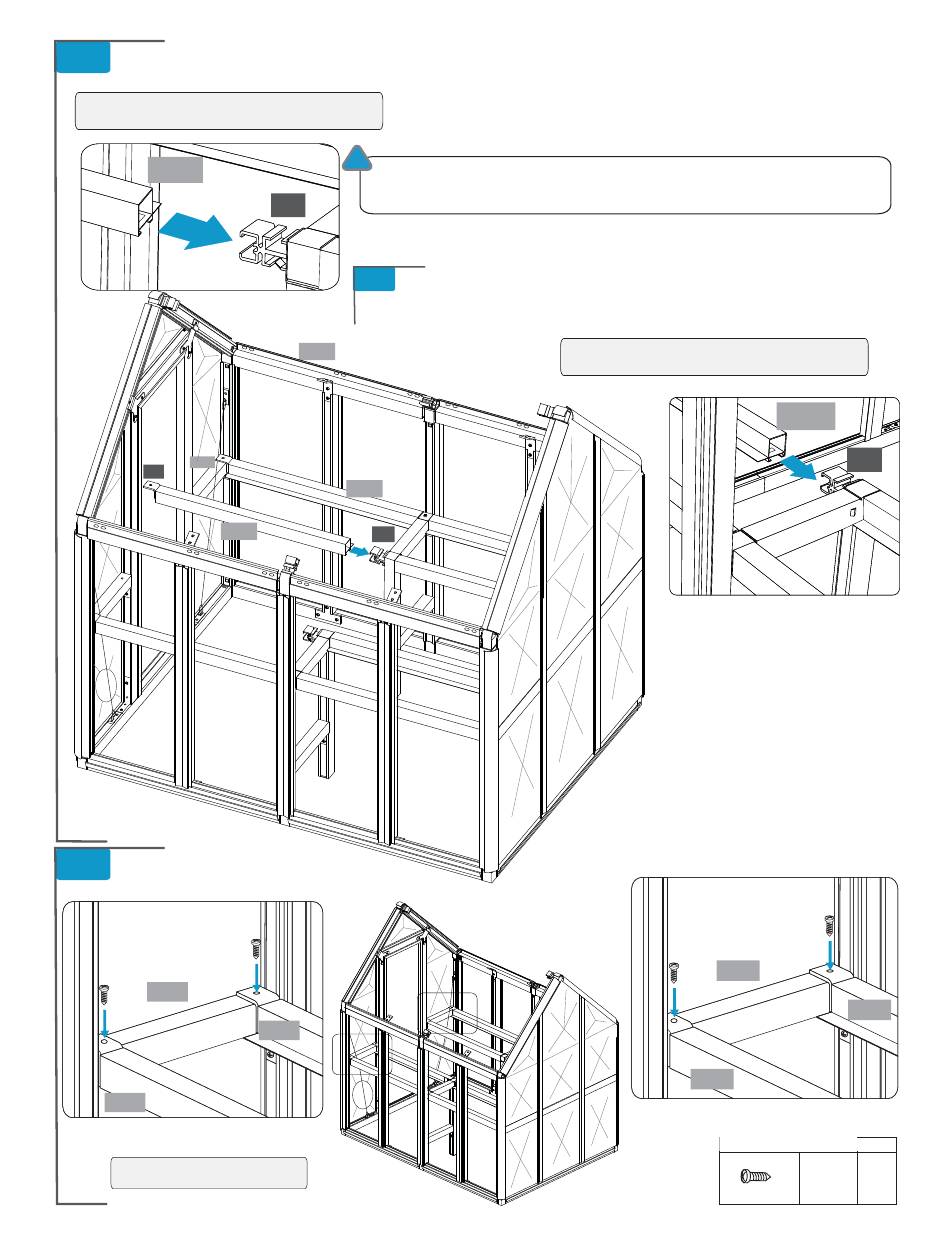

Slide shelf profile G14C at a slight angle so one end slides half way into connector S39 and the other side
with connector S37 rests on top of profile G17A. Continue to slide until profile clicks into connector S39.
Connector S39 CLICKS into place.
G14C
G17A
S37
G14C
7.3C
Secure S37 connectors to
G17A and G17B profiles with four S02 screws.
G17B
G14B
VIEWS FROM INSIDE.
www.stcny.com
!
There is only one way to properly fasten connectors into profiles. Line up parts
first to ensure correct placement. Slide connectors until they CLICK securely into
profile. Use WD40 or liquid soap if pieces do not easily slide together. Wear gloves.
S39
7.3B
Repeat step 7.3A, sliding shelf profile G14D into S39 connector.
Make sure connector S37 rests on top of profile G17B.
G07A
G14A
S39
G14D
35 of 50
Connector S39 CLICKS into place.
G17A
G14C
Screw
G14D
S39
G14A
QTY
#S02 4
