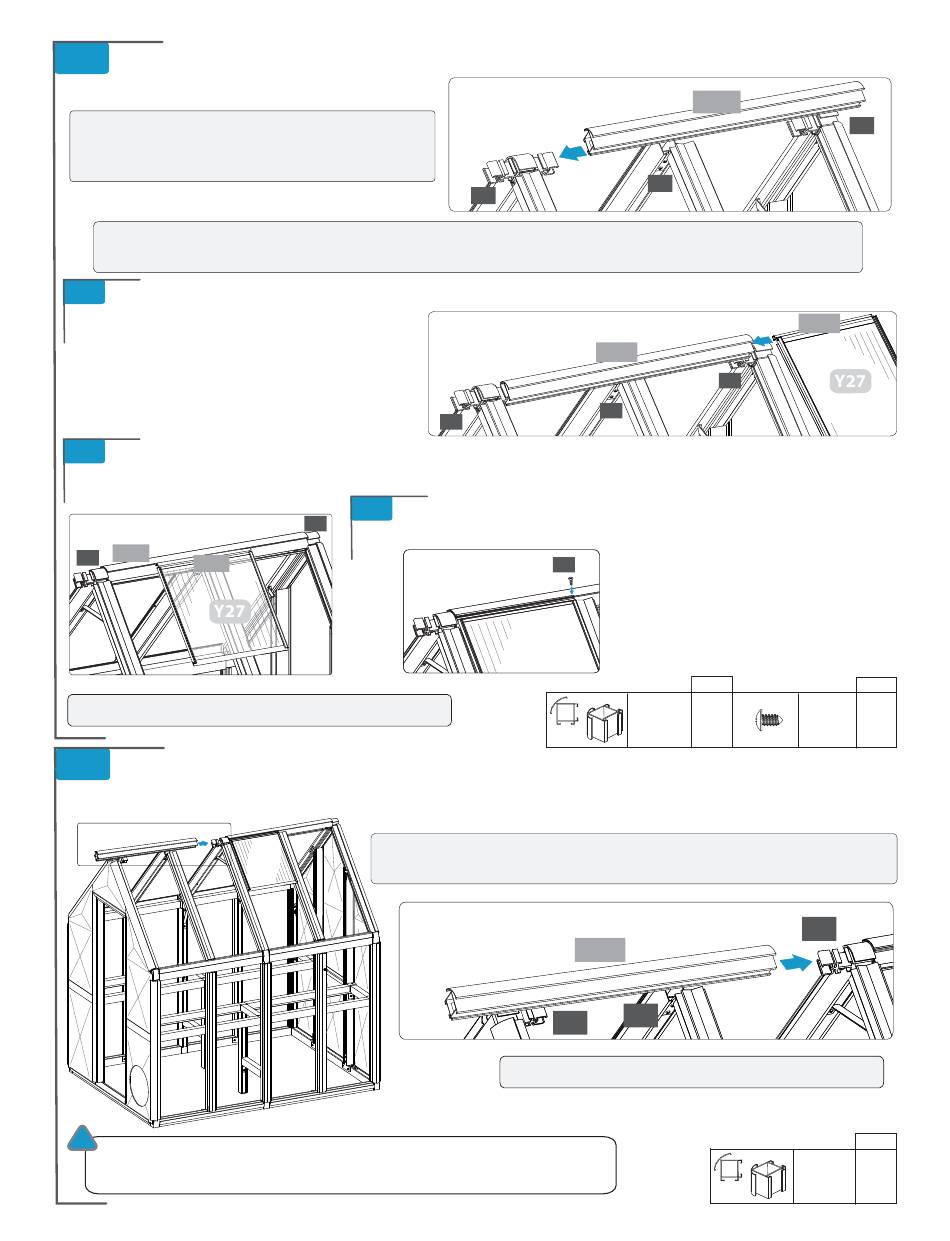

Install Roof Vent - STC Clear View Assembly Instructions Manual

9.5A
Using a small step ladder inside the greenhouse, carefully slide profile G02M half way into center
connector S21 at a slight angle.
IMPORTANT: Have the roof vent nearby. You will
install the roof vent BEFORE connecting both sides
of G02M. It is best to use two people for this step.
IMPORTANT: Make sure profile G02M is in correct position before installing. Arrange profile G02M so
rectangular holes in channels face the LEFT when looking at the front of the greenhouse from the outside.
9.5B
Attach roof vent to profile G02M by sliding the top vent profile G11A into V-channel of profile G02G.
Slide roof vent to center of profile G02M.
Note: Roof vent is assembled in step 8.
9.5C
Gently push center gable slightly towards the front to slide other end of profile G02M into back
connector S12. Make sure both connectors snap securely into place. Note: G02M profile rests on top
of connector S22.
G02G
S21
G11A
Connectors S12 and S21 CLICK into place.
9.6
Slide profile G02G at a slight angle into center gable connector S21. Gently push front side slightly
forward to slide other end of profile into connecor S18. Make sure both connectors click securely into
place. Note profile G02G rests on top of connector S22.
!
There is only one way to properly fasten connectors into profiles. Line up parts
first to ensure correct placement. Slide connectors until they CLICK securely into
profile. Use WD40 or liquid soap if pieces do not easily slide together. Wear gloves.
www.stcny.com
S21
S21
9.5D
Slide roof vent end of profile G20M next to center connector S21.
S12
Screw S42 into hole in top of G02M to hold roof vent in place.
IMPORTANT: Arrange profile G02G so rectangular holes in channels face
the LEFT when looking at the front of the greenhouse from the outside.
39 of 50
S22
G02M
S22
S42
Profile
#G02M
G02G
S22
S18
Connectors S21 and S18 CLICK into place.
G02M
S12
G11A
S12
Screw
QTY QTY
1 1
#S42
S21
Profile
QTY
#G02G 1
