STC Clear View Assembly Instructions Manual page 36

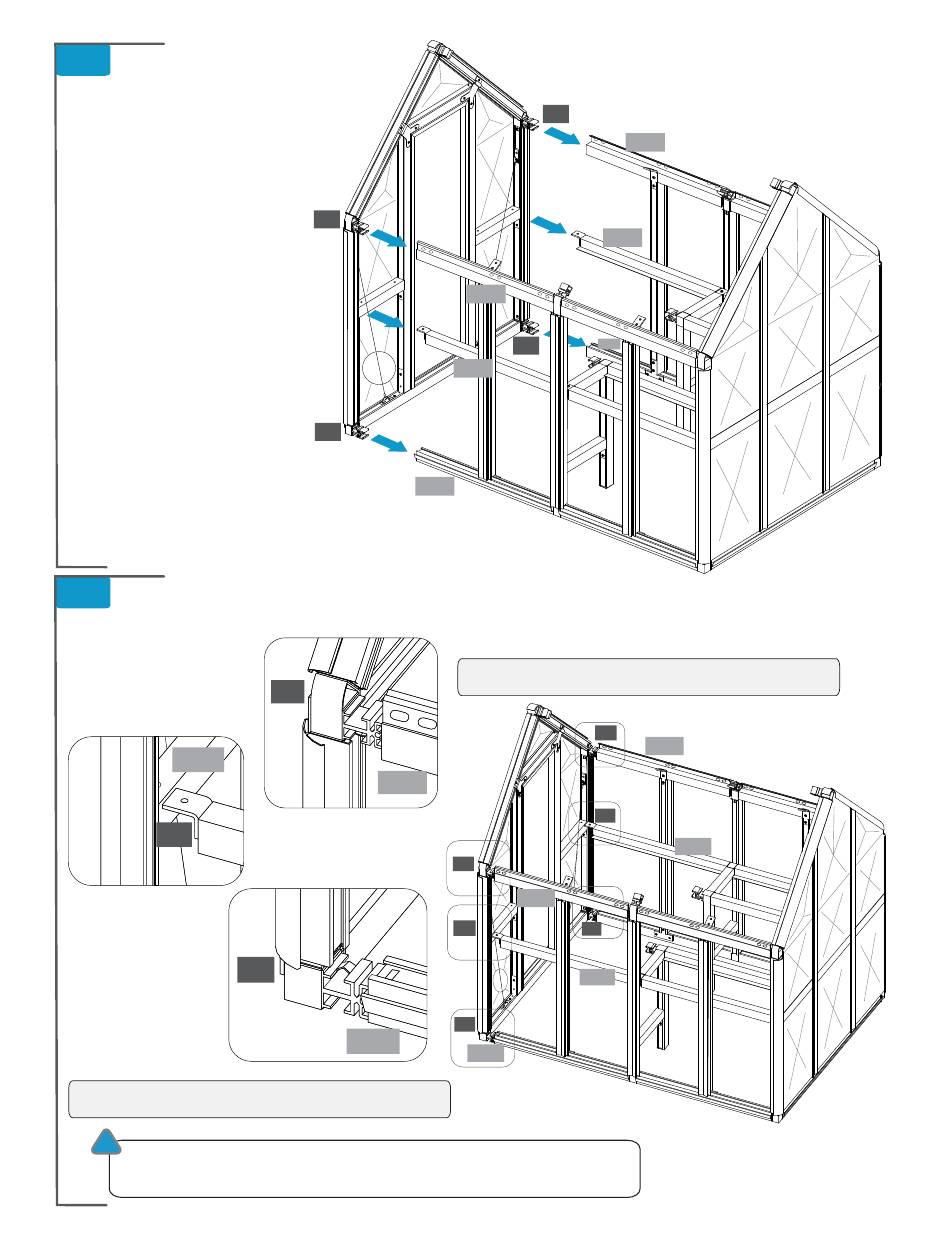

7.2A
Lift front from inside and rest it next
to sides. Line up connector S10 with
profile G07A, connector S09 with
profile G07B and connectors S04
and S05 with profiles G01C.
7.2B
Carefully pull the front until all connectors are half way inside each profile. Make sure connector
S37 attached to shelf profiles rest on top of profile G17B. Push front into sides until connectors
click into place.
G17B
S37
Connectors S04 and S05 CLICK into place.
!
There is only one way to properly fasten connectors into profiles. Line up parts
first to ensure correct placement. Slide connectors until they CLICK securely into
profile. Use WD40 or liquid soap if pieces do not easily slide together. Wear gloves.
www.stcny.com
S09
S04
G01C
S09
G07B
S04
G01C
S10
G14A
G07B
S05 G01C
G14B
Connectors S09 and S10 CLICK into place.
S10
S37
S09
G07B
S37
S05
G14B
S04
G01C
34 of 50
G07A
G07A
G14A
