STC Clear View Assembly Instructions Manual page 40

9.3

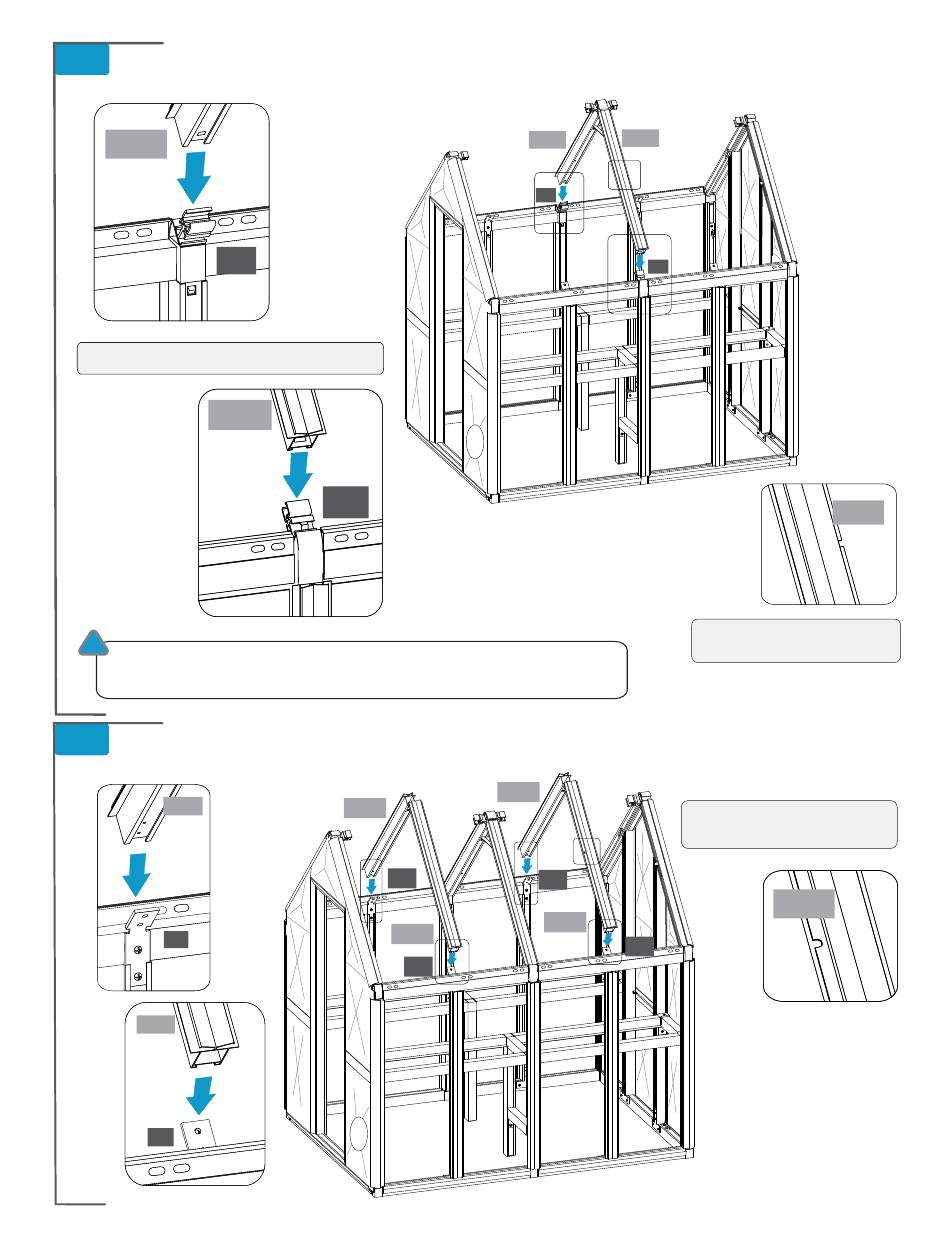

From the inside of the greenhouse, use two people to carefully lower center gable onto frame. Line
up and slide profiles G03G and G03H into connectors S19 until they click securely into place.
G03H
S19
Connectors S19 CLICK into place.
G03G
!
There is only one way to properly fasten connectors into profiles. Line up parts
first to ensure correct placement. Slide connectors until they CLICK securely into
profile. Use WD40 or liquid soap if pieces do not easily slide together. Wear gloves.
9.4
From the inside of the greenhouse, use two people to carefully lower front and back gables onto frame.
Line up and slide connectors S20 into channels of profiles G03E and G03F.
G03E
S20
G03F
S20
