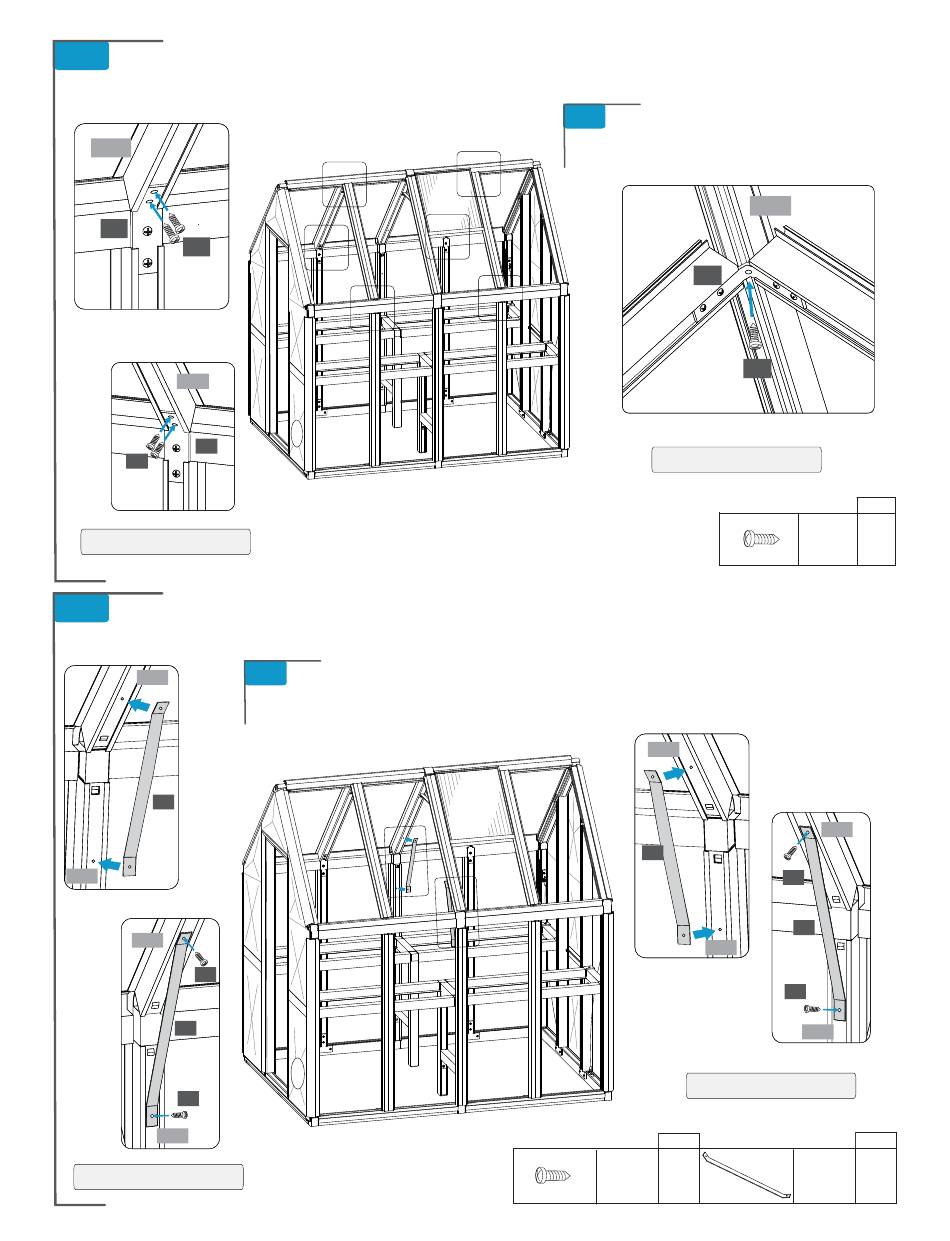

STC Clear View Assembly Instructions Manual page 42

9.7A
From inside of greenhouse secure S20 connectors
to profiles G03E and G03F with two S02 screws.
G03E
S20
S02
G03F
S20
S02
VIEWS FROM INSIDE.
9.8A
From inside of greenhouse, line up bracing profile bar S23 with holes in profiles Gand G03H. Secure
one S02 screw partially into each end. Then go back and tighten both screws.
G03H
S23
G03A
G03H
S02
S23
S02
G03A
VIEWS FROM INSIDE.
www.stcny.com
9.8B
Line up bracing bar S23 with holes in profiles G03A and G03G. Secure one
S02 screw partially into each end. Tighten both screws.
9.7B
Secure S22 connectors to profiles
G02G with one S02 screw.
Screw
#S02
40 of 50
G02G
S22
S02
VIEWS FROM INSIDE.
Screw
#S02
G03G
S23
S02
S23
G03A
S02
G03A
VIEWS FROM INSIDE.
Brace
QTY
4 #S23
QTY
10
G03G
QTY
2
