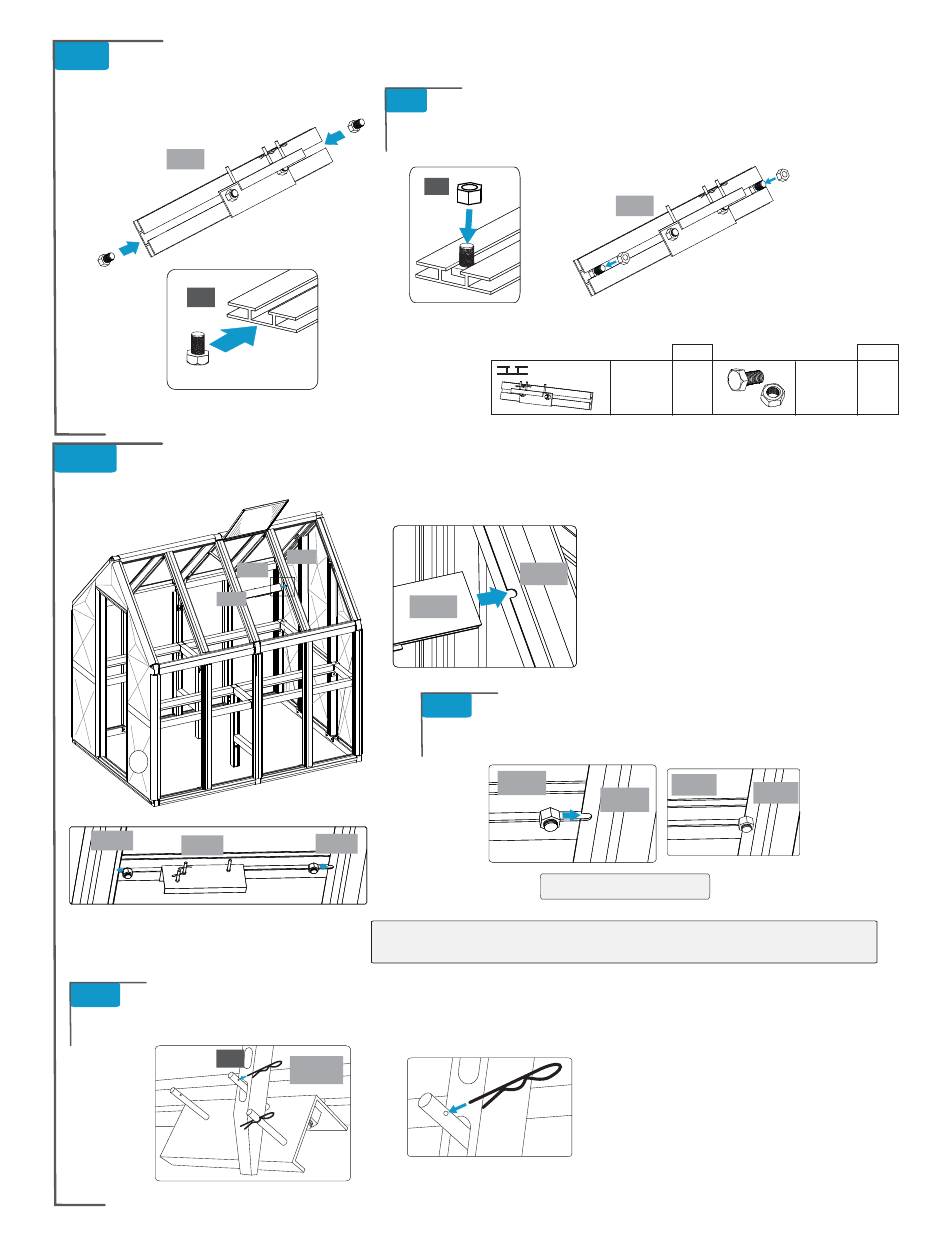

STC Clear View Assembly Instructions Manual page 43

9.9A
Slide three hex bolts S13 into channel of profile G05D.
G05D
S13
9.10A
With pins facing up on the inside of the greenhouse, slide one end of profile G05D into
V-channel of profile G03F. Angle it slightly to fit the other end into V-channel of profile G03G.
G05D
G03F
G05D
9.10C
Use the hairpin clips connected to G05D to secure the handle and prevent the vent from
opening and closing in high winds.
S25
www.stcny.com
9.9B
G03F
G03G
G05D
G03G
NOTE: G05D has two hairpin clips used to secure the handle of the vent
to prevent it from moving in high winds. See Step 9.10C for more details.
G05D
Screw two S14 hex nuts onto bolt on each end.
Do not completely tighten.
S14
Profile
G03F
9.10B
Line up G05D channel with U-shaped cutouts in
sides of profiles G03F and G03G. Slide hex nut and
bolts into U-shaped notches and tighten securely.
G05D
G03G
VIEWS FROM INSIDE.
41 of 50
G05D
Bolt/Nut
QTY
#G05D 1
G05D
G03G
QTY
#S13 2
#S14 2
