STC Clear View Assembly Instructions Manual page 9

1.3A

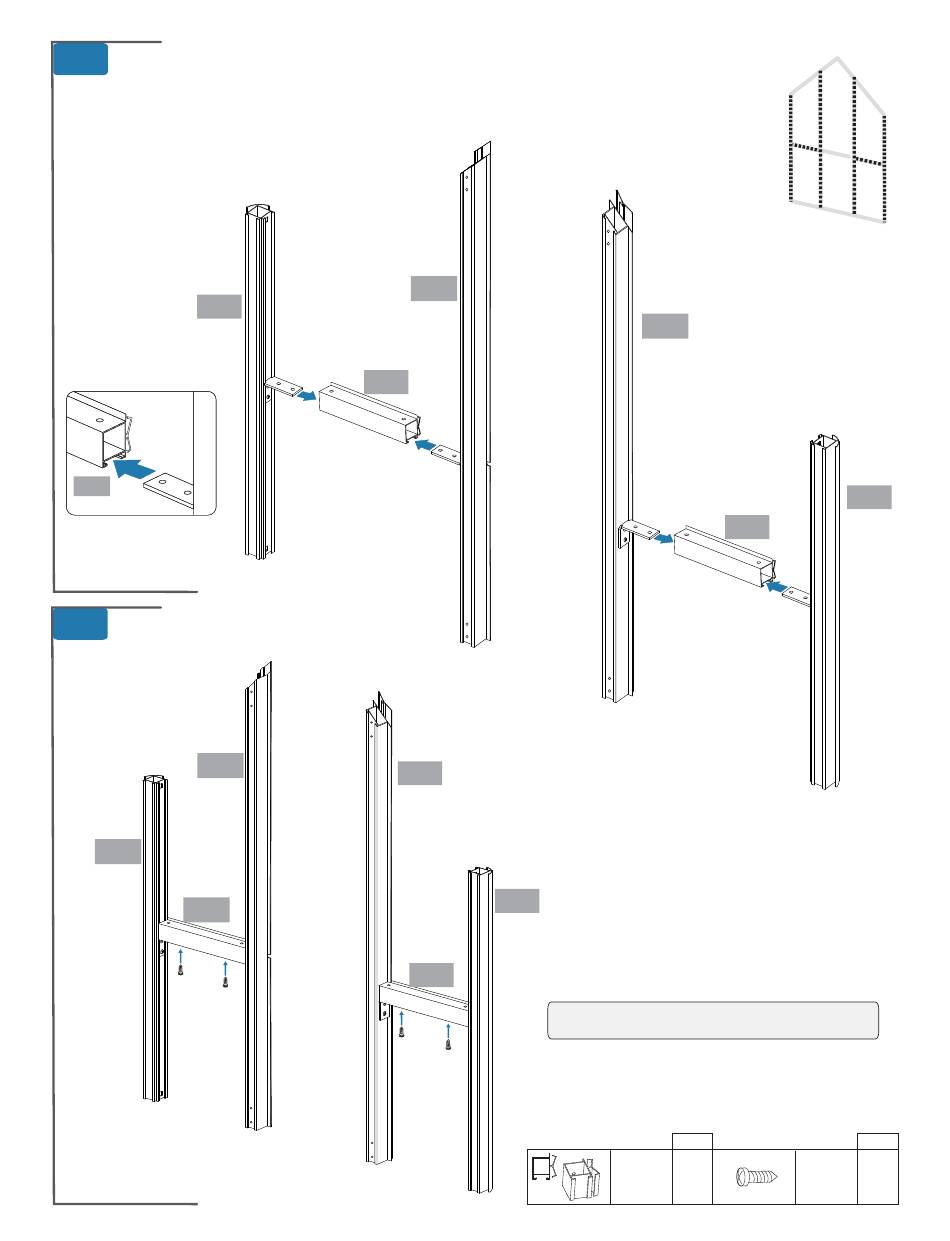

Attach profiles G02B and G03C to profile G17C by sliding the long sides of connector S01
into channels lining up last hole in S01 with holes in profile G17C. Attach profiles G03D
and G02A to profile G17D by sliding the long side of connector S01 into profile
channels lining up last hole of S01 with holes in G17D.
G02B
G17C
1.3B
Secure with four S02 screws.
G03C
G02B
G17C
www.stcny.com
G03C
G17C
G03D
G02A
G17D
Profile
7 of 50
G03D
G17D
NOTE: ALL VIEWS ARE FROM INSIDE.
Screw
QTY
#G17C 1
#G17D 1
G02A
QTY
#S02 4
