Adjust The Tilt - StarTech.com PROJWALLMNT User Manual

Turn the Grey Adjustment Knob in a Clockwise direction
2.
to adjust the Projected Image to the right.
- or -
Turn the Grey Adjustment Knob in a Counterclockwise
direction to adjust the Projected Image to the left. (Figure
14)
Figure 14
Tighten the Adjustment Screw, located next to the Grey
3.
Adjustment Knob, using the 10 mm Wrench.

Adjust the Tilt

Turn the Yellow Adjustment Knob in a Clockwise direction
•
to adjust the Projected Image down.
- or -
Turn the Yellow Adjustment Knob in a Counterclockwise
•

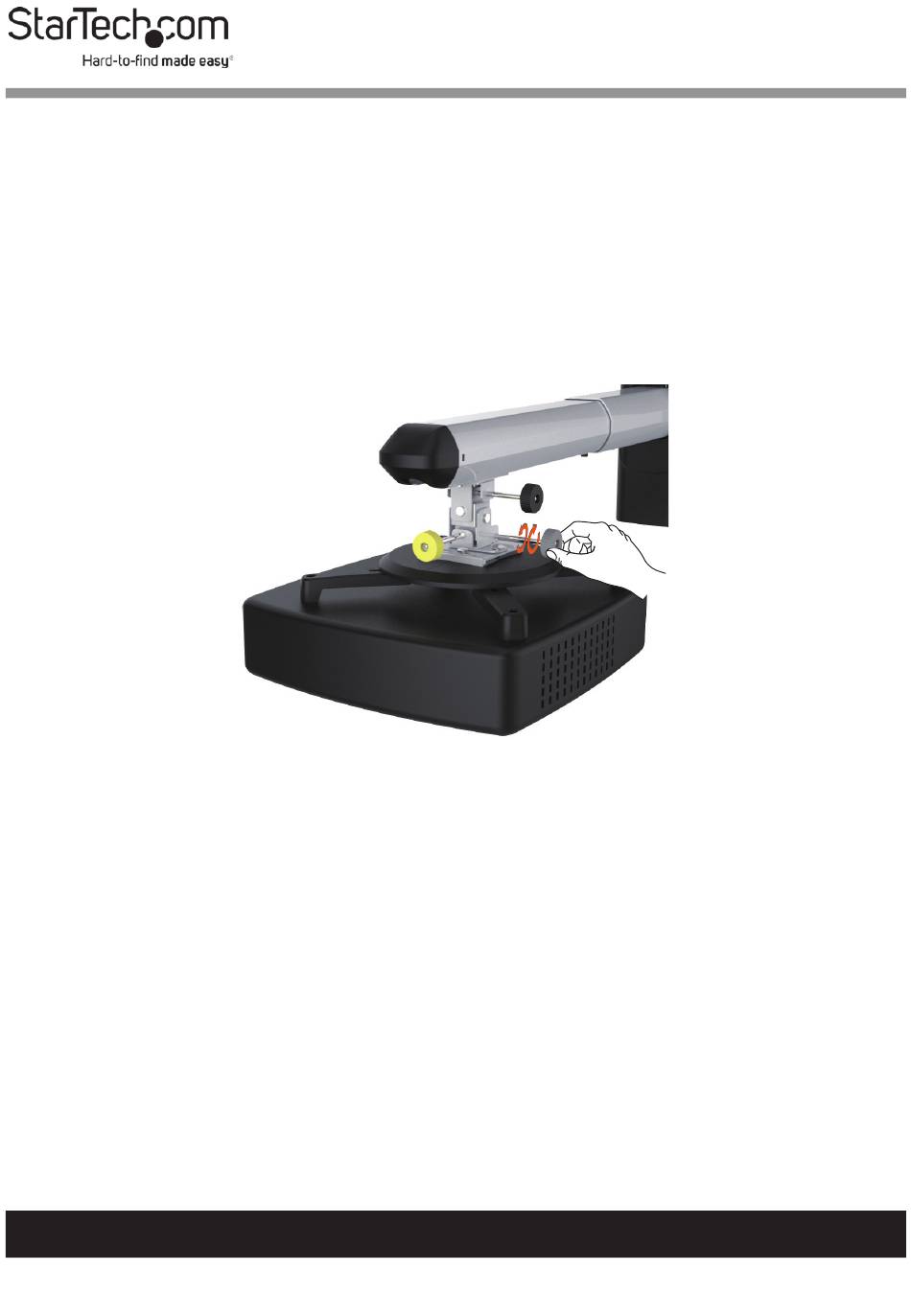

direction to adjust the Projected Image up. (Figure 15)
