Place the Mounting Arm Covers over the Mounting Arms.

Attach the Adjustment Module

Place the Adjustment Module onto the Mounting Arms.

Align the Variable Position Screws with the cutouts in the

Adjustment Module. (Figure 4)

Note: If the Adjustment Module does not fit onto the

Mounting Arms, loosen the M-Type Screws with a Phillips

Head Screwdriver and readjust the position of the

Mounting Arms. Tighten the M-Type Screws once the

correct position has been achieved.

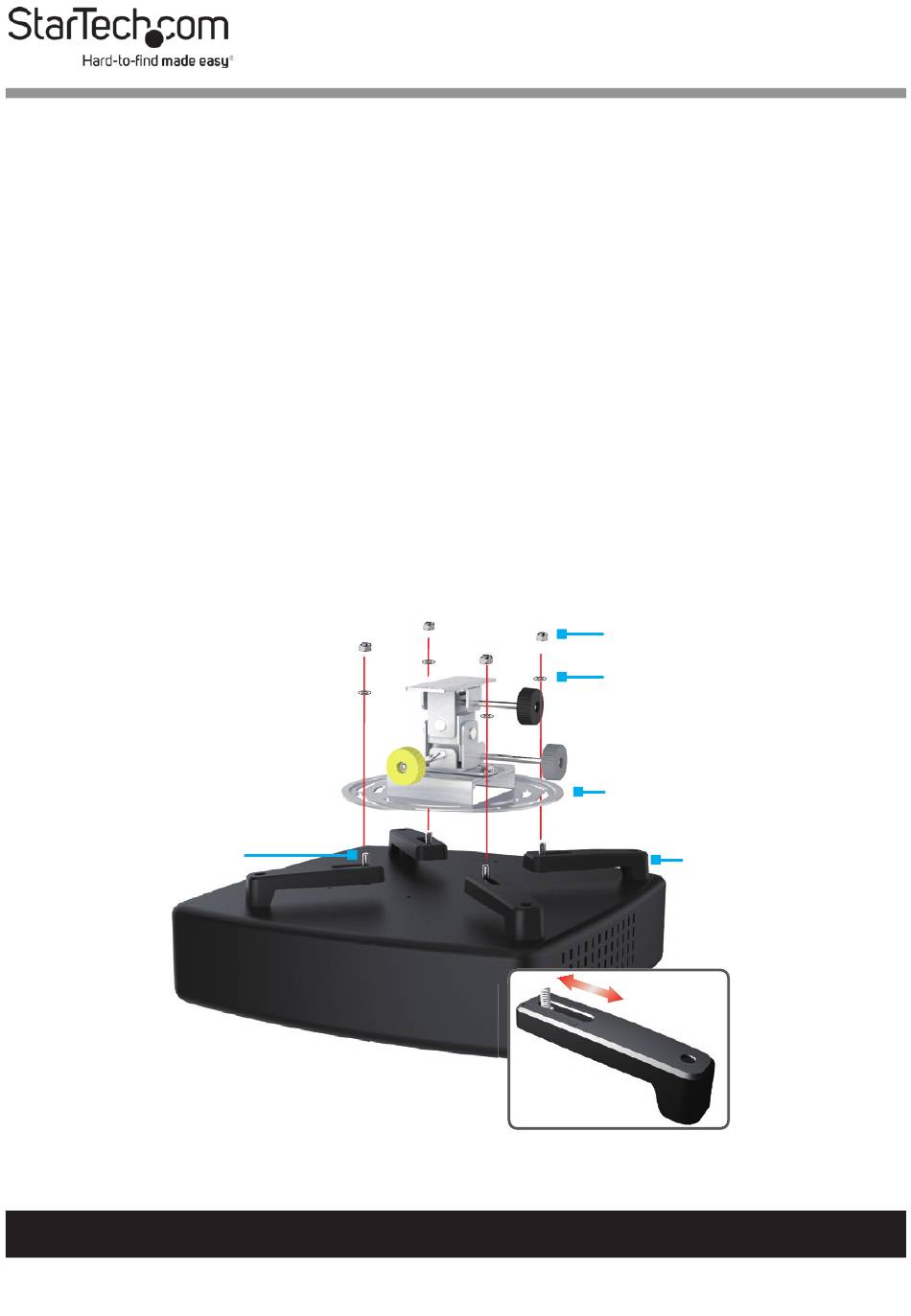

Figure 4

Variable Position

Screw

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Nut

Washer

Adjustment Module

Mounting Arm

Cover
