Attach The Mounting Arms - StarTech.com PROJWALLMNT User Manual

(Optional, For In-Wall Cable Management) Feed the Power
2.
and Video Cables into the Wall. Connect the Power Cable
to an available Power Source. Connect the Video Cable to
the Video Source Device.
Press the Projector Pole into the Wall Mount and hold the
3.
Projector Pole in place. Align the four holes in the Projector
Pole with the four holes in the Wall Mount.
Attach the Projector Pole to the Wall Mount
Thread the four M6 x 8 mm Hex Screws through the Wall
•
Mount and into the Projector Pole. Tighten using the 5 mm
Hex Key.

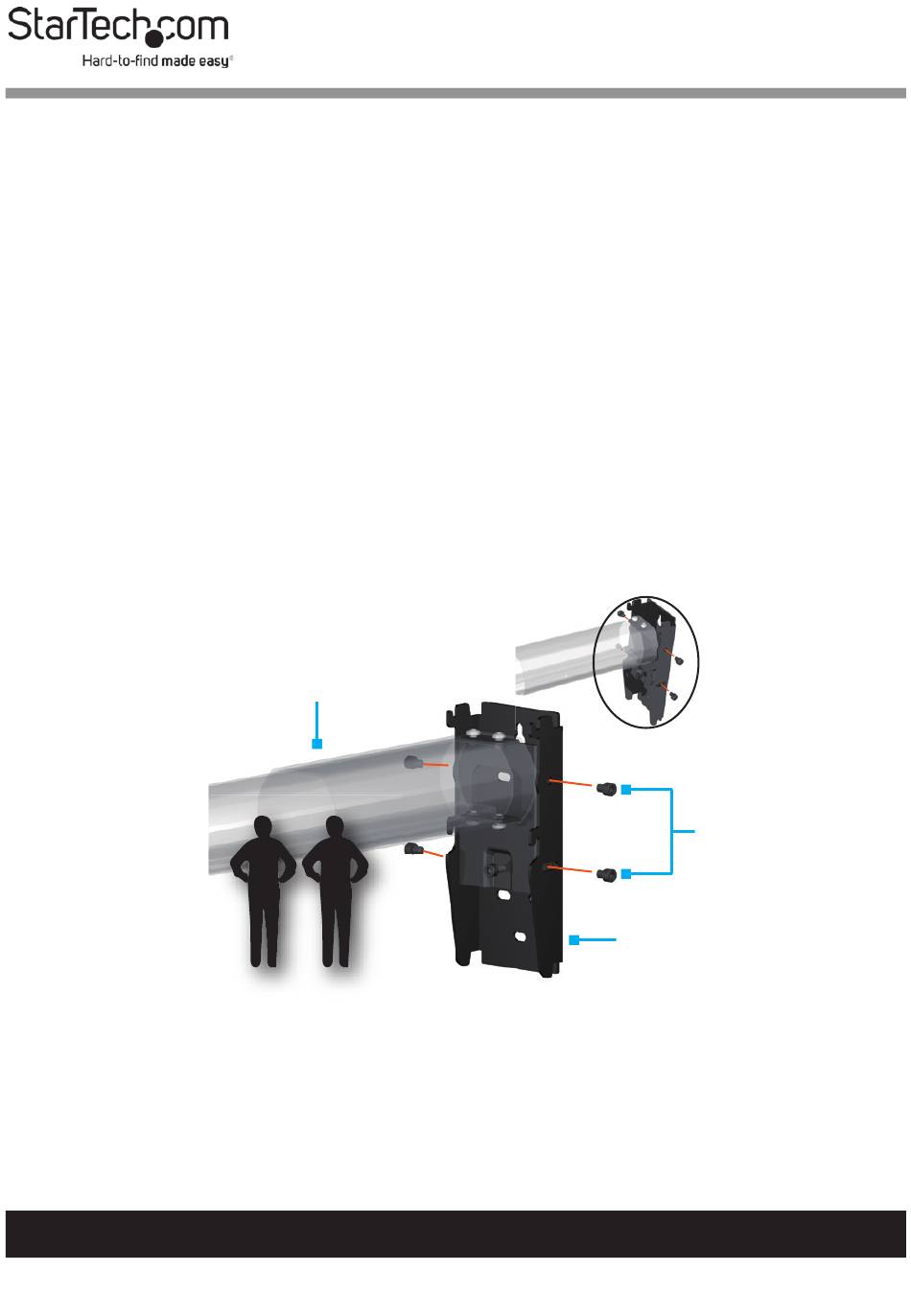

(Figure 2)
Figure 2

Attach the Mounting Arms

Place the Projector on a flat and level Surface, with the
1.
Mounting Holes facing upwards.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Projector Pole
Wall Mount
10
M6 x 8 mm Screws
