Adjust The Swivel - StarTech.com PROJWALLMNT User Manual

Loosen the four M6 x 8 mm Hex Screws on the side of the
2.
Wall Mount, using the 5 mm Hex Key.
Insert the M6 x 25 mm Hex Screw into the hole in the Wall
3.
Mount and tighten (angle up) or loosen (angle down), using

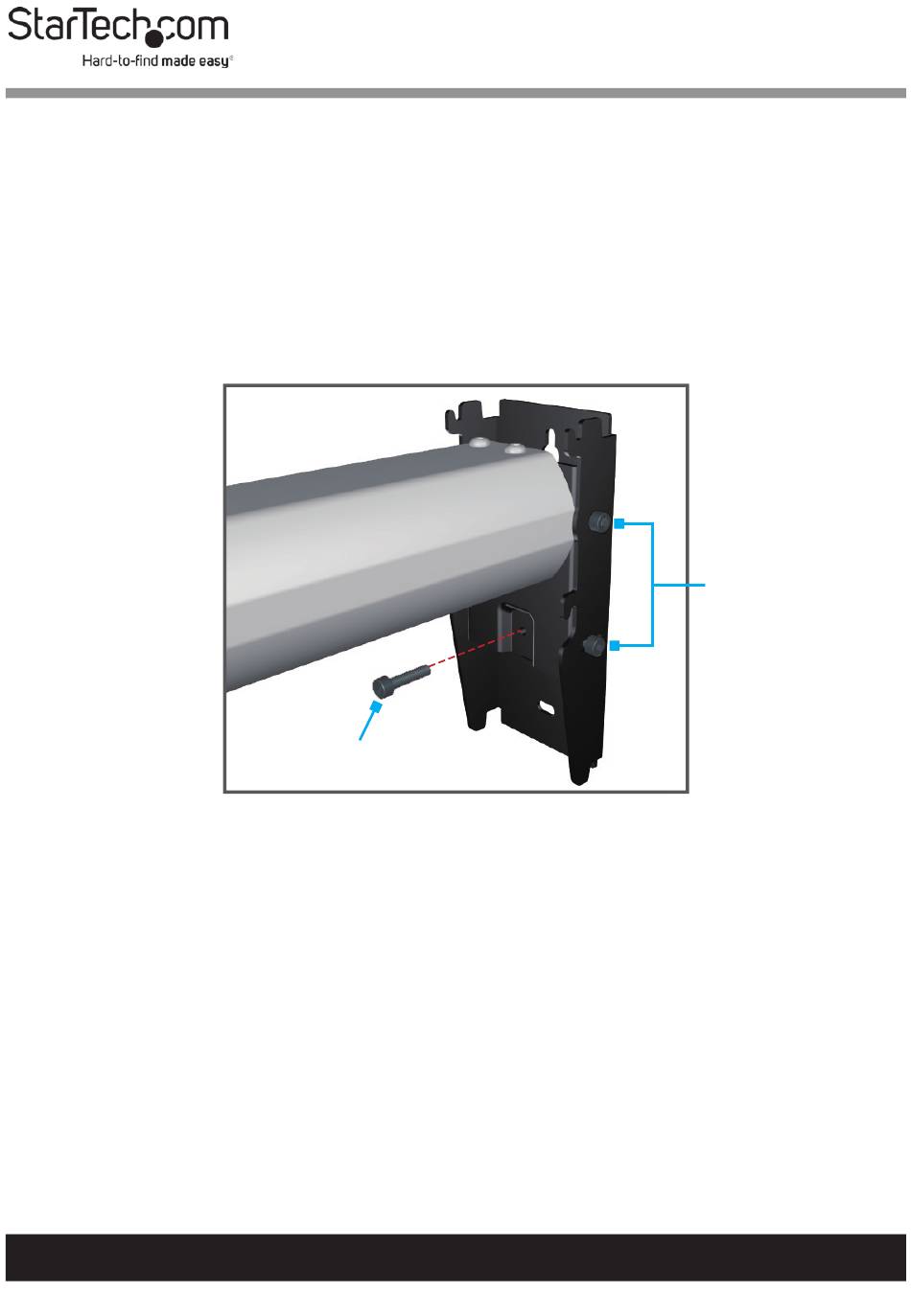

the 5 mm Hex Key until the desired angle is met. (Figure 13)
Figure 13
Tighten the four M6 x 8 mm Hex Screws on the side of the
4.
Wall Mount, using the 5 mm Hex Key.
Slide the Upper and Lower Decorative Covers together,
5.
over the Wall Bracket, until the two Covers snap into place.

Adjust the Swivel

Loosen the Adjustment Screw, located next to the Grey
1.
Adjustment Knob, using the 10 mm Wrench.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
M6 x 25 mm Hex Screw
19
M6 x 8 mm
Hex Screws
