Operating and installation instructions
SmartLine induction wok
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-AU, NZ
M.-Nr. 10 883 161

Advertisement

Table of Contents
loading

  Also See for Miele SmartLine CS 7611

Miele SmartLine Series Operating And Installation Instructions
Miele SmartLine Series Operating And Installation Instructions 72 pages
Miele CS 7611 Operating And Installation Instructions
Miele CS 7611 Operating And Installation Instructions 72 pages
Miele SmartLine CS 7611 Operating And Installation Instructions
Miele SmartLine CS 7611 Operating And Installation Instructions 68 pages

  Related Manuals for Miele SmartLine CS 7611

  Summary of Contents for Miele SmartLine CS 7611

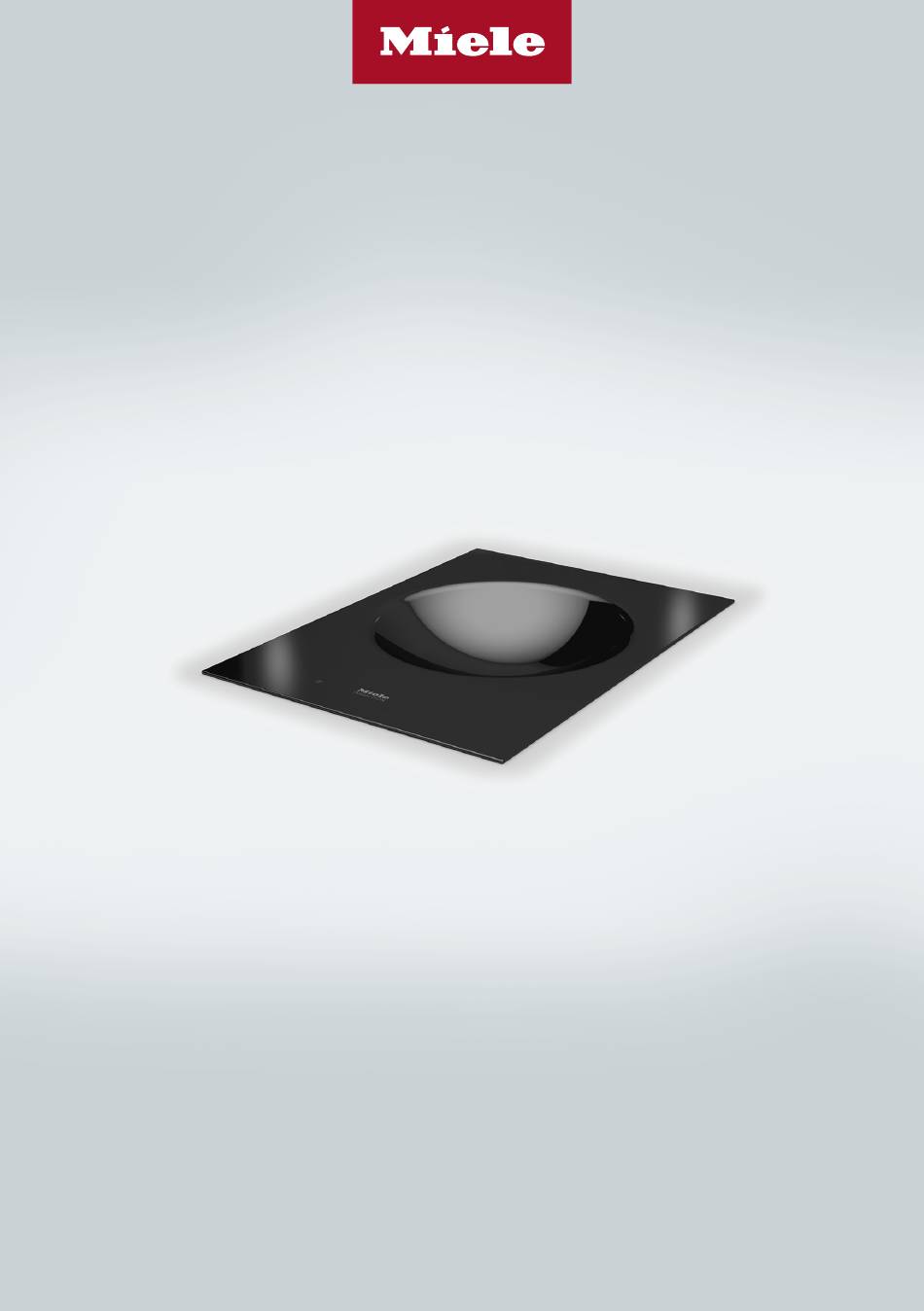

  • Page 1 Operating and installation instructions SmartLine induction wok To prevent the risk of accidents or damage to the appliance, it is essential to read these instructions before it is installed and used for the first time. en-AU, NZ M.-Nr. 10 883 161...

  • Page 2: Table Of Contents

    Contents Warning and Safety instructions................ 4 Caring for the environment ................ 14 Overview.......................  15 Wok burner ......................15 Controls / Indicators....................16 Cooking zone data ....................17 Accessories supplied .................... 18 Before using for the first time ................ 19 Cleaning the SmartLine appliance for the first time ..........19 Switching on the SmartLine appliance for the first time ........
  • Page 3 Contents Cleaning and care .................... 38 Problem solving guide .................. 40 Optional accessories .................. 44 Service........................ 45 Contact in case of fault ..................45 Data plate ......................45 Warranty ........................ 45 Installation...................... 46 Safety instructions for installation ................. 46 Safety distances....................47 Surface-mounted ....................

  • Page 4: Warning And Safety Instructions

    “Installation” and in “Warning and Safety instructions”. Miele cannot be held liable for injury or damage caused by non- compliance with these instructions. Keep these instructions in a safe place and pass them on to any...
  • Page 5 The wok burner is not suitable for outdoor use.  It is intended only to cook food and keep it warm. Any other use is not supported by Miele and could be dangerous.  This appliance is not intended for use by persons (including...
  • Page 6 Warning and Safety instructions Safety with children  Young children must not be allowed to use this appliance.  Older children may only use the gas wok burner if its operation has been clearly explained to them and they are able to use it safely. They must be aware of the potential dangers caused by incorrect operation.
  • Page 7 Unauthorised installation, maintenance and repairs (including removal of any cover) can cause considerable danger for the user. Installation, maintenance and repairs must only be carried out by a Miele authorised technician.  Damage to the wok burner can compromise your safety. Check the appliance for visible signs of damage.
  • Page 8  If the mains connection cable is damaged, it must be replaced with a special mains connection cable, available from Miele, by a Miele authorised service technician or suitably qualified and competent electrician in order to avoid a hazard (see “Installation - Electrical connection”).
  • Page 9 If you detect a fault during use switch it off immediately. Disconnect the wok from the electricity supply. Contact Miele.  If the wok burner is installed behind a furniture door, do not close the door while the appliance is in operation.
  • Page 10 Warning and Safety instructions Correct use  The wok gets hot when in use and remains hot for quite a while after being switched off. There is a danger of burning until the residual heat indicators go out.  Oil and fat can overheat and catch fire. Do not leave the wok burner unattended when cooking with oil and fat.
  • Page 11 Warning and Safety instructions  You could burn yourself on the hot wok. Protect your hands with heat-resistant pot holders or gloves when using a hot wok. Do not let them get wet or damp. This causes heat to transfer through the material more quickly with the risk of scalding or burning yourself.
  • Page 12 Warning and Safety instructions  For people fitted with a heart pacemaker: please note that the area immediately surrounding the wok is electromagnetically charged when it is switched on. It is very unlikely to affect a pacemaker. However, if in any doubt, consult the manufacturer of the pacemaker or your doctor.
  • Page 13 Warning and Safety instructions Cleaning and care  Do not use a steam cleaning appliance to clean this wok burner. Pressurised steam could reach the electrical components and cause a short circuit.  If the wok is built-in above a pyrolytic oven, do not use it during a Pyrolytic cleaning programme as this could trigger the overheating protection device on the wok (see “Safety features –...

  • Page 14: Caring For The Environment

    Caring for the environment Disposal of the packing Disposing of your old material appliance The transport and protective packaging Electrical and electronic appliances has been selected from materials which often contain valuable materials. They are environmentally friendly for also contain specific materials, disposal, and can normally be recycled.

  • Page 15: Overview

    Overview Wok burner a Wok basin b Controls / Indicators...

  • Page 16: Controls / Indicators

    Overview Controls / Indicators Sensor controls a Switching the wok on and off b Stop & Go c Wipe protection d Activating/Deactivating the keeping warm function e Numerical keybank For setting power levels/minute minder and switch-off times f Automatic switch-off timer g Minute minder Indicator lights h Automatic switch-off indicator light...

  • Page 17: Cooking Zone Data

    Overview Cooking zone data Wok basin Ø in cm Rating in watts for 230 V 30.0 Normal 2400 TwinBooster, level 1 2650 TwinBooster, level 2 3000...

  • Page 18: Accessories Supplied

    Overview Accessories supplied The accessories supplied with your appliance, as well as a range of optional ones, are available to order from Miele (see “Optional accessories”). Wok pan CSWP 1450...

  • Page 19: Before Using For The First Time

    Before using for the first time  Please stick the extra data plate for Switching on the SmartLine the appliance supplied with this appliance for the first time documentation in the space provided The metal components have a in the “Service” section of this protective coating.

  • Page 20: Induction

    Induction How it works  Risk of burning due to hot items. When the wok is switched on, either An induction coil is located under the wok basin. When the wok is switched deliberately or by mistake, or when there is residual heat present, there on, this coil creates a magnetic field is a risk of any metal items left on the which impacts directly on the base of...
  • Page 21 Induction Noises Suitable cookware The following noises might occur in the  Risk of fire with unsuitable wok wok pan when the induction wok is in pans. operation: If other woks are used, there is a risk On the higher power levels, the of fat or food overheating and appliance might buzz.

  • Page 22: Operation

    Operation Power level range  Malfunction due to dirty and/or covered sensor controls. Cooking process Power If the sensor controls are dirty or level covered this could cause them to fail range to react, to activate a function or Keeping food warm, melting even to switch the appliance off chocolate automatically (see “Safety features -...

  • Page 23: Switching On The Wok

    Operation Residual heat indicator  Risk of fire due to overheated food. If the SmartLine appliance is still hot, Unattended food can overheat and the residual heat indicator will light up ignite. after it has been switched off. Depending on the temperature, a dot Do not leave the SmartLine will appear above power levels 1, 2 and appliance unattended whilst it is...

  • Page 24: Auto Heat-Up

    Operation Auto heat-up Continued Heat-up time cooking setting* [min:sec] When Auto heat-up has been activated, the highest setting automatically Approx. 0:15 switches on and then switches to the Approx. 0:15 continued cooking setting which you have previously selected. The heat-up Approx.

  • Page 25: Booster

    Operation Activating TwinBooster, level 1 Booster  Place the wok pan in position. The wok is equipped with a TwinBooster.  Select a power level if necessary. When activated, the power is boosted  Touch the B sensor control. for a maximum of 15 minutes. The ...

  • Page 26: Keeping Warm

    Operation Activating/Deactivating the keeping Keeping warm warm function This function is for keeping food warm  Touch the  sensor. which has just been cooked and is still hot. It is not for reheating food that has gone cold. The maximum duration for keeping food warm is 2 hours.

  • Page 27: Timer

    Timer The SmartLine appliance has to be The functions can be used at the same switched on if you wish to use the timer. time. The shortest time is always displayed and the  sensor control A duration of between 1 minute (:) and 9 hours 59 minutes (:) can be (minute minder) or the indicator light for set.

  • Page 28: Switching Off A Cooking Zone Automatically

    Timer Switching off a cooking zone automatically You can set a time after which the cooking zone will switch off automatically. The switch-off time is set with the numerical keybank. If the time programmed is longer than the maximum operational time allowed, the safety switch-off will switch off the cooking zone after the maximum permitted safety time has...

  • Page 29: Additional Functions

    Additional functions Stop & Go Recall The set power level is reduced to 1 If the SmartLine appliance is when the Stop & Go function is accidentally switched off during use, activated. you can use this function to restore all The power levels and timer settings the settings.

  • Page 30: Wipe Protection

    Additional functions Wipe protection Displaying the SmartLine appliance data You can lock the SmartLine appliance The model designation and software sensor controls for 20 seconds in version of the SmartLine appliance can order, for example, to remove soiling. be displayed. To do this, there must not The  sensor control is not locked.

  • Page 31: Safety Features

    Safety features The safety lock is activated while the System lock / Safety lock SmartLine appliance is switched on. The safety lock is deactivated if there When the safety lock is activated, the is an interruption to the power appliance can be operated only in a supply.
  • Page 32 Safety features Activating the safety lock  Touch and hold the  and  sensors at the same time for 6 seconds. The seconds can be seen counting down in the timer display. When this time has elapsed  will appear in the timer display.

  • Page 33: Safety Switch-Off

    Safety features Safety switch-off Power level* Maximum operating time [h:min] Sensor controls are covered Safety setting Your SmartLine appliance will turn off automatically if one or several of the 10:00 8:00 5:00 sensor controls remain covered for longer than 10 seconds, for example, 10:00 7:00 4:00...

  • Page 34: Overheating Protection

    – The set power level is reduced. If, despite removing the cause, the overheating protection mechanism – The cooking zone switches off triggers again, contact Miele. automatically.  will flash alternately with  in the timer display. You can use the cooking zone again as usual when the fault message has gone out.

  • Page 35: Programming

    Programming You can adapt the programming of the Changing the programming SmartLine appliance to your personal Calling up programming mode needs. Several settings can be altered in succession.  With the SmartLine appliance switched off, press and hold the  After accessing the programming and  sensor controls together until mode, the ...
  • Page 36 Programming Settings Programme Code P:01 Demonstration mode C:00 Demonstration mode off C:01 Demonstration mode on P:03 Factory settings C:00 Do not restore the factory settings C:01 Restore factory settings P:04 Number of power levels C:00 9 power levels C:01 17 power levels P:06 Confirmation tone when a C:00...
  • Page 37 Programming Settings Programme Code P:15 Permanent pan recognition C:00 Not active C:01 Active  Programmes not shown here have no allocation. The factory setting is shown in bold. After the SmartLine appliance has been switched on,  appears in the timer display for a few seconds.

  • Page 38: Cleaning And Care

    Cleaning and care  Allow the SmartLine appliance to Risk of burning due to hot cool down before cleaning. surfaces. The surfaces will be hot after use.  Clean the SmartLine appliance and Switch the wok off. accessories after each use. Allow the surfaces to cool down ...
  • Page 39 (spots with a metallic appearance) can be removed Do not use washing-up liquid to using the Miele ceramic and stainless clean the appliance. Using washing- steel cooktop cleaner. up liquid will not remove all soiling ...

  • Page 40: Problem Solving Guide

    With the help of the following guide, minor faults in the performance of the appliance, some of which may result from incorrect operation, can be remedied without contacting Miele. This will save you time and money because you won't need a service call.
  • Page 41 Problem solving guide Problem Possible cause and remedy After the SmartLine The system lock or safety lock is activated. appliance has been  Deactivate the system lock or safety lock (see switched on or a sensor “Safety features - System lock / Safety lock”). control has been touched, ...
  • Page 42 SmartLine appliance or sensor controls.  Interrupt the power supply to the SmartLine appliance for approx. 1 minute.  If the problem persists after power is restored, please contact Miele.  flashes alternately The SmartLine appliance is connected incorrectly. with  in the timer ...
  • Page 43 Remove the cause of the blockage.  If this fault code continues to appear in the display, contact Miele.  and other numbers There is a fault in the electronic module.  Interrupt the power supply to the SmartLine appliance for approx.

  • Page 44: Optional Accessories

    These products can be ordered from the Miele online shop. They can also be ordered directly from Removes heavy soiling, limescale Miele (see end of this booklet for deposits and aluminium residues. contact details). Original Miele all purpose microfibre Wok pan CSWP 1450 cloth Removes finger marks and light soiling.

  • Page 45: Service

    Service Contact in case of fault In the event of any faults which you cannot remedy yourself, please contact Miele. Contact information for Miele can be found at the end of this booklet. Please quote the model and serial number of your appliance when contacting Miele.

  • Page 46: Installation

    *INSTALLATION* Installation Safety instructions for installation  Risk of damage from incorrect installation. Incorrect installation can cause damage to the SmartLine appliance. The SmartLine appliance must only be installed by a suitably qualified and competent person.  Risk of electric shock! Incorrect connection to the power supply may result in an electric shock.

  • Page 47: Safety Distances

    *INSTALLATION* Installation Safety distances Safety distance above the SmartLine element The safety distance specified by the manufacturer of the cooker hood must be maintained between the SmartLine element and the cooker hood above it. If combustible objects are installed above the SmartLine element (e.g. cabinets, utensil rail, etc.), a minimum safety distance of 600 mm must be maintained.
  • Page 48 *INSTALLATION* Installation Safety distances to the sides and Minimum safety distance underneath back of the appliance the SmartLine appliance The SmartLine appliance should To ensure proper ventilation of the preferably be installed with plenty of SmartLine appliance, a minimum safety space on the right and left.

  • Page 49: Surface-Mounted

    *INSTALLATION* Installation Tiled worktop Surface-mounted Installation notes – surface-mounted Sealing between the SmartLine appliance and the worktop Grout lines  and the hatched area underneath the SmartLine appliance frame must be smooth and even. If they are not, the SmartLine appliance will not sit flush with the worktop and the sealing strip underneath the top part of the appliance will not provide a good...
  • Page 50 *INSTALLATION* Installation Installing several SmartLine appliances The gaps between the individual SmartLine appliances must be sealed with a silicone sealant that is heat- resistant to at least 160 °C. With flush- fit installation, the gap between the SmartLine appliance(s) and the worktop must also be sealed with a silicone sealant that is heat-resistant to at least 160 °C.

  • Page 51: Worktop Cut-Out - Surface-Mounted

    *INSTALLATION* Installation Worktop cut-out – surface-mounted ß R 4 Information for calculating the cut-out The appliances overlap the worktop by 10 mm. When installing several appliances, a distance of 2 mm must be observed between the individual appliances. Calculating cut-out dimension B 1 appliance = width of the appliance minus 10 mm on the right, minus 10 mm on the left Several appliances = total width of the appliances plus 2 mm distance between the appliances, minus 10 mm on the right, minus 10 mm on the left.
  • Page 52 *INSTALLATION* Installation Installation with a downdraft extractor Sample combinations Number x width [mm] Dimension  B Cooking Downdraft [mm] appliances extractor 1 x 378 1 x 120 2 x 378 1 x 120 1 x 378 2 x 120 1224 1 x 620 3 x 378 2 x 120 1362 2 x 378 2 x 120...
  • Page 53 *INSTALLATION* Installation Installation without a downdraft extractor Sample combinations Number x width [mm] Dimension B [mm] Cooking appliances 1 x 378 2 x 378 1 x 378 1 x 620 3 x 378 1118 2 x 378 1360 1 x 620 4 x 378 1498...

  • Page 54: Spacer Bars - Surface-Mounted

    *INSTALLATION* Installation Spacer bars – surface-mounted When installing several SmartLine appliances, an additional spacer bar must be fitted in between the individual appliances. The clips supplied with the spacer bars are only required for installing a CSDA 700x FL. Installing 3 appliances and 2 spacer bars...

  • Page 55: Installation Dimensions - Surface-Mounted

    *INSTALLATION* Installation Installation dimensions – Surface-mounted All dimensions in this instruction booklet are given in mm. a Front b Mains connection cable, L = 2000 mm...

  • Page 56: Installation - Surface-Mounted

    *INSTALLATION* Installation Wooden worktops Installation – surface-mounted Preparing the worktop  Create the worktop cut-out. Remember to maintain the minimum safety distances (see "Installation – Safety distances").  Seal the cut surfaces of wooden worktops with a suitable sealant to avoid swelling caused by moisture.
  • Page 57 *INSTALLATION* Installation Installing the SmartLine appliance Unsuitable sealant can damage natural stone.  Stick the supplied sealing strip under the edge of the SmartLine appliance. For natural stone worktops and Do not apply the sealing strip under natural stone tiles, only use silicone tension.

  • Page 58: Flush-Fit

    *INSTALLATION* Installation Natural stone worktops Flush-fit The SmartLine appliance is set directly Installation notes – in the cut-out. flush-fit Solid wood worktops, tiled worktops, glass worktops Flush-fit installation is only possible in natural stone (granite, marble), solid The SmartLine appliance is set on a wood and tiled worktops.
  • Page 59 *INSTALLATION* Installation Installing several SmartLine appliances The gaps between the individual SmartLine appliances must be sealed with a silicone sealant that is heat- resistant to at least 160 °C. With flush- fit installation, the gap between the SmartLine appliance(s) and the worktop must also be sealed with a silicone sealant that is heat-resistant to at least 160 °C.

  • Page 60: Worktop Cut-Out - Flush-Fit

    *INSTALLATION* Installation Worktop cut-out – flush-fit ß R 4 +0,5 * +0,5 * Natural stone worktop Wooden worktop + 0.5  mm with CS 7611 FL Information for calculating the cut-out The appliances overlap the stepped cut-out by 10 mm. When installing several appliances, a distance of 2 mm must be observed between the individual appliances.
  • Page 61 *INSTALLATION* Installation Installation with a downdraft extractor Number x width [mm] Dimension A Dimension B Cooking Downdraft Sample combinations [mm] [mm] appliances extractor 1 x 378 1 x 120 2 x 378 1 x 120 1 x 378 2 x 120 1248 1224 1 x 620 3 x 378 2 x 120 1386 1362...
  • Page 62 *INSTALLATION* Installation Installation without a downdraft extractor Sample Number x width Dimension A Dimension B combinations [mm] [mm] [mm] Cooking appliances 1 x 378 2 x 378 1 x 378 1004 1 x 620 3 x 378 1142 1118 2 x 378 1384 1360 1 x 620 4 x 378 1522 1498...

  • Page 63: Spacer Bars - Flush-Fit

    *INSTALLATION* Installation Spacer bars – flush-fit When installing several SmartLine appliances, an additional spacer bar must be fitted in between the individual appliances. The clips supplied with the spacer bars are only required for installing a CSDA 700x FL. Installing 3 appliances and 2 spacer bars...

  • Page 64: Installation Dimensions - Flush

    *INSTALLATION* Installation Installation dimensions – Flush All dimensions in this instruction booklet are given in mm. a Front b Mains connection cable, L = 2000 mm c Stepped cut-out (for detailed illustrations, see “Installation – Worktop cut-out – flush-fit”) d 12 mm wooden frame (not supplied, for detailed illustrations, see “Installation – Worktop cut-out –...

  • Page 65: Installation - Flush-Fit

    *INSTALLATION* Installation Wooden worktops Installation – flush-fit Preparing the worktop  Create the worktop cut-out. Remember to maintain the minimum safety distances (see "Installation – Safety distances").  Seal the cut surfaces of wooden worktops with a suitable sealant to avoid swelling caused by moisture.
  • Page 66 *INSTALLATION* Installation Installing the SmartLine appliance  Stick the supplied sealing strip under the edge of the SmartLine appliance. Do not apply the sealing strip under tension.  Feed the mains connection cable down through the worktop cut-out.  Position the SmartLine appliance in the worktop cut-out.

  • Page 67: Electrical Connection

    The connection data is given on the and repairs can be dangerous to data plate. Please ensure this users. information matches the household Miele cannot be held liable for mains supply. damage or injury (e.g. electric shock) caused by unauthorised installation, Residual current device...
  • Page 68 When replacing the mains connection cable, it must be replaced with cable type H 05 VV-F by a Miele authorised service technician or a suitably qualified and competent electrician in order to avoid a hazard. These cables are...
  • Page 71 Miele Experience Centre South Melbourne: Auckland: 206-210 Coventry Street 8 College Hill South Melbourne, VIC 3205 Freemans Bay, Auckland 1011 Miele Experience Centre and Office Sydney: Miele Experience Centre Wellington: 3 Skyline Place Frenchs Forest, NSW 2086 183 Featherston Street...
  • Page 72 CS 7611 en-AU, NZ M.-Nr. 10 883 161 / 01...
