Operating and installation instructions
SmartLine induction wok
To avoid the risk of accidents or damage to the appliance it is essential
to read these instructions before it is installed and used for the first time.
en-GB
M.-Nr. 10 803 061

Advertisement

Table of Contents
loading

  Related Manuals for Miele SmartLine Series

  Summary of Contents for Miele SmartLine Series

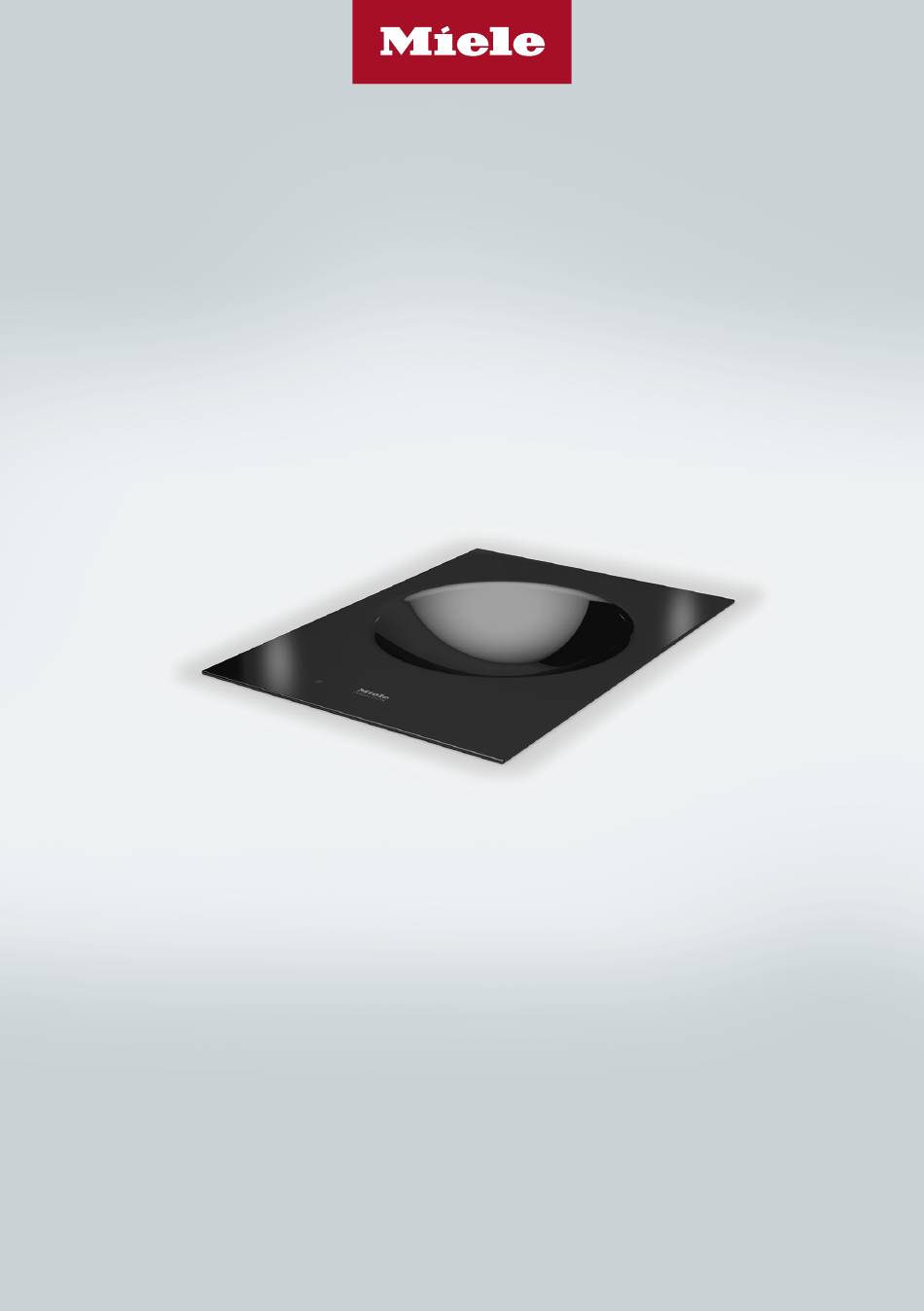

  • Page 1 Operating and installation instructions SmartLine induction wok To avoid the risk of accidents or damage to the appliance it is essential to read these instructions before it is installed and used for the first time. en-GB M.-Nr. 10 803 061...

  • Page 2: Table Of Contents

    Contents Warning and Safety instructions................ 4 Caring for the environment ................ 14 Guide to the appliance .................. 15 Wok ........................15 Controls / Indicators....................16 Cooking zones....................... 17 Accessories supplied .................... 18 Before using for the first time ................ 19 Cleaning the SmartLine element for the first time..........
  • Page 3 Contents Cleaning and care .................... 38 Problem solving guide .................. 40 Optional accessories .................. 44 After sales service.................... 45 Contact in case of malfunction ................45 Data plate ......................45 Warranty ........................ 45 Installation...................... 46 Safety instructions for installation ................. 46 Safety distances....................

  • Page 4: Warning And Safety Instructions

    Miele cannot be held liable for injury or damage caused by non- compliance with these instructions. Keep these instructions in a safe place and pass them on to any...
  • Page 5 Warning and Safety instructions Correct application  This wok is designed for domestic use and for use in similar envir- onments.  This wok is not intended for outdoor use.  This wok is intended for domestic use only to cook food and keep it warm.
  • Page 6 Warning and Safety instructions Safety with children  Children under 8 years of age must be kept away from the wok unless they are constantly supervised.  Children aged 8 and older may only use the wok without supervi- sion if they have been shown how to use it in a safe manner. Chil- dren must be able to understand and recognise the possible dangers caused by incorrect operation.
  • Page 7  Unauthorised installation, maintenance and repairs can cause considerable danger for the user. Installation, maintenance and re- pairs must only be carried out by a Miele authorised technician.  Damage to the wok can compromise your safety. Check the wok for visible signs of damage.
  • Page 8 Miele authorised service technician. Otherwise the war- ranty is invalidated.  Miele can only guarantee the safety of the appliance when genu- ine original Miele replacement parts are used. Faulty components must only be replaced by Miele spare parts.
  • Page 9 Warning and Safety instructions  If the wok is built in behind a furniture front (e.g. a door), do not close the furniture door while the wok is in use. Heat and moisture can build up behind the closed furniture door. This can result in dam- age to the wok, the housing unit and the floor.
  • Page 10 Warning and Safety instructions Correct use  The wok gets hot when in use and remains hot for some time after being switched off. The risk of burning is present until the residual heat indicators have gone out.  Overheated fat and oil can ignite and catch fire. Never leave the wok unattended.
  • Page 11 Warning and Safety instructions  You could burn yourself on the hot wok. Protect your hands with heat-resistant pot holders or gloves when using a hot wok. Do not let them get wet or damp. Heat transfers through damp and wet mater- ial more quickly with the risk of scalding or burning yourself.
  • Page 12 Warning and Safety instructions  Heat oil or fat for a maximum of one minute. Never use the Booster function to heat oil or fat.  For people fitted with a heart pacemaker: please note that the area immediately surrounding the wok is electromagnetically charged.
  • Page 13 Warning and Safety instructions Cleaning and care  Do not use a steam cleaning appliance to clean this wok. The steam could reach electrical components and cause a short cir- cuit.  If the wok is built-in above a pyrolitic oven or cooker, do not use it during a Pyrolytic cleaning programme as this could trigger the over- heating protection device on the wok (see “Safety features”...

  • Page 14: Caring For The Environment

    / recycling centre for electrical and electronic ap- pliances, or contact your dealer or Miele for advice. You are also respons- ible for deleting any personal data that may be stored on the appliance being disposed of. Please ensure that your old appliance poses no risk to children while being stored prior to disposal.

  • Page 15: Guide To The Appliance

    Guide to the appliance a Wok basin b Controls / Indicators...

  • Page 16: Controls / Indicators

    Guide to the appliance Controls / Indicators Sensor controls a Switching the wok on and off b Stop & Go c Wipe protection d Activating/deactivating the keeping warm function e Numerical keybank For setting power levels/minute minder and switch-off times f Automatic switch-off g Minute minder Indicator lights h Automatic switch-off...

  • Page 17: Cooking Zones

    Guide to the appliance Cooking zones Wok basin Ø in cm* Rating in watts for 230 V** 30.0 Normal 2400 TwinBooster, level 1 2650 TwinBooster, level 2 3000...

  • Page 18: Accessories Supplied

    Guide to the appliance Accessories supplied The accessories supplied with your ap- pliance as well as a range of optional ones are available to order from Miele (see “Optional accessories”). Wok pan CSWP 1450...

  • Page 19: Before Using For The First Time

    Before using for the first time  Please stick the extra data plate for Switching on the SmartLine the appliance supplied with this doc- element for the first time umentation in the space provided in The metal components have a protect- the “After sales service”...

  • Page 20: Induction

    Induction How it works  Risk of burning due to hot items. When the wok is switched on either An induction coil is located under the wok basin. When the wok is switched deliberately or by mistake, or when there is residual heat present, there on, this coil creates a magnetic field which impacts directly on the base of is the risk of any metal items left on...
  • Page 21 Induction Noises Pans The following noises might occur in the  Risk of fire with unsuitable wok wok pan when the induction wok is in pans operation: If other woks are used, there is a risk Buzzing on the higher power settings. of fat or food overheating, and burn- This will decrease or cease altogether ing.

  • Page 22: Operation

    Operation Settings  Malfunction due to dirty and/or covered sensor controls. Cooking process Setting If the sensor controls are dirty or range covered this could cause them to fail Keeping food warm, melting to react, to activate a function or chocolate even to switch the appliance off Warming food up...

  • Page 23: Switching On The Wok

    Operation Residual heat indicator  Risk of fire with overheated food. Unattended food can overheat and If the SmartLine element is still hot, the catch alight. residual heat indicator will light up after it has been switched off. Depending on Do not leave the SmartLine element the temperature, a dot will appear unattended whilst it is being used.

  • Page 24: Auto Heat-Up

    Operation Auto heat-up Continued cook- Heat-up time ing setting* [min : sec] When Auto heat-up has been activated, the cooking zone switches on automat- Approx. 0:15 ically at the highest setting and then Approx. 0:15 switches to the continued cooking set- ting which you have previously selec- Approx.

  • Page 25: Booster

    Operation Activating TwinBooster, level 1 Booster  Place the wok pan in position. The wok is equipped with a Twin- Booster.  Select a power level if necessary. When activated, the power is boosted  Touch the B sensor control. for a maximum of 15 minutes. The indicator ...

  • Page 26: Keeping Warm

    Operation Activating/deactivating the keeping Keeping warm warm function This function is for keeping food warm  Touch the  sensor control. which has just been cooked and is still hot. It is not for reheating food that has gone cold. The maximum duration for keeping food warm is 2 hours.

  • Page 27: Timer

    Timer The SmartLine element has to be The functions can be used at the same switched on if you wish to use the timer. time. The shortest time is always dis- played and the  sensor control A duration of between 1 minute (:) and 9 hours 59 minutes (:) can be (minute minder) or the indicator light for set.

  • Page 28: Switching Off A Cooking Zone Automatically

    Timer the  sensor repeatedly until the in- Switching off a cooking zone dicator light for the zone you require automatically flashes. You can set a time after which the Changing the switch-off time cooking zone will switch off automatic- ally.

  • Page 29: Additional Functions

    Additional functions Stop & Go Recall The set power level is reduced to 1 If the SmartLine element is accidentally when the Stop & Go function is activ- switched off during use, you can use ated. this function to restore all the settings. The power levels and timer settings The SmartLine element must be cannot be changed;...

  • Page 30: Wipe Protection

    Additional functions Wipe protection Displaying the SmartLine ele- ment data You can lock the SmartLine element The model designation and software sensor controls for 20 seconds in or- version of the SmartLine element can der to remove soiling, for example. be displayed.

  • Page 31: Safety Features

    Safety features The safety lock is activated when the System lock / Safety lock SmartLine element is switched on. The lock function is deactivated if When the safety lock is activated, the there is a break in the mains supply. element can be operated only under certain conditions: Your SmartLine element is equipped...
  • Page 32 Safety features Activating the safety lock  Touch and hold the  and  sensors at the same time for 6 seconds. The seconds can be seen counting down in the timer display. When this time has elapsed  will appear in the timer display.

  • Page 33: Safety Switch-Off

    Safety features Safety switch-off Power level* Maximum operating time [h:min] Sensor controls are covered Safety setting Your SmartLine element will turn off automatically if one or several of the 10:00 8:00 5:00 sensor controls remain covered for longer than 10 seconds, for example, 10:00 7:00 4:00...

  • Page 34: Overheating Protection

    Safety features The overheating protection may be ac- Overheating protection tivated under the following circum- All the induction coils and cooling ele- stances: ments for the electronics are fitted with – The pan being heated is empty. an overheating protection mechanism. Before the induction coils and/or cool- –...

  • Page 35: Programming

    Programming You can adapt the programming of the Changing the programming SmartLine element to your personal Accessing programming mode needs. Several settings can be altered in succession.  With the SmartLine element switched off, press and hold the  After accessing the programming and  sensor controls together until mode, the ...
  • Page 36 Programming Settings Programme Code P:01 Demonstration mode C:00 Demonstration mode off C:01 Demonstration mode on P:03 Factory default setting C:00 Factory default settings not re- stored C:01 Factory default settings restored P:04 Number of power levels C:00 9 power levels C:01 17 power levels P:06...
  • Page 37 Programming Settings Programme Code P:15 Permanent pan recognition C:00 Not active C:01 Active Unlisted programmes are not assigned. The factory setting is shown in bold. After the SmartLine element has been switched on  appears in the timer display for a few seconds.

  • Page 38: Cleaning And Care

    Cleaning and care  Allow the SmartLine element to cool Danger of burning due to hot down before cleaning. surfaces. The surfaces will be hot after cook-  Clean the SmartLine element and ac- ing. cessories after each use. Switch the wok off. ...
  • Page 39  Then clean the ceramic glass surface  Then carefully scrape off these with the Miele ceramic and stainless residues immediately whilst they are steel hob cleaner (see “optional ac- still hot, using a scraper blade suit- cessories”) or with a proprietary...

  • Page 40: Problem Solving Guide

    There is no power to the SmartLine element. cannot be switched on.  Check whether the mains fuse has tripped. Con- tact an electrician or Miele Service (for the min- imum fuse rating, see data plate). There may be a technical fault.
  • Page 41 Problem solving guide Problem Cause and remedy The SmartLine element One or more of the sensor controls are covered, e.g. has switched off auto- by finger contact, food boiling over or an object. matically. When the ele-  Clean off any dirt and/or remove the object (see ment is switched back “Safety features”...
  • Page 42  Interrupt the power supply to the SmartLine ele- ment for approx. 1 minute.  If the problem persists after power has been re- stored, please contact Miele Service.  flashes alternately The SmartLine element is connected incorrectly. with  in the timer dis- ...
  • Page 43 Problem solving guide Problem Cause and remedy  In the timer dis- play  flashes altern- The overheating protection mechanism has been ac- ately with numbers. tivated.  See “Safety features – Overheating protection”. ,  or  The fan is blocked or defective. ...

  • Page 44: Optional Accessories

    250 ml Miele appliances. These products can be ordered through the Miele Webshop. They can also be ordered from Miele Removes heavy soiling, limescale de- (see end of this booklet for contact de- posits and aluminium residues tails) or from your Miele dealer.

  • Page 45: After Sales Service

    In the event of any faults which you cannot remedy yourself, please contact your Miele Dealer or Miele Service. Contact information for Miele Service can be found at the end of this document. Please note that telephone calls may be monitored and recorded for training pur- poses and that a call-out charge will be applied to service visits where the problem could have been resolved as described in this booklet.

  • Page 46: Installation

    Installation Safety instructions for installation  Damage risk from incorrect installation. Incorrect installation can cause damage to the SmartLine element. The SmartLine element must only be installed by a qualified person.  Risk of electric shock! Incorrect connection to the mains supply may result in an electric shock. The SmartLine element must be connected to the electrical supply by a quali- fied person only.

  • Page 47: Safety Distances

    Installation Safety distances Safety distance above the SmartLine element The safety distance specified by the manufacturer of the cooker hood must be maintained between the SmartLine element and the cooker hood above it. If combustible objects are installed above the SmartLine element (e.g. cab- inets, utensil rail, etc.), a minimum safety distance of 600 mm must be maintained.
  • Page 48 Installation Safety distances to the sides and back of the hob The SmartLine element should prefer- ably be installed with plenty of space on the right and left. The minimum distance  specified be- low must be observed between the rear of the SmartLine element and a tall unit or room wall.
  • Page 49 Installation Minimum safety distance underneath Intermediate shelf the SmartLine element It is not necessary to fit an interim shelf To ensure proper ventilation of the underneath the SmartLine element but SmartLine element, a minimum safety one may be fitted if you wish. distance is required between the ele- Leave a gap of 10 mm at the back of ment and an oven, interim shelf or...
  • Page 50 Installation Safety distance when installing the appliance near a wall with additional niche cladding If a niche cladding is installed, a minimum safety distance must be maintained between the worktop cut-out and the cladding, since high temperatures can dam- age these materials. If the niche cladding is made from a combustible material (e.g.

  • Page 51: Surface-Mounted

    Installation Tiled worktop Surface-mounted Installation notes – surface-mounted Sealing between the SmartLine Ele- ment and the worktop Grout lines  and the hatched area un- derneath the SmartLine element frame must be smooth and even. If they are not, the SmartLine element will not sit flush with the worktop and the sealing strip underneath the top part of the ap- pliance will not provide a good seal...
  • Page 52 Installation Installing several SmartLine elements The gaps between the individual Smart- Line elements are sealed with a silicone sealant that is heat-resistant to at least 160 °C. With flush-fit installation, the gap between the SmartLine element(s) and the worktop must also be sealed with a silicone sealant that is heat-res- istant to at least 160 °C.

  • Page 53: Worktop Cutout - Surface-Mounted

    Installation Worktop cutout – surface-mounted Information for calculating the cutout The elements overlap the worktop by 10 mm. When installing several elements, a distance of 2 mm must be observed between the individual elements. Calculating cutout dimension B 1 element = Width of the element minus 10 mm on the right, minus 10 mm on the left Several elements = Total width of the elements plus 2 mm distance between the elements, minus 10 mm on the right, minus 10 mm on the left.
  • Page 54 Installation Installation with a downdraft extractor Combination examples Number x width [mm] Dimen- sion B Cooking ele- Downdraft ex- [mm] ments tractor 1 x 378 1 x 120 2 x 378 1 x 120 1 x 378 2 x 120 1224 1 x 620 3 x 378 2 x 120 1362 2 x 378 2 x 120 1604 1 x 620 4 x 378 2 x 120 1742 1 x 620 2 x 120...
  • Page 55 Installation Installation without a downdraft extractor Combination examples Number x width [mm] Dimension B [mm] Cooking elements 1 x 378 2 x 378 1 x 378 1 x 620 3 x 378 1118 2 x 378 1360 1 x 620 4 x 378 1498...

  • Page 56: Spacer Bars - Surface-Mounted

    Installation Spacer bars – surface-mounted When installing several SmartLine elements, an additional spacer bar must be fit- ted in between the individual elements. The clips supplied with the spacer bars are only required for installing a CSDA 700x FL. Installing 3 elements and 2 spacer bars...

  • Page 57: Installation Dimensions - Surface-Mounted

    Installation Installation dimensions – Surface-mounted All dimensions are given in mm. a Front b Mains connection cable, L = 2000 mm...

  • Page 58: Installation - Surface-Mounted

    Installation Wooden worktops Installation – surface-mounted Preparing the worktop  Create the worktop cutout. Remem- ber to maintain the minimum safety distances (see “Installation – Safety distances”).  Seal any cut surfaces on wooden worktops with a special varnish, sil- icone sealant or resin to prevent the wood from swelling as a result of moisture ingress.
  • Page 59 Installation Installing the SmartLine element  Stick the supplied sealing strip under the edge of the SmartLine element. Do not apply the sealing strip under tension.  Feed the mains connection cable down through the worktop cutout.  Position the SmartLine element in the worktop cutout.

  • Page 60: Flush-Fit

    Installation Natural stone worktops Flush-fit The SmartLine element is set directly in Installation notes – the cutout. flush-fit Solid wood worktops, tiled worktops, glass worktops Flush-fit installation is only possible in natural stone (granite, marble), solid The SmartLine element is set on a wood and tiled worktops.
  • Page 61 Installation Installing several SmartLine elements The gaps between the individual Smart- Line elements are sealed with a silicone sealant that is heat-resistant to at least 160 °C. With flush-fit installation, the gap between the SmartLine element(s) and the worktop must also be sealed with a silicone sealant that is heat-res- istant to at least 160 °C.

  • Page 62: Worktop Cutout - Flush-Fit

    Installation Worktop cutout – flush-fit Natural stone worktop Wooden worktop + 0.5  mm with CS 7611 FL Information for calculating the cutout The elements overlap the worktop by 10 mm. When installing several elements, a distance of 2 mm must be observed between the individual elements. Calculating cutout dimension A 1 element = Width of the element plus 2 mm on the right, plus 2 mm on the left.
  • Page 63 Installation Installation with a downdraft extractor Combination examples Number x width [mm] Dimen- Dimen- sion A sion B Cooking ele- Downdraft [mm] [mm] ments extractor 1 x 378 1 x 120 2 x 378 1 x 120 1 x 378 2 x 120 1248 1224 1 x 620 3 x 378 2 x 120 1386 1362 2 x 378 2 x 120 1628 1604 1 x 620 4 x 378 2 x 120 1766 1742...
  • Page 64 Installation Installation without a downdraft extractor Combination ex- Number x width Dimension A Dimension B amples [mm] [mm] [mm] Cooking elements 1 x 378 2 x 378 1 x 378 1004 1 x 620 3 x 378 1142 1118 2 x 378 1384 1360 1 x 620 4 x 378 1522 1498...

  • Page 65: Spacer Bars - Flush-Fit

    Installation Spacer bars – flush-fit When installing several SmartLine elements, an additional spacer bar must be fit- ted in between the individual elements. The clips supplied with the spacer bars are only required for installing a CSDA 700x FL. Installing 3 elements and 2 spacer bars...

  • Page 66: Installation Dimensions - Flush

    Installation Installation dimensions – Flush All dimensions are given in mm. a Front b Mains connection cable, L = 2000 mm c Stepped cutout (for detailed illustrations, see “Installation – Worktop cutout – flush-fit”) d 12 mm wooden frame (not supplied, for detailed illustrations, see “Installation – Worktop cutout –...

  • Page 67: Installation - Flush-Fit

    Installation Wooden worktops Installation – flush-fit Preparing the worktop  Create the worktop cutout. Remem- ber to maintain the minimum safety distances (see “Installation – Safety distances”).  Seal any cut surfaces on wooden worktops with a special varnish, sil- icone sealant or resin to prevent the wood from swelling as a result of moisture ingress.
  • Page 68 Installation Installing the SmartLine element  Stick the supplied sealing strip under the edge of the SmartLine element. Do not apply the sealing strip under tension.  Feed the mains connection cable down through the worktop cutout.  Position the SmartLine element in the worktop cutout.

  • Page 69: Electrical Connection

    Please ensure these match erable danger for the user. the household mains supply. Miele cannot be held liable for dam- age or injury caused by unauthorised Residual current device installation, maintenance or repair...
  • Page 70 A suitable connec- lowing depending on installation: tion cable is available to order from Safety fuses Miele.  Completely remove fuses. Automatic circuit breakers  Press the (red) test button until the middle (black) button springs out.
  • Page 71 Tel: +65 6735 1191 Fax. +971 4 3418 852 Fax: 011-46 900 001 Fax: +65 6735 1161 800-MIELE (64353) E-mail: customercare@miele.in E-Mail: info@miele.com.sg E-Mail: info@miele.ae Internet: www.miele.in Internet: www.miele.sg Website: www.miele.ae Manufacturer: Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany...
  • Page 72 CS 7611 en-GB M.-Nr. 10 803 061 / 01...
