Running the demonstration

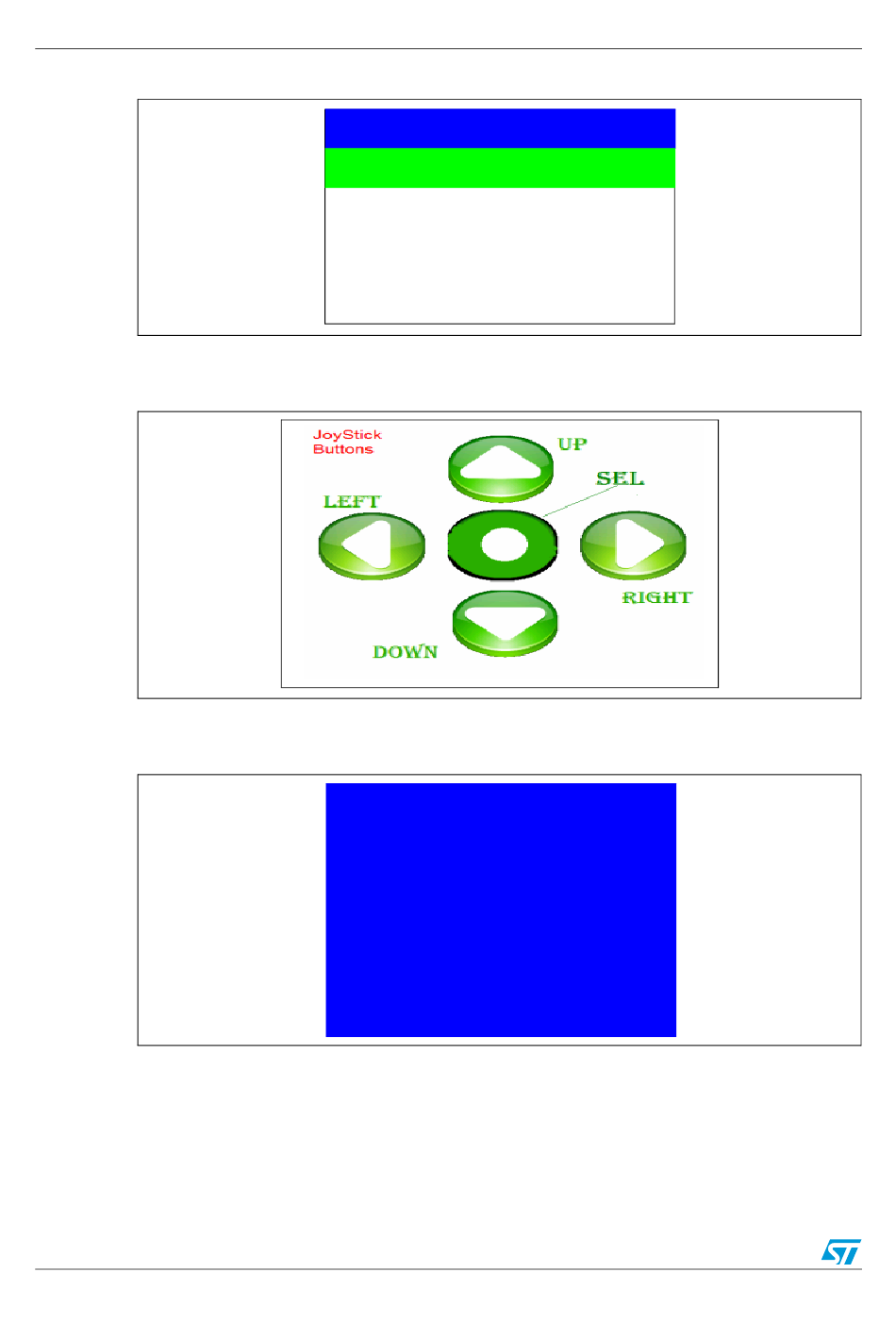

Figure 65. Help submenu

If you press SEL, the image shown in

Figure 66. Joystick buttons

Press any joystick push-button to display the next help slide as shown in

Figure 67. Second help slide

Press the joystick to exit the slide and return to the Help submenu.
42/48
Help
Start
Return
Figure 66
UP, DOWN, RIGHT and
LEFT push-buttons
perform circular
navigation in the
main menu, current
menu items. SEL
push-button selects
the current item. UP
and DOWN perform
vertical navigation
Doc ID 16982 Rev 1
is displayed on the LCD screen.
UM0891
Figure 67.
