Running the demonstration

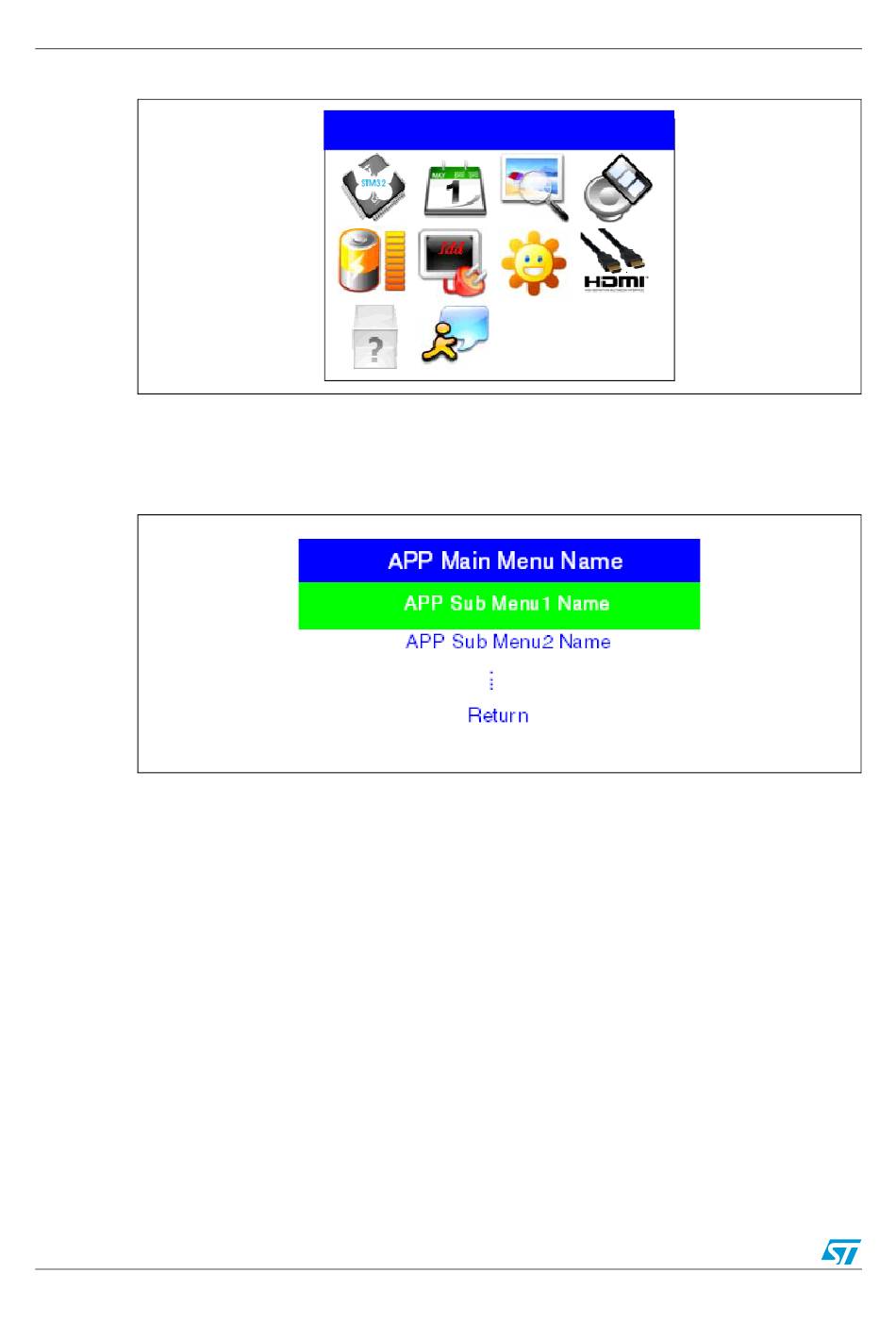

Figure 8.
1. The icons shown in
Once a submenu has been selected, the name of the application is listed at the top of the
display and all the corresponding submenus are listed below as shown in
Figure 9.
2.4.1

Navigation procedure

The demonstration menu is based on circular navigation, submenu selection, item selection
and back capability.
To navigate through the demonstration menus, use the joystick push-buttons located on the
evaluation board: RIGHT, LEFT, UP, DOWN and SEL.
●
The UP, DOWN, RIGHT and LEFT push-buttons are used to perform circular navigation
in the main menu and the current menu items
●
The SEL push-button selects the current item
●
The UP and DOWN push-buttons are used for vertical navigation in the submenus
To return to the upper menu, go to the Return menu and press SEL.
14/48
Application main menu
APP Main Menu Name
Figure 8 are taken from http://commons.wikimedia.org/wiki/Crystal_Clear.
Application submenus
Doc ID 16982 Rev 1
UM0891
Figure 9.
