Running the demonstration

2.1

Menu tree and navigation

Figure 2
shown on the left-hand side. The UP, DOWN, RIGHT and LEFT joystick directions allow the
user to navigate between items in the main menu and the submenus. To enter a submenu,
press the SEL push-button (the SEL push-button is the switch closure that occurs when the
joystick button is pushed). To exit a submenu, select the Return menu and press SEL.

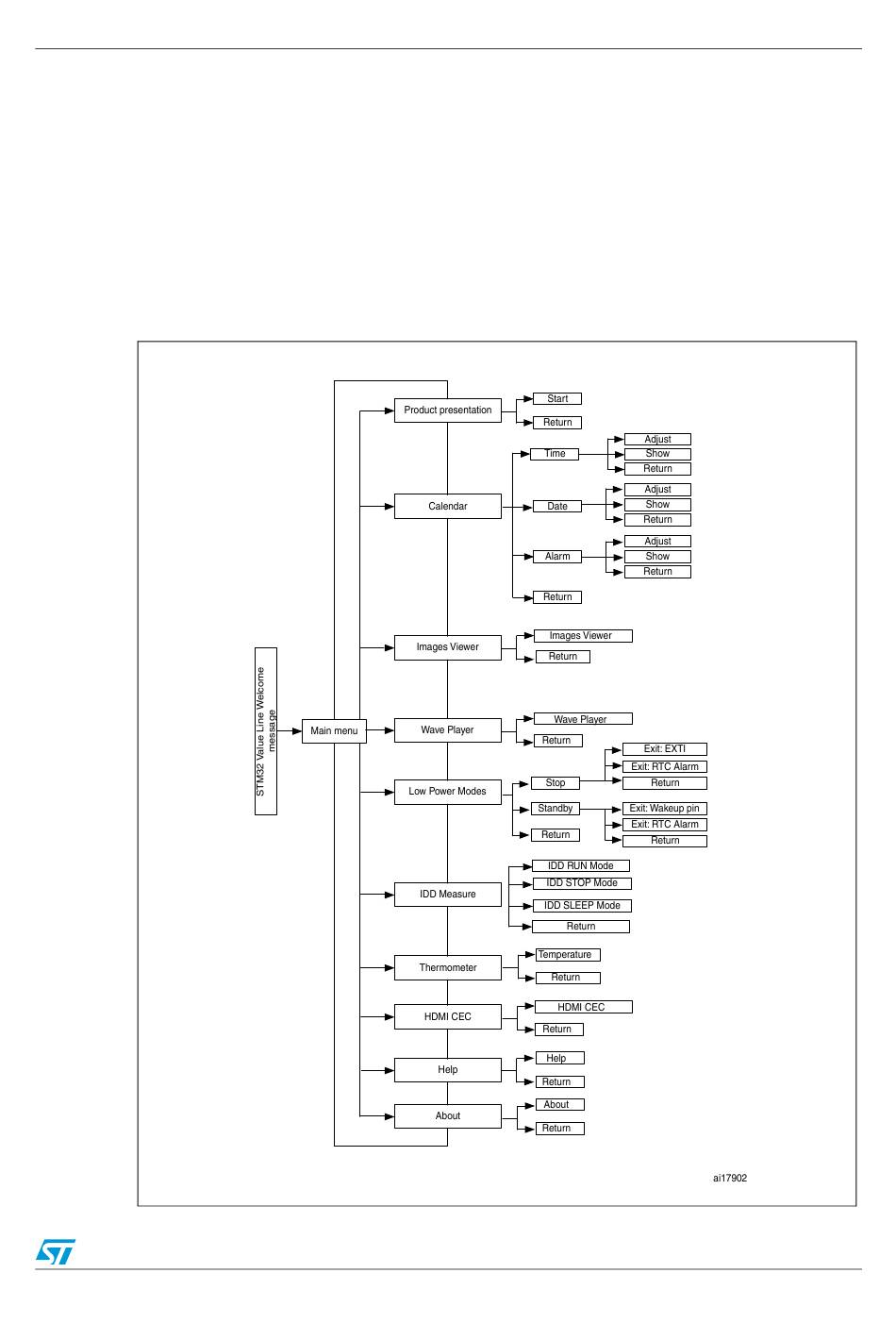

Figure 2.
shows the menu system of the STM32F100VB demonstration. The main menu is
Structure of the demonstration menus
