Running the demonstration

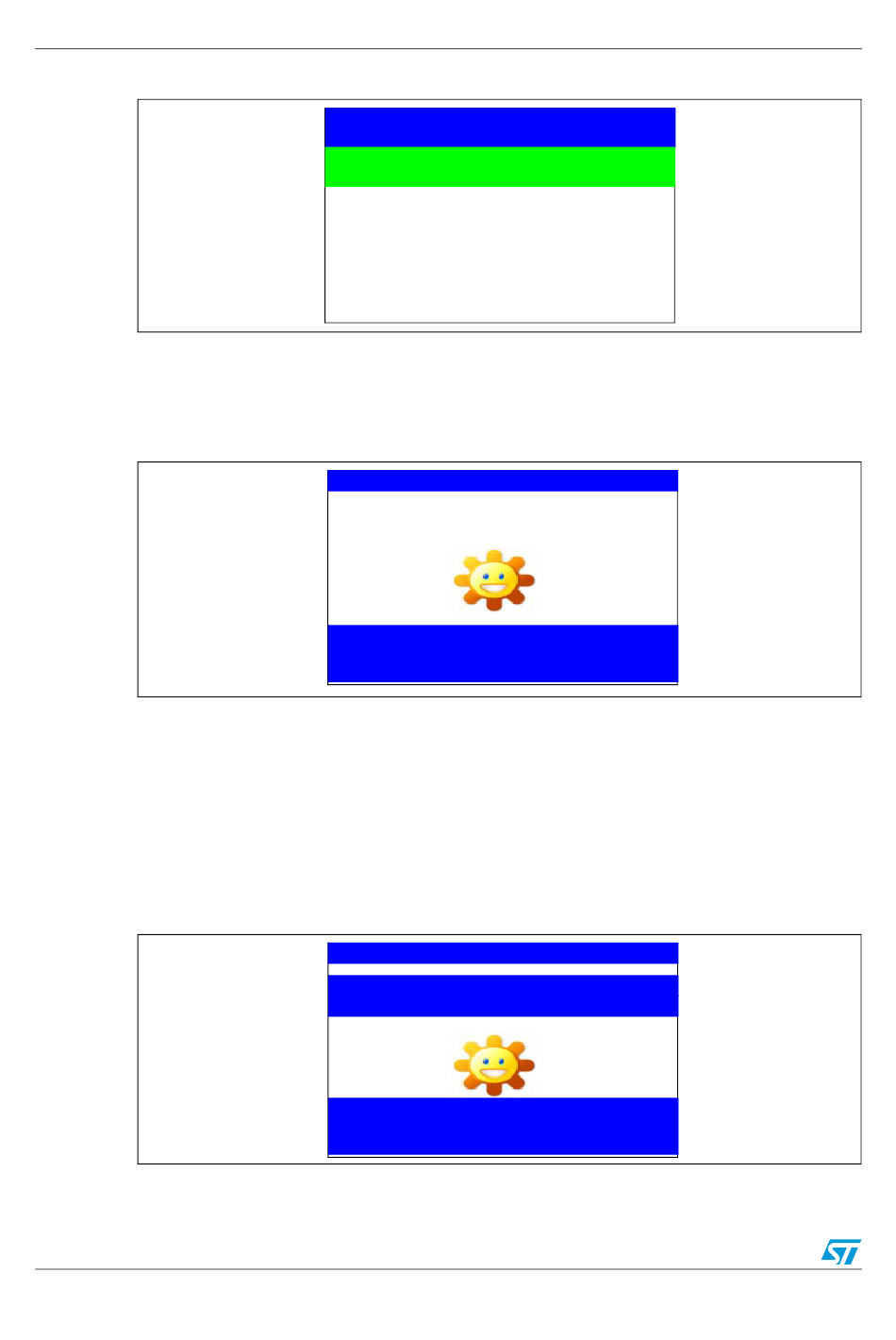

Figure 56. Thermometer submenu selected

Once you select the Temperature submenu, the temperature value is displayed in Celsius
and Fahrenheit as shown in
Press any key to return to the Thermometer submenu.

Figure 57. Temperature display

Thanks to STM32 I2C SMBus feature, we can easily monitor the temperature variations.
This is managed by the SMBus Alert which generates a dedicated interrupt to inform the
system that the temperature is out of the selected range. This can be very useful for
systems where the increase of temperature needs an immediate intervention, like in motor
control, medical systems, etc.
If the temperature exceeds the over-limit high value (TEMPERATURE_TOS: Over Limit
Temperature), the SMBus Alert interrupt is generated and the following warning message is
displayed on the LCD screen:

Figure 58. Warning temperature display

38/48
Thermometer
Temperature
Return
Figure 57.
Temperature
+xxx.x C
+xxx.x F
Temperature
Exceeding the T°Limit
32 C
+xxx.x C
+xxx.x F
