Running the demonstration
1. Select Time Adjust. The message shown in
modify the first digit of the hour field, use the UP and DOWN push-buttons. Press UP to
display the current value plus one. Press DOWN to display the previous digit value.
2. After setting the digit value, press SEL. The cursor automatically jumps to the next digit.
When all the time digits have been set, the Time submenu appears. Some digit values are
limited to a range of values depending on the field (hour, minute or seconds).

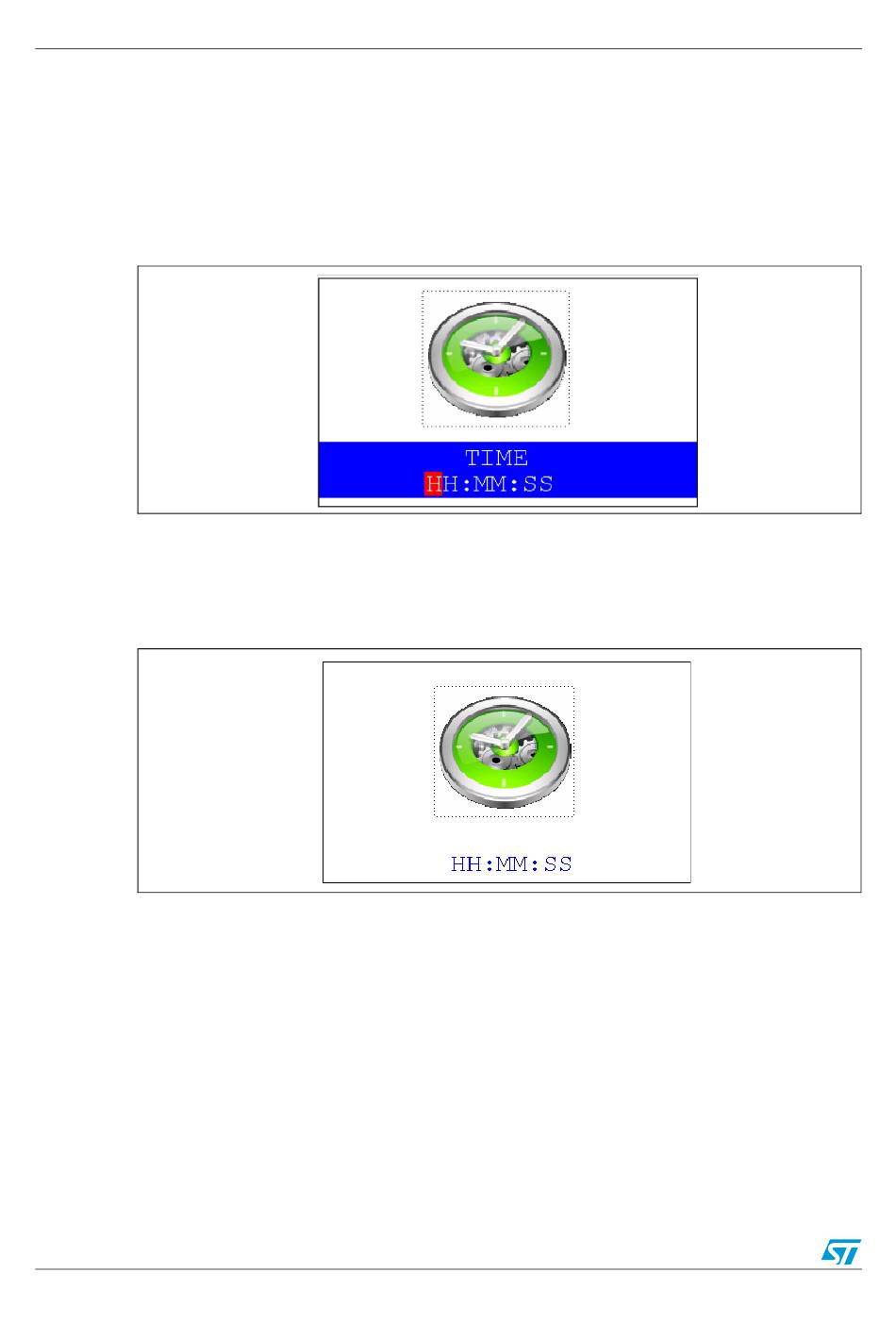

Figure 23. Time Adjust submenu

●
Time Show: this item displays the current time. If time and date have not been
previously configured, a message is displayed, that gives the choice to set the time and
date or, to exit to the upper submenu. When this submenu is selected, the message
shown in

Figure 24. Time Show submenu

To exit the Time Show submenu, press the SEL push-button. To exit the Time submenu,
select Return and press the SEL push-button.
24/48
Figure 24 appears on the LCD. In the example, the time has not been set yet.
Doc ID 16982 Rev 1
Figure 23 is displayed on the LCD. To
UM0891
