6.7.11

PEG Port Configuration

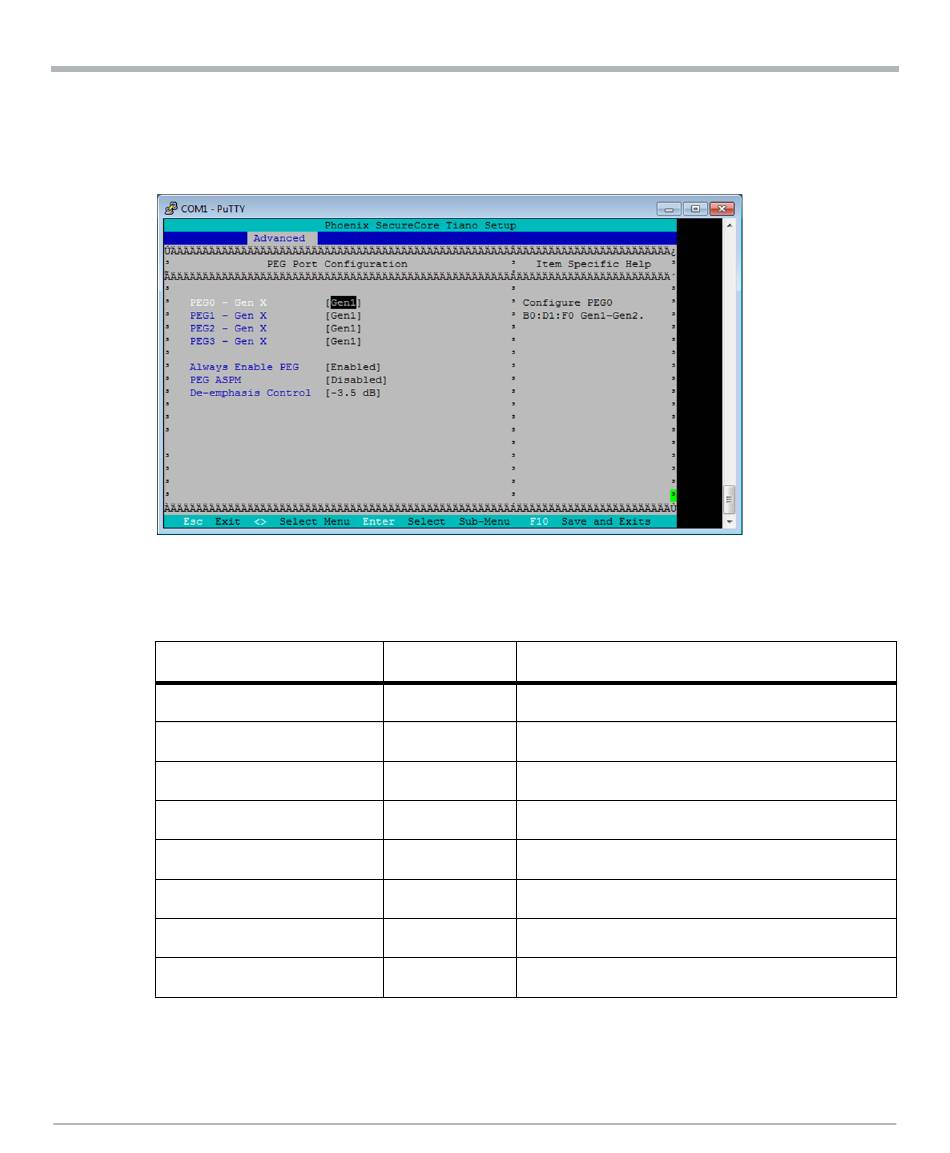

Figure 6-16
The following table provides options in the PEG Port Configuration menu and their defaults.
Values contained in brackets [...] show the default setting.

Table 6-16 PEG Port Configuration

Feature
PEG0 - Gen X
PEG1 - Gen X
PEG2 - Gen X
PEG3 - Gen X
Always Enable PEG
PEG ASPM
ASPM L0s
De-emphasis Control
PrAMC-7311 Installation and Use (6806800P34F)
PEG Port Configuration
Options
PEG Port Configuration
Description
Allows to configure PEG0 B0:D1:F0 Gen1-Gen2.
Specifies de-emphasis control for PEG.
