Connectors
The serial interface COM can be used to connect a console. You can find its signal
description in the following figure.

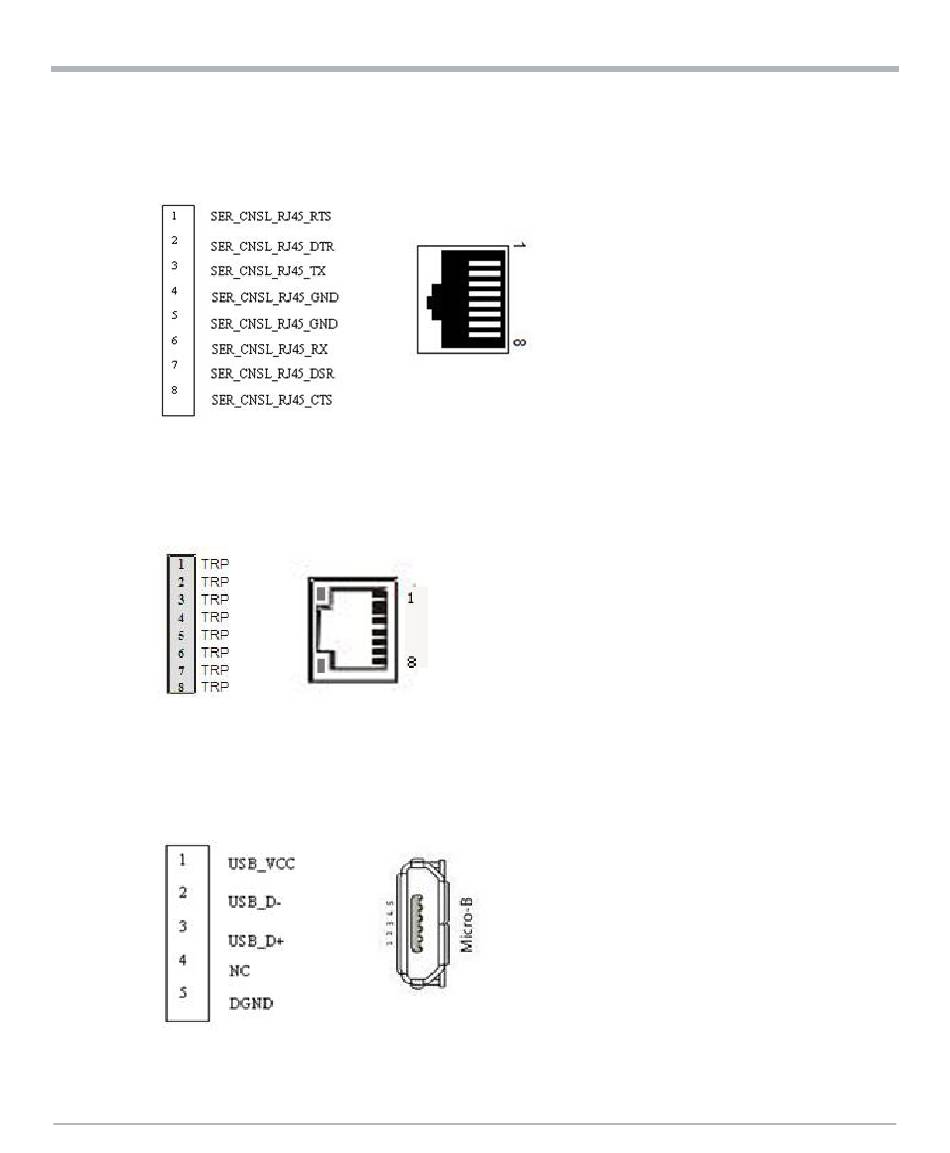

Figure 3-3 Serial Console RJ-45 Connector Pinout
The Ethernet interface ETH is used to establish an Ethernet connection. You can find its
signal description in the following figure.
Figure 3-4 Ethernet Connector Pinout
The USB 2.0 interface USB can be used to connect other USB devices. You can find its
signal description in the following figure.
Figure 3-5 USB Micro-B Connector Pinout
PrAMC-7311 Installation and Use (6806800P34F)
39
