System Memory Map

5.2.1 System Memory Map

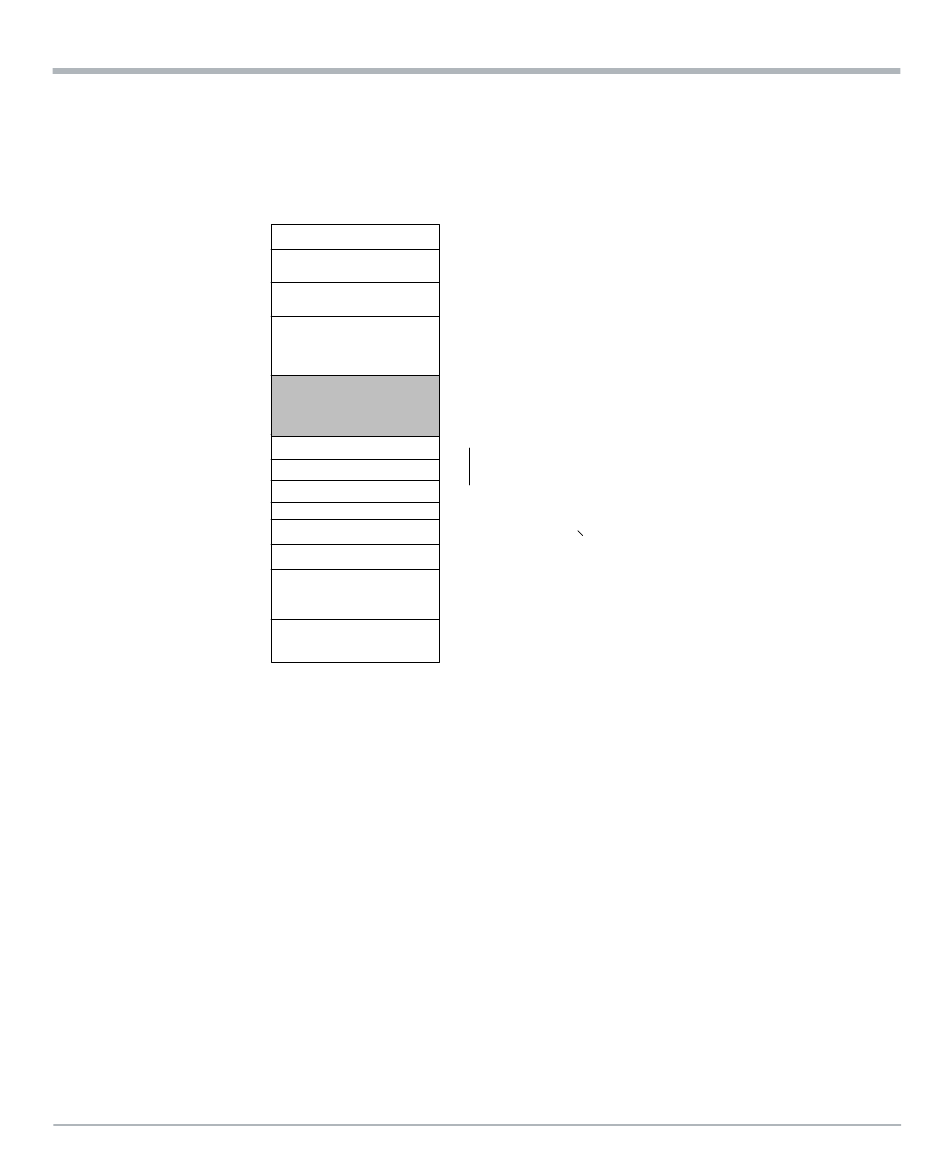

Figure 5-1 System Memory Map

FFFF FFFFh
FEE0 0000h
FEC0 0000h
E000 0000h
0100 0000h
00F0 0000h
0010 0000h
0000 0000h
5.2.2

Flash Layout

BIOS can be supported from either firmware hub (LPC) or on SPI, for PrAMC-7311 it is
designed to support from SPI flash and as usually the ME and GbE technology supported
firmware also reside on flash devices only so that total firmware's can be combined into
single image and going to be placed into the SPI flash. PrAMC-7311 support of two flash
devices with 8MB each and with the help of MMC the particular flash can be selected for
boot the BIOS, by default system boot from flash device 0 because default selection line
enabled on SPI is of #CS0. Below the figure is the flash composition to support the BIOS,
GbE, ME technologies
46
4GB
Flash
4GB-Flash
MSI Interrupts
4GB-18 MB
APIC
4GB-20 MB
PCI Express
Configuration Space
4GB-512MB
(BARs, internal graphic ranges,
DMI Interface
PCI express port, CHAPADR
(Subtractive Decode)
TOLUD
IGD
IGGTT
TSEG
TSEG_BASE
DPR
Main Memory
16MB
ISA Hole (Otional)
15MB
Main Memory
1MB
DOS Compatible
Memory
0
could be here)
PrAMC-7311 Installation and Use (6806800P34F)
Address Mapping
