Module Management Controller

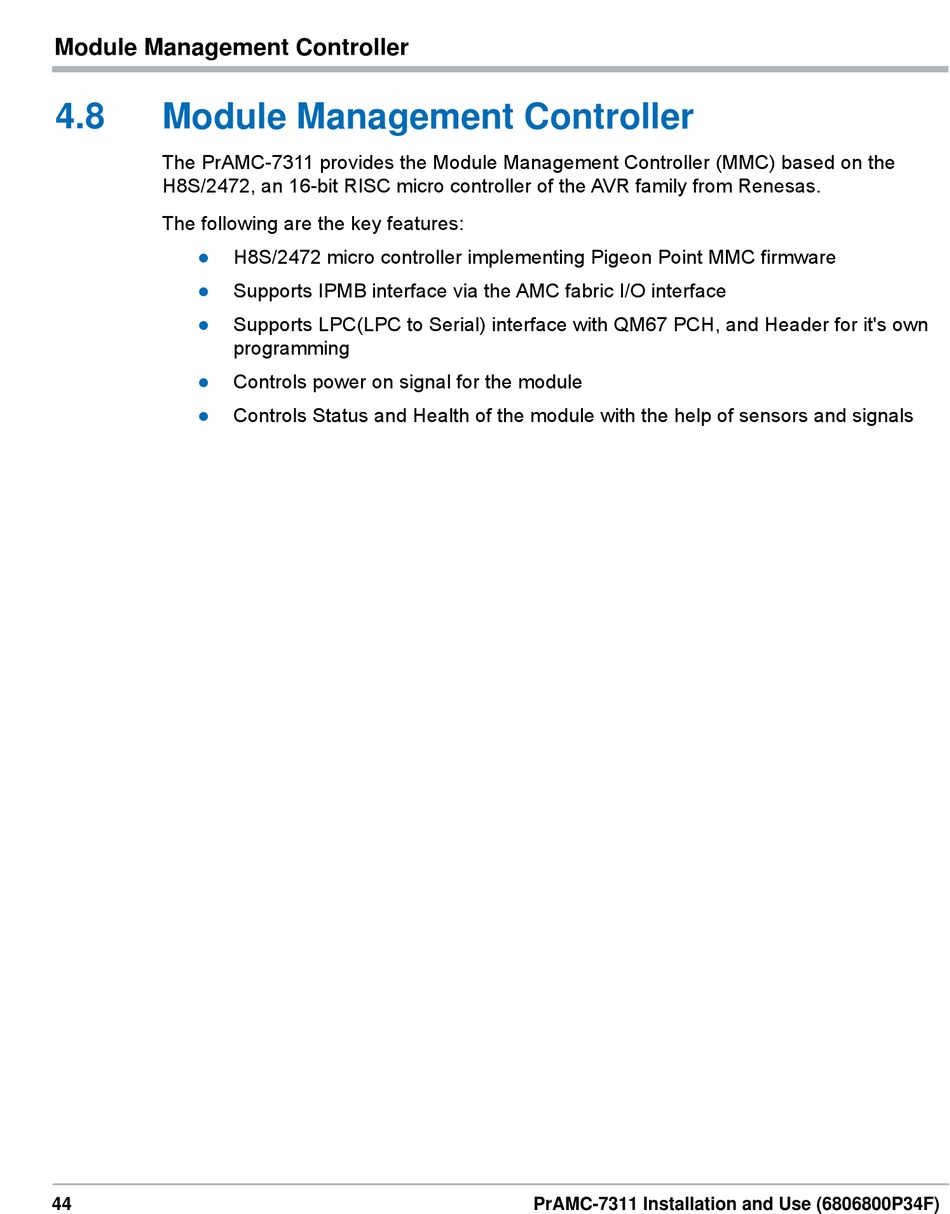

4.8 Module Management Controller
The PrAMC-7311 provides the Module Management Controller (MMC) based on the
H8S/2472, an 16-bit RISC micro controller of the AVR family from Renesas.
The following are the key features:
H8S/2472 micro controller implementing Pigeon Point MMC firmware

Supports IPMB interface via the AMC fabric I/O interface

Supports LPC(LPC to Serial) interface with QM67 PCH, and Header for it's own

programming
Controls power on signal for the module

Controls Status and Health of the module with the help of sensors and signals

44 PrAMC-7311 Installation and Use (6806800P34F)
