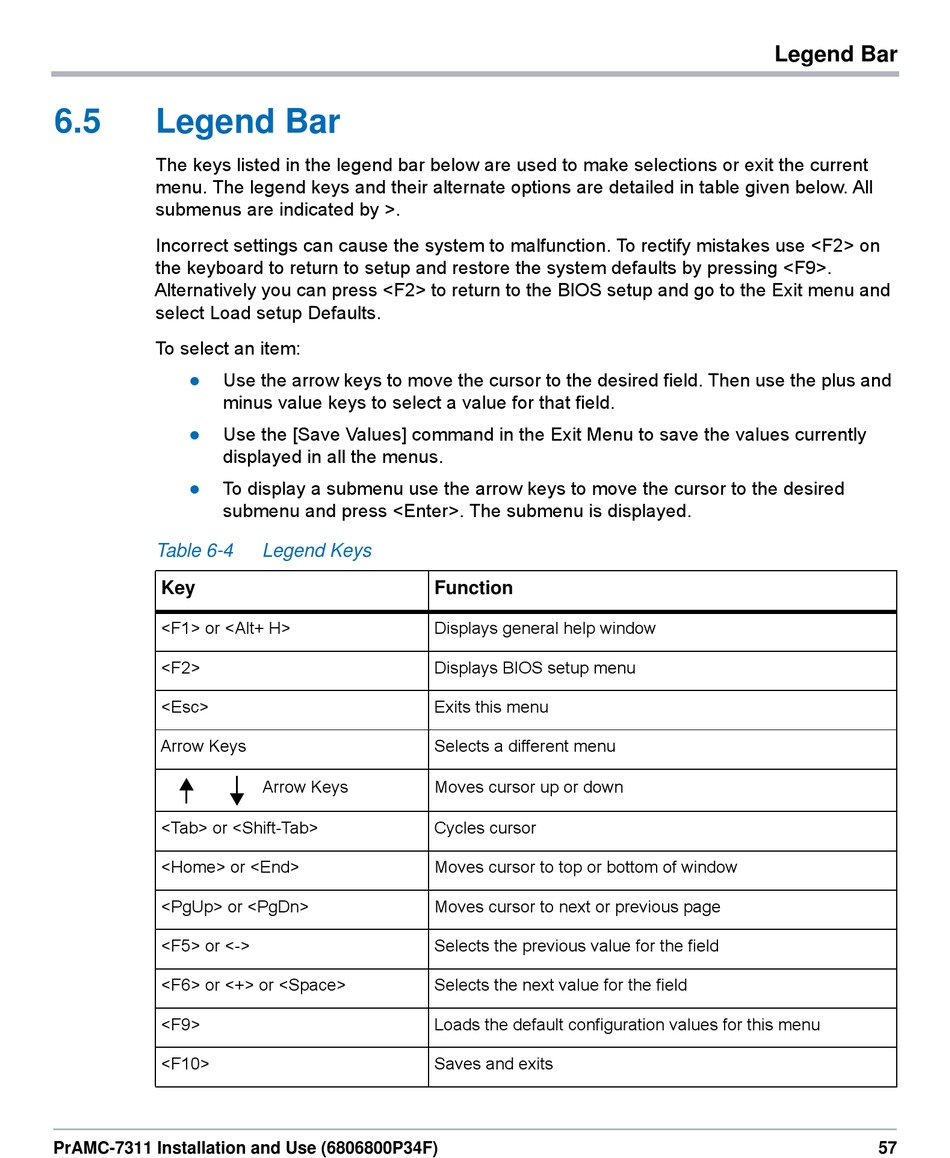

6.5

Legend Bar

The keys listed in the legend bar below are used to make selections or exit the current
menu. The legend keys and their alternate options are detailed in table given below. All
submenus are indicated by >.
Incorrect settings can cause the system to malfunction. To rectify mistakes use <F2> on
the keyboard to return to setup and restore the system defaults by pressing <F9>.
Alternatively you can press <F2> to return to the BIOS setup and go to the Exit menu and
select Load setup Defaults.
To select an item:
Use the arrow keys to move the cursor to the desired field. Then use the plus and

minus value keys to select a value for that field.
Use the [Save Values] command in the Exit Menu to save the values currently

displayed in all the menus.
To display a submenu use the arrow keys to move the cursor to the desired

submenu and press <Enter>. The submenu is displayed.
Table 6-4
Key
<F1> or <Alt+ H>
<F2>
<Esc>
Arrow Keys
<Tab> or <Shift-Tab>
<Home> or <End>
<PgUp> or <PgDn>
<F5> or <->
<F6> or <+> or <Space>
<F9>
<F10>
PrAMC-7311 Installation and Use (6806800P34F)
Legend Keys
Function
Displays general help window
Displays BIOS setup menu
Exits this menu
Selects a different menu
Arrow Keys Moves cursor up or down
Cycles cursor
Moves cursor to top or bottom of window
Moves cursor to next or previous page
Selects the previous value for the field
Selects the next value for the field
Loads the default configuration values for this menu
Saves and exits
