Assembling System Phones
You can either desk mount or wall mount a system
phone. If the system phone is manufactured with a
separate stand, you can use the stand to either wall
mount the phone or raise the angle of the phone when
desk mounting. Alternatively, some system phones—
such as the MLS-18D—are manufactured with a fixed
stand. Any instructions below for installing the stand do
not apply to the MLS-18D phone. (Wall mounting is not
recommended for display phones.)
Desk Mounting

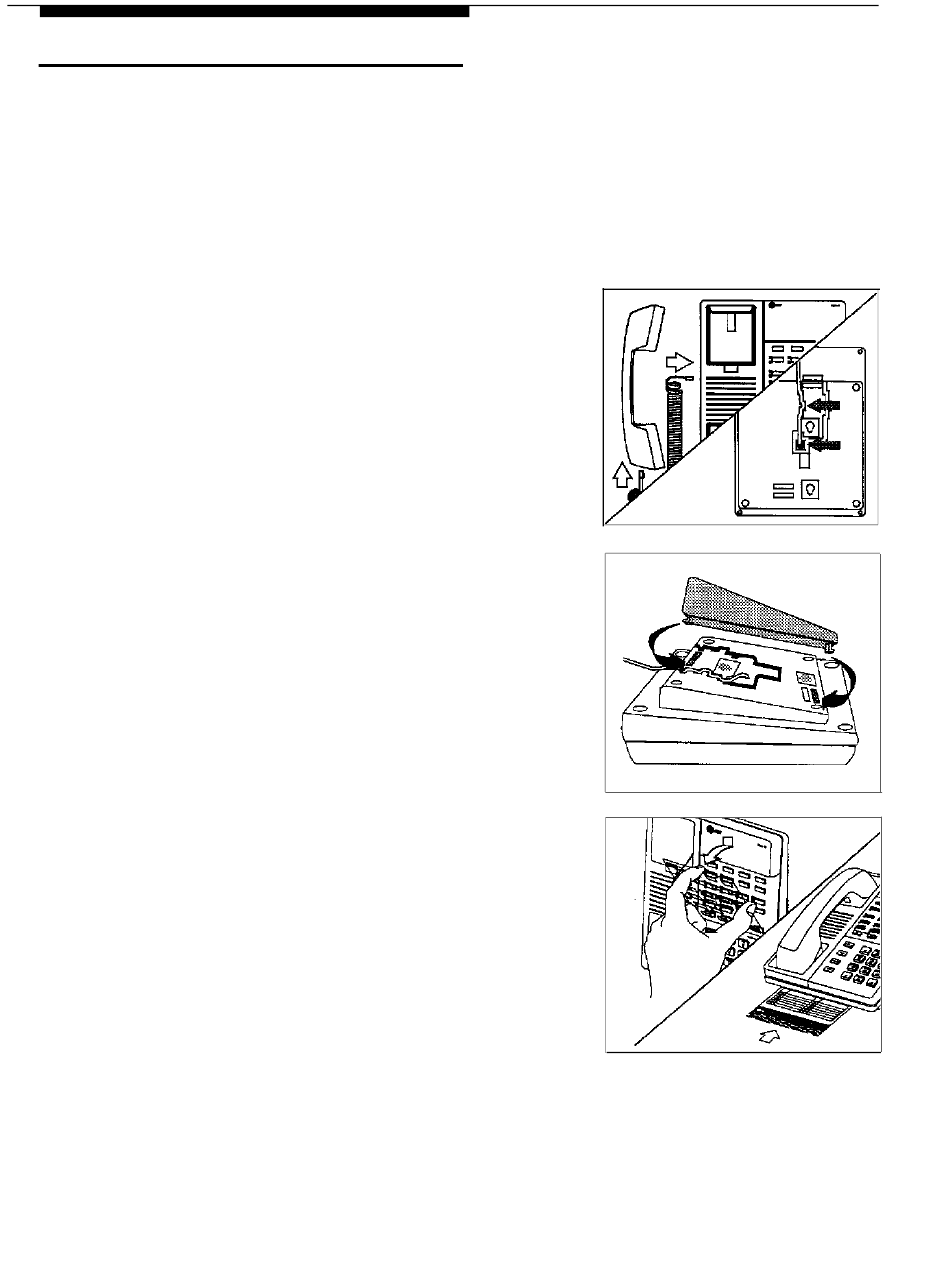

1
A) Plug one end of the handset cord into the jack on
the handset and the other end into the small
jack on the left side of the base.
B) Plug one end of the phone cord into the jack on
the bottom of the phone. If the phone has
multiple jacks, plug the cord into the GRAY
jack.
C) Push the cord into place along the channel on
the bottom of the phone, so the phone sits flat
without wobbling.
D) If you want to raise the angle of the phone, go to
Step 2; if not—or if you have an MLS-18D
phone—go to Step 3.
2
A) To install the telephone stand, gently place the
phone upside down, with the low end of the
phone to your right.
B) Insert the tab on the narrow end of the stand into
the right slot on the bottom of the phone.
Insert the other tab into the left slot, pushing the
C)
stand down and slightly inward until the tab
locks into place.
3
A) Turn the phone over so it is right side up.
B) Remove the plastic cover from the phone. Label
the button sheet to show any programmed
lines or button features, then place it on the
phone so the holes on the sheet fit over the
buttons. Carefully replace the plastic cover.
C) Slide the Quick Reference card under the
telephone.
Channel
Jack
Installation C-13
