Introduction Specifications

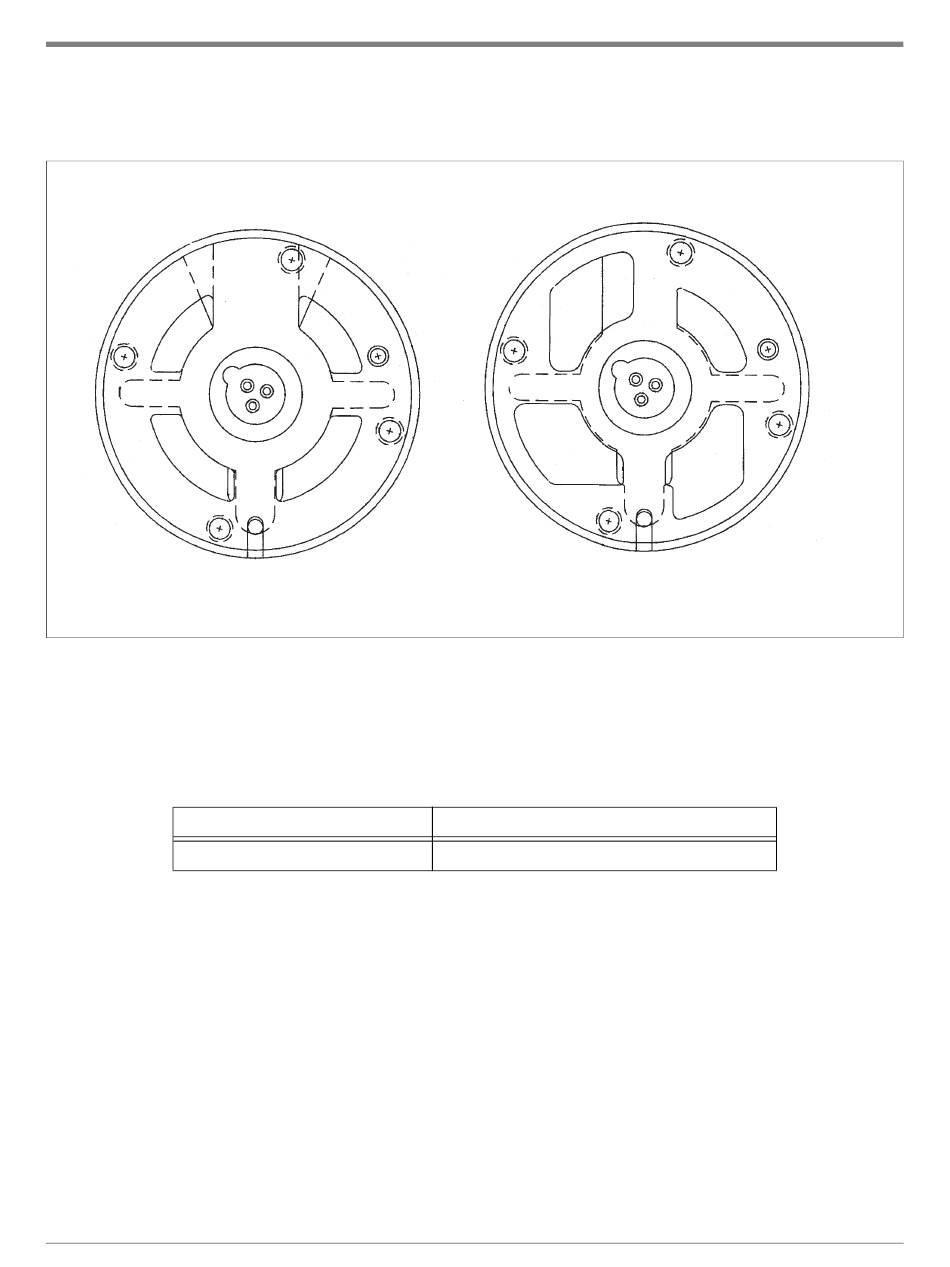

Figure 5 identifies UMP models by their end view.
UMP End View A UMP End View B
rjpumps\umpend.eps

Figure 5. Identifying UMP Models By Their End View

Table 5 lists pump shut off pressure range.
Note: Instructions in the VSFC Installation and Operation manual explain how to set desired pressure.
Table 5. Approximate Pump Shut Off Pressure Range
UMP Model Approximate Shut Off Pressure Range
UMP200U20-2 14 - 45 psi (96.5 - 297 kPa)
11
