UMP Replacement Instructions
X4AGUMP150S3, X4UMP150U3
X4AGUMP150S17, X4UMP150U17
AGUMP200S1-3, UMP200U1-3
AGUMP200S3-4, UMP200U3-4
AGUMP200U17-4, UMP200U17-4
AGUMPL200S1-3, UMPL200U1-3
053-2

Replacing the UMP for the Red Jacket STP

WARNING
When servicing equipment, use non-sparking tools and use caution when removing or
installing equipment to avoid generating a spark.
Kit Required:
• Hardware/Seal Kit, P/N 410154-001
• Die Spring Kit, P/N 410485-001 (P/N 410906-001 for RA models)
1. If a ball valve is installed down line from the pump, close it.
2. Remove the two extractable lock-down nuts and discard them (see Figure 2). The springs on the lock-down
studs between the extractable's flange and the manifold will push the extractable up, breaking the seals.

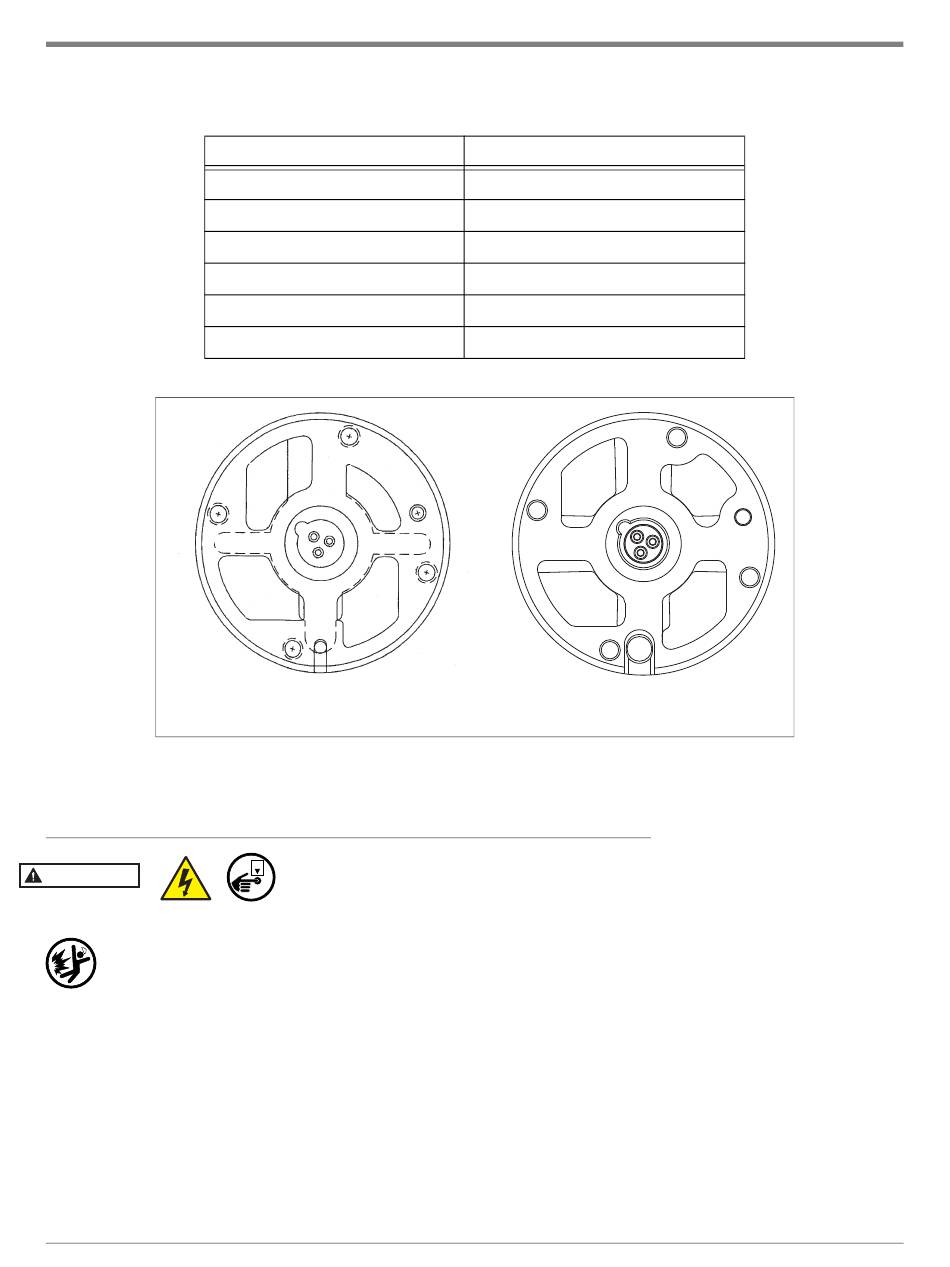

Table 6. Approximate Pump Shut-Off Pressures
UMP Model
UMP End View A

Figure 1. Identifying UMP Models By Their End View

OFF
Disconnect, lock out, and tag power at the panel before starting to
service the pump.
Replacing the UMP for the Red Jacket STP
Approximate Shut-Off Pressure
40 psi (275 kPa) .74 SG @ 60°F (15°C)
39 psi (267 kPa) .74 SG @ 60°F (15°C)
43 psi (297 kPa) .74 SG @ 60°F (15°C)
43 psi (297 kPa) .74 SG @ 60°F (15°C)
43 psi (297 kPa) .74 SG @ 60°F (15°C)
36 psi (248 kPa) .74 SG @ 60°F (15°C)
UMP End View B
