Appendix B: Check Valve/Air Purge Screw Operation

This appendix discusses the theory of operation of the Red Jacket VSFC STP's check valve and air purge screw.
Check Valve Operation
Pump On

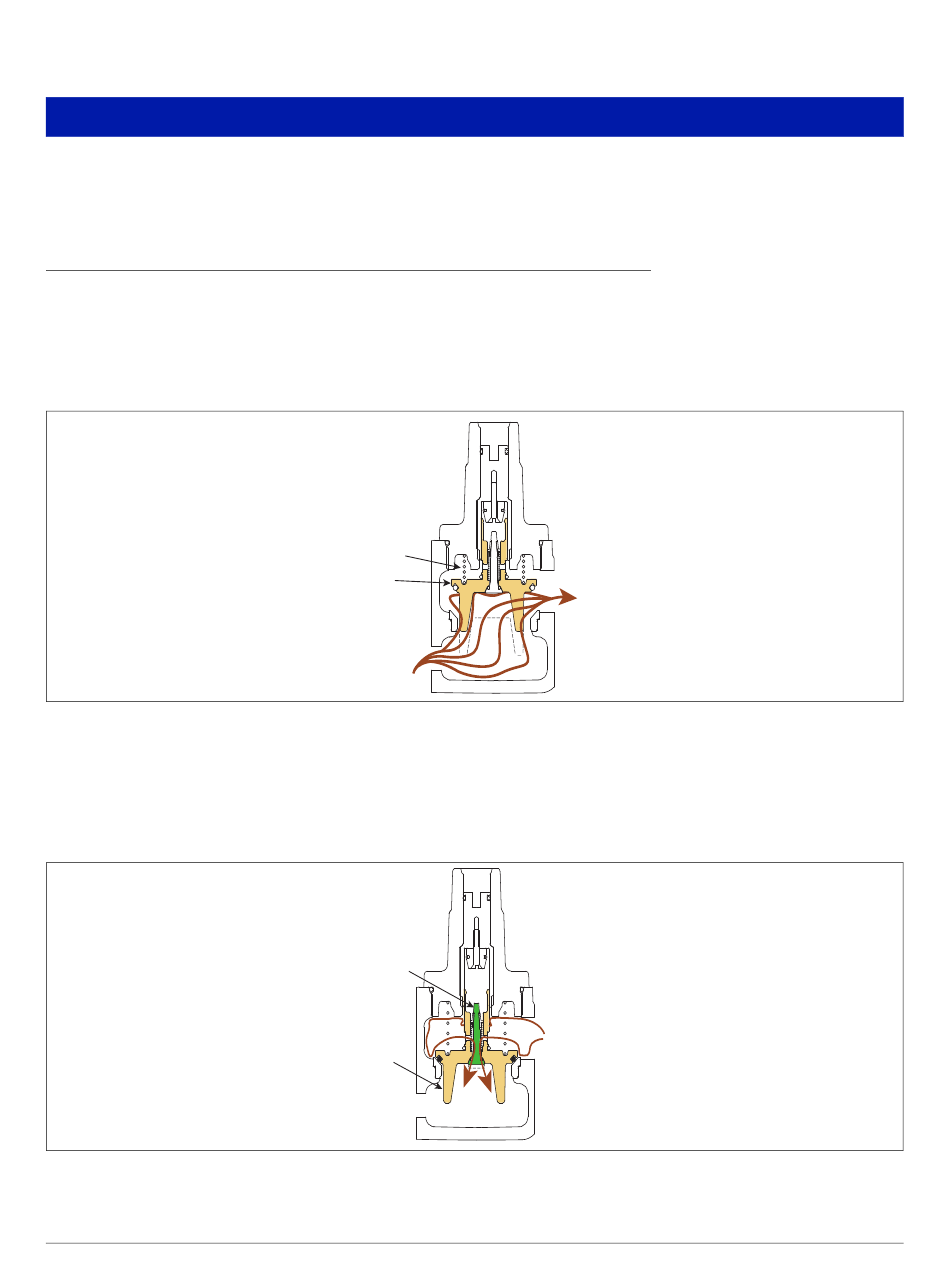

As shown in the check valve cutaway diagram in Figure B-1, when the pump is On, the check valve is opened by
fuel flow.
Pump Off
When the pump shuts off, the check valve reseats isolating the line. As pressure in the line builds due to thermal
expansion, the excess pressure vents through the relief valve back into the tank as shown in Figure B-2.
Spring
Check valve
From pump

Figure B-1. Pump On Condition

Relief valve
Check valve
To Tank
Figure B-2. Relief Valve Vents Excess Line Pressure
B-1
To line
rjpumps\ckvlv1
Excess line
pressure
rjpumps\ckvlv2
