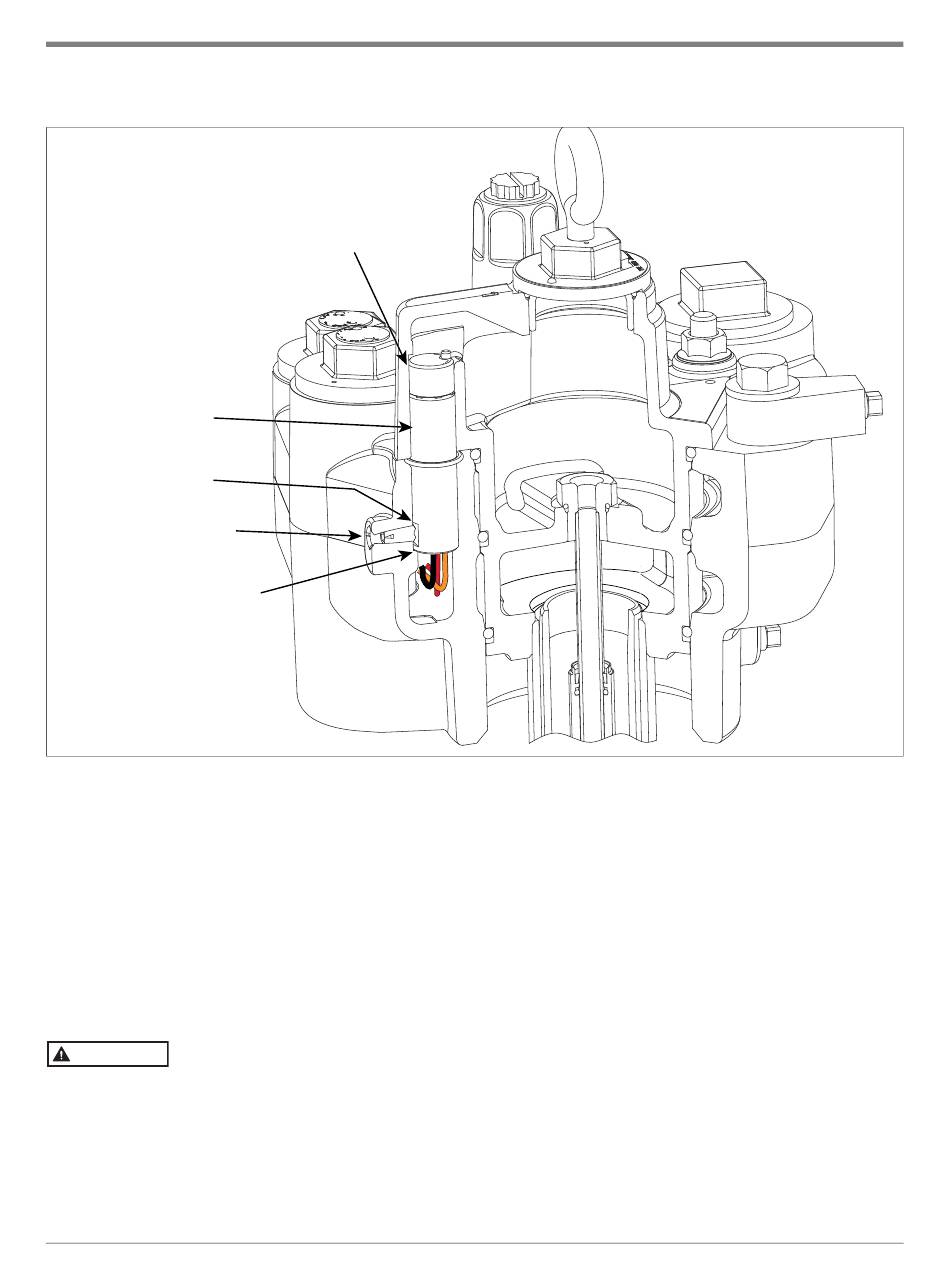

Figure 35. Locating Female Connector Set Screw - Red Jacket Quick-Set VSFC Submersible Turbine Pump Installation, Service, & Parts Lists

Service And Repair
Female connector in
packer housing
Flat cut in side of connector
must face set screw
3/8'' hex set screw that
holds in female connector
Female connector sits
on ridge in bottom of
socket
rjpumps\fig34vsfc.eps
22. Remove the manifold's female connector o-ring.
23. Get the 0.862'' ID x 0.103'' wide o-ring from the connector kit and lubricate it with petroleum jelly. Insert this
o-ring in its groove in the manifold around the female connector (see Figure 30 on page 35).
24. Get the three extractable o-ring seals (3.975'' ID x 0.210'' wide [upper], 3.850'' ID x 0.210'' wide [middle],
and 3.725'' x 0.210'' wide [lower]) from the hardware/seal kit. The three o-rings are very close in size so take
extra care to distinguish each one before replacing them in the extractable. Lubricate each o-ring with
petroleum jelly and then install them in their assigned grooves in the extractable (see Figure 25 on page 26).
25. Reinstall the extractable unit into the manifold and tank. Torque the extractable lock-down nuts in an alternating
pattern to 50 ft-lbs (68 N•m).
26. Turn the air purge screw 2 - 3 turns counterclockwise (see Figure 29).
The air purge screw is retained by a hitch pin to limit travel. Do not attempt to rotate
WARNING
beyond 3 turns.
27. Turn the pump on and let it run for about 2 minutes to purge air from the manifold's hydraulic cavities. While
the pump is still running, turn the air purge screw clockwise until it is completely closed.
28. If applicable, open the ball valve down line from the pump.
Male connector in
extractable housing

Figure 35. Locating Female Connector Set Screw
