Introduction

Installation and Manifold Dimensions

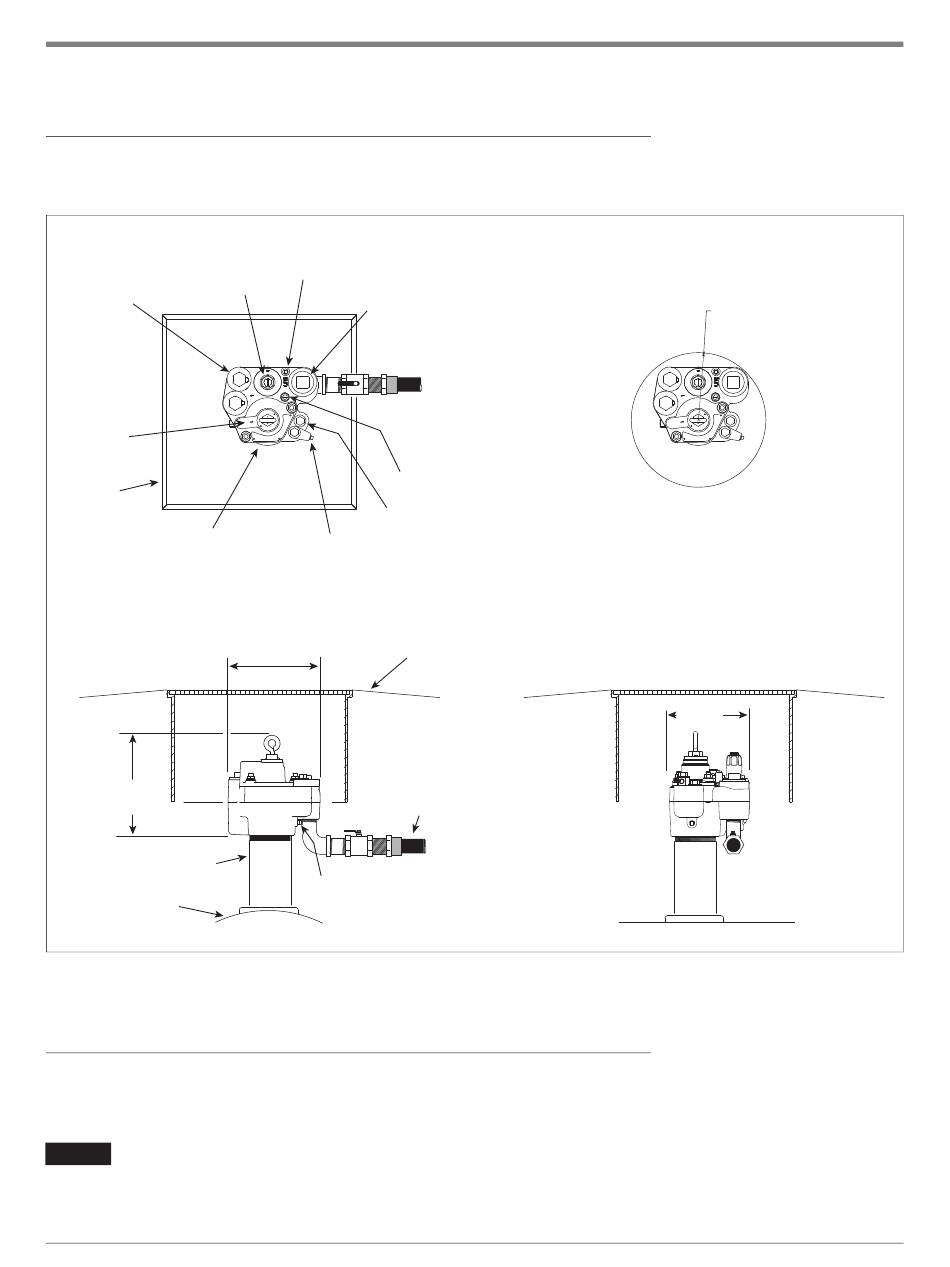

Figure 1 shows several views and dimensions of The Red Jacket pac/man.
Check valve
pressure
Contractor's release
box
Extractable
Manhole
The Red Jacket
VSFC STP
11.7''
( 297 mm)
4'' riser
Tank

Recommended Floating Suction Installation

Figure 2 is an example of a floating suction installation. The floating suction arm can be mounted to pump previous
to installing in tank.
NOTICE Veeder-Root supplies adapter only, not the apparatus.
Line test port
PLLD transducer port
Air Purge Screw
Secondary vacuum port
Vacuum siphon
port
Driveway grade
10.9 "
(277 mm)
2'' discharge to
dispensers
Tank port for
mechanical LLD

Figure 1. Red Jacket Pac/Man Components And Dimensions

7
Installation and Manifold Dimensions
7.7'' (196 mm) installation
radius (15.4'' [392 mm]
diameter)
8.97"
(228 mm)
