Attaching the UMP

Table 6 lists the applicable UMPs for each packer/manifold.
The UMP is identified by the model number marked on the shell. The packer/manifold with piping is identified by
the catalog number on the packer nameplate. The hardware kit consists of four 5/16-18 socket head cap screws,
four 5/16 lock washers and one discharge head gasket identified by the kit number (144-327-4) marked on the
bag (see Figure 6).
The UMP attaches to the packer/manifold column piping discharge head using hardware kit number 144-327-4.
Packer/manifold
with piping
1. Visually inspect the pigtail connector in the end of the discharge head. Be certain the pigtail connector is
seated in its socket and its index tab is in the socket's notch (see Figure 7).
Connector's o-ring
(-015 [0.551'' ID x
0.070'' wide])
Table 6. UMP And Packer/Manifold Combinations
Packer/Manifold
P200U20-2RJ1, RJ2, RJ3
Discharge head

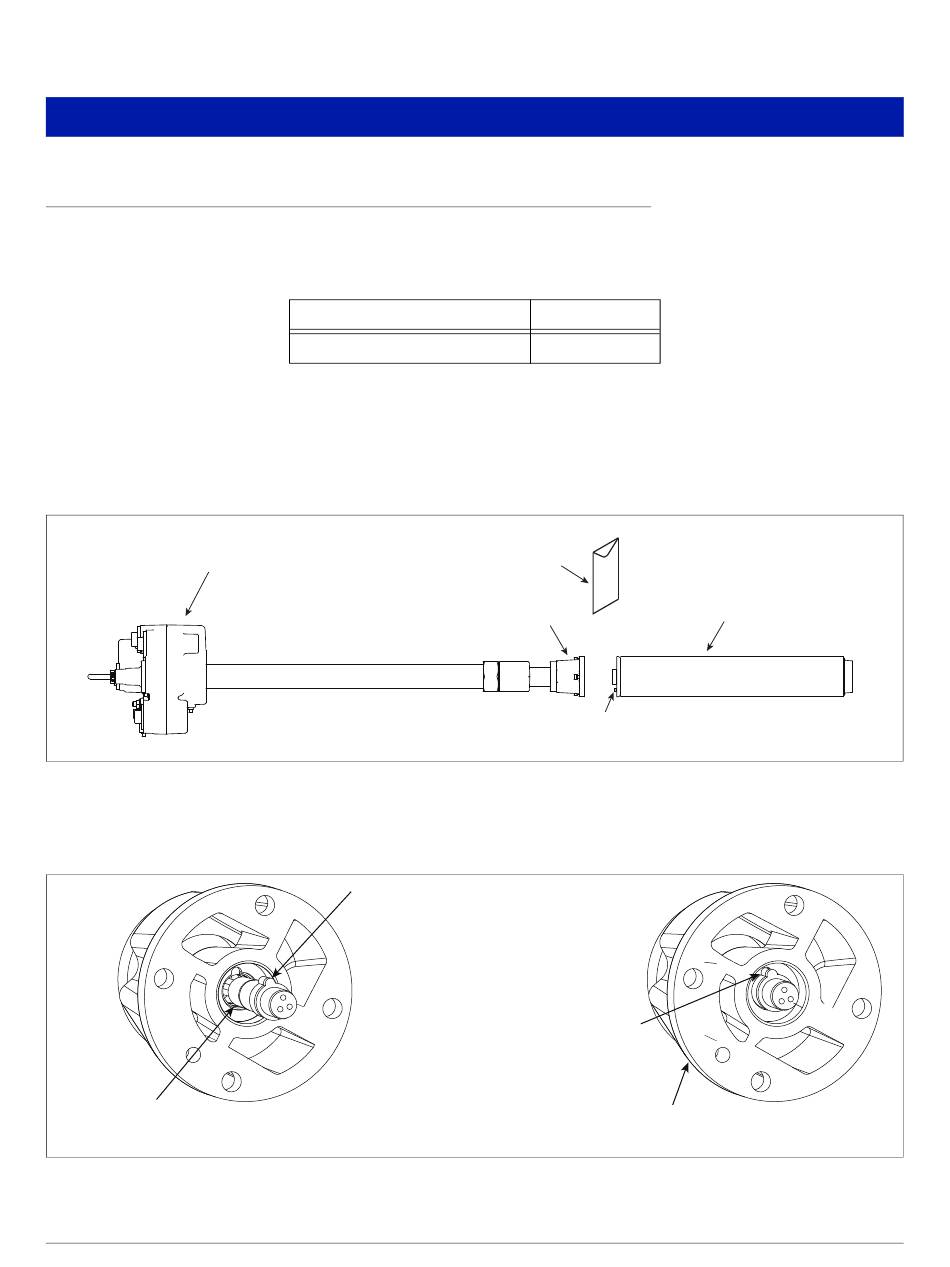

Figure 6. Packer/Manifold With Piping Attaching To UMP

Pigtail female connector/indexing tab is out
of its socket - this is the incorrect position
when attaching the UMP!
Pigtail female connector/index-
ing tab is fitted in notch of its
socket - this is the correct
position when attaching the
UMP!

Figure 7. Verifying Pigtail Female Connector Is Seated Properly

UMP
UMP200U20-2
Kit
Alignment dowel
Insert the positioning dowel
on the UMP in this hole
