Figure 30. Packer-To-Manifold Wiring Connectors - Red Jacket Quick-Set VSFC Submersible Turbine Pump Installation, Service, & Parts Lists

Service And Repair
Male connector's
indexing pin
Male connector
Male connector's
retaining washer
Female connector
6. Use a pair of needle nose pliers to remove the retaining washer that holds the male connector in its socket.
7. Remove the male connector.
8. Get the new male connector and retaining washer from the electrical connector kit.
9. Notice the small indexing pin on the back of the male connector (see Figure 31).
10. The indexing pin on the back of the connector must seat in the index hole in the base of the male connector's
socket (see Figure 32) for the connector to be correctly oriented relative to the female connector.
11. Place a mark on the facing of the Packer using a felt pen to indicate the position of the index hole (see
Figure 32).
Wiring to UMP

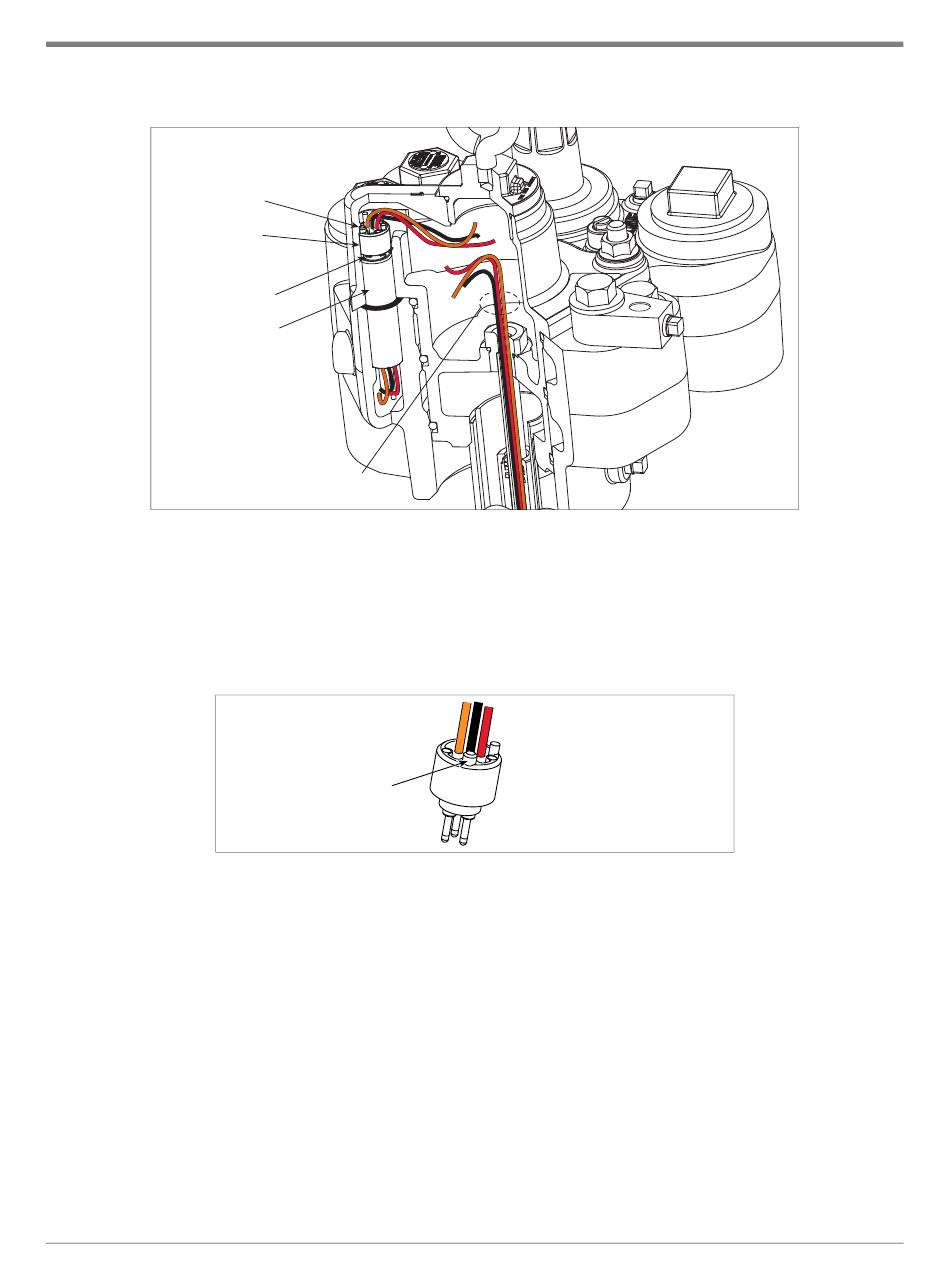

Figure 30. Packer-To-Manifold Wiring Connectors

Indexing pin
Figure 31. Male Connector's Indexing Pin
Replacing the Packer-to-Manifold Wiring Connectors
