UM0841
2
Figure 2.
Downloaded from Elcodis.com electronic components distributor

Hardware layout and configuration

The STM32100B-EVAL board is designed around a STM32F100VBT6 microcontroller in a
100-pin LQFP package.

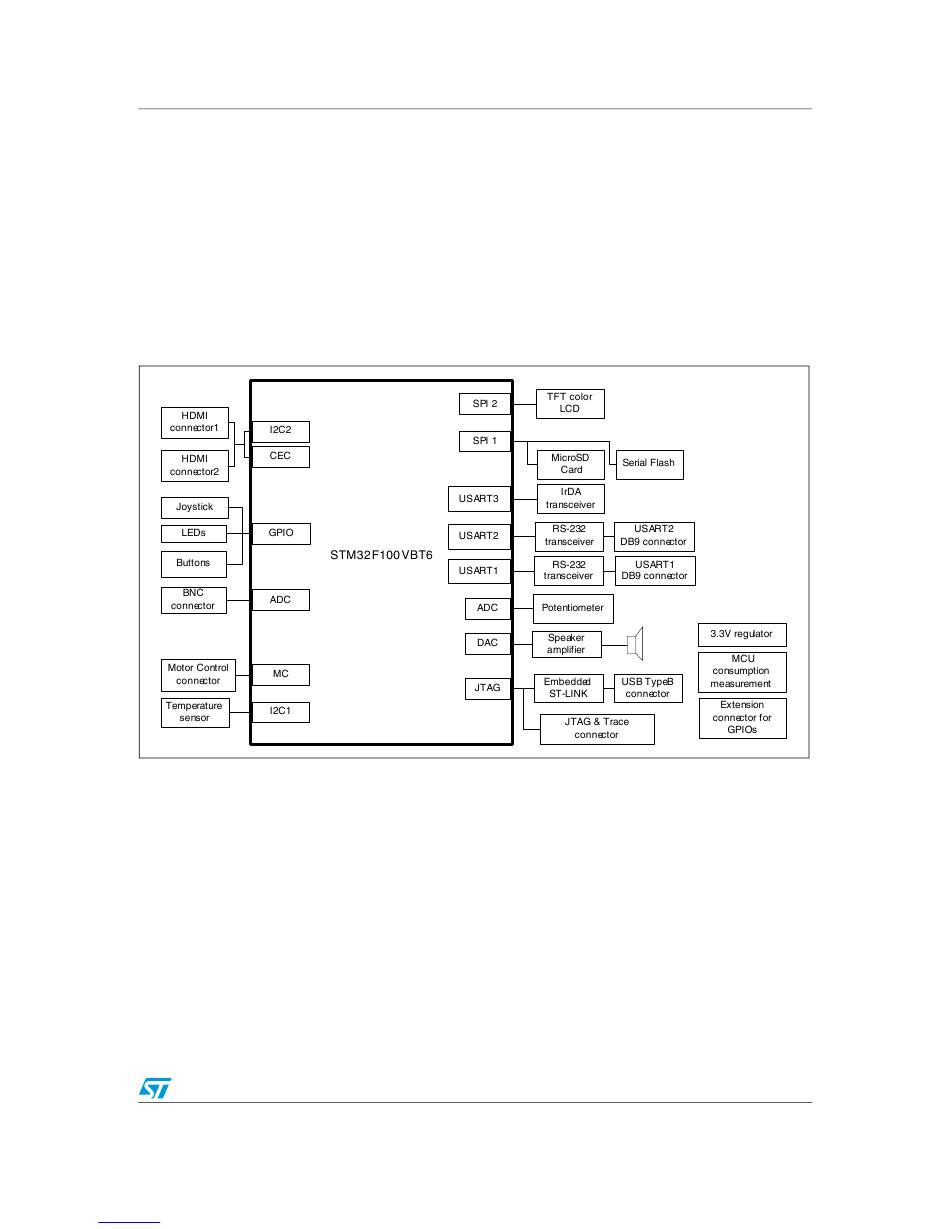

The hardware block diagram
STM32F100VBT6 microcontroller and the peripherals (LCD, SPI Flash, USART, IrDA,
speaker, HDMI CEC, temperature sensor, MicroSD Card, motor control and embedded ST-
LINK).
Figure 3 will help you locate these features on the evaluation board.
Hardware block diagram
Hardware layout and configuration
Figure 2 shows the connections between the
Doc ID 16533 Rev 2 5/41
